BMW E92 Front Bumper Removal BY e90post.comís AU335

http://www.e90post.com/forums/showpost.php?p=1323789&postcount=1













Tools
1.
8mm Socket
2. T30 Torx Driver


Required Screws that hold the bumper on.




Step 1:
Remove 4 T30 Screws





Step 2:

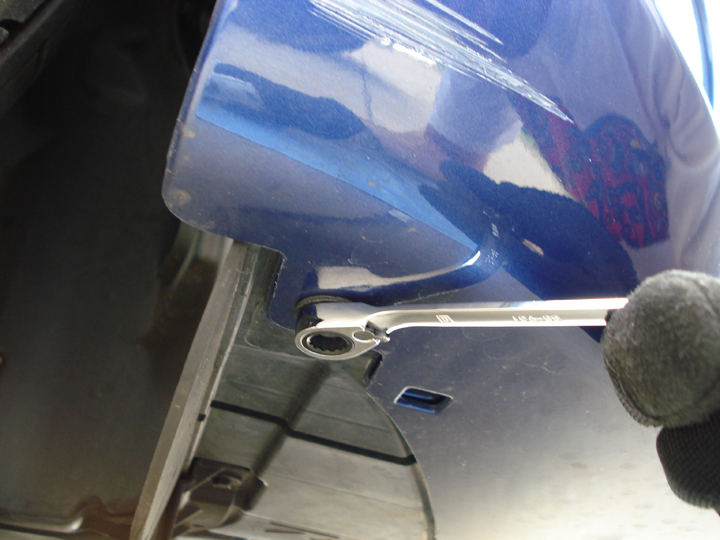

Remove 7 8mm Screws under the bumper (You will have 9 screws if you dont have the Aero Lip)



Step 3:

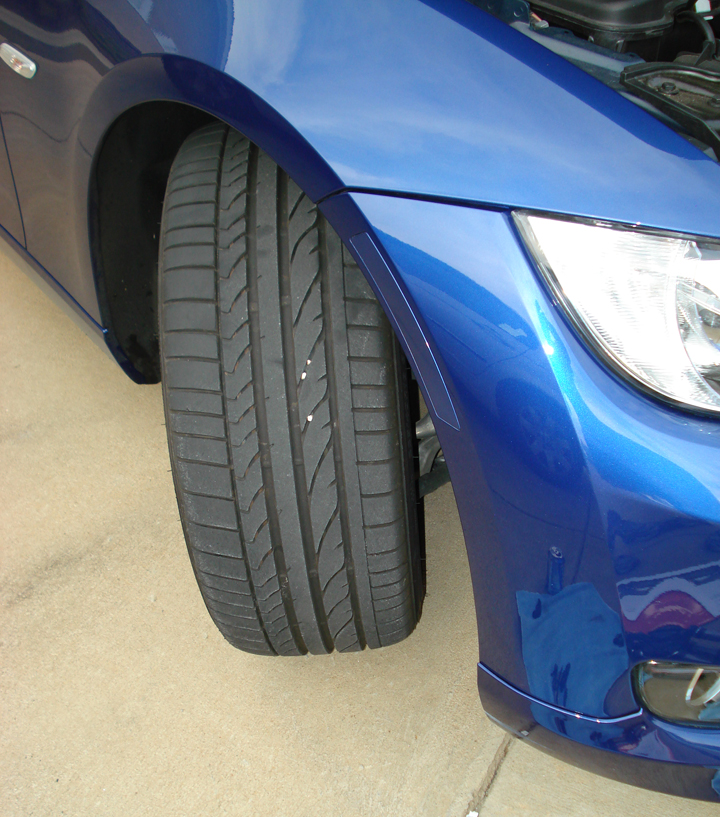

Turn Wheels to the Left

Step 4:

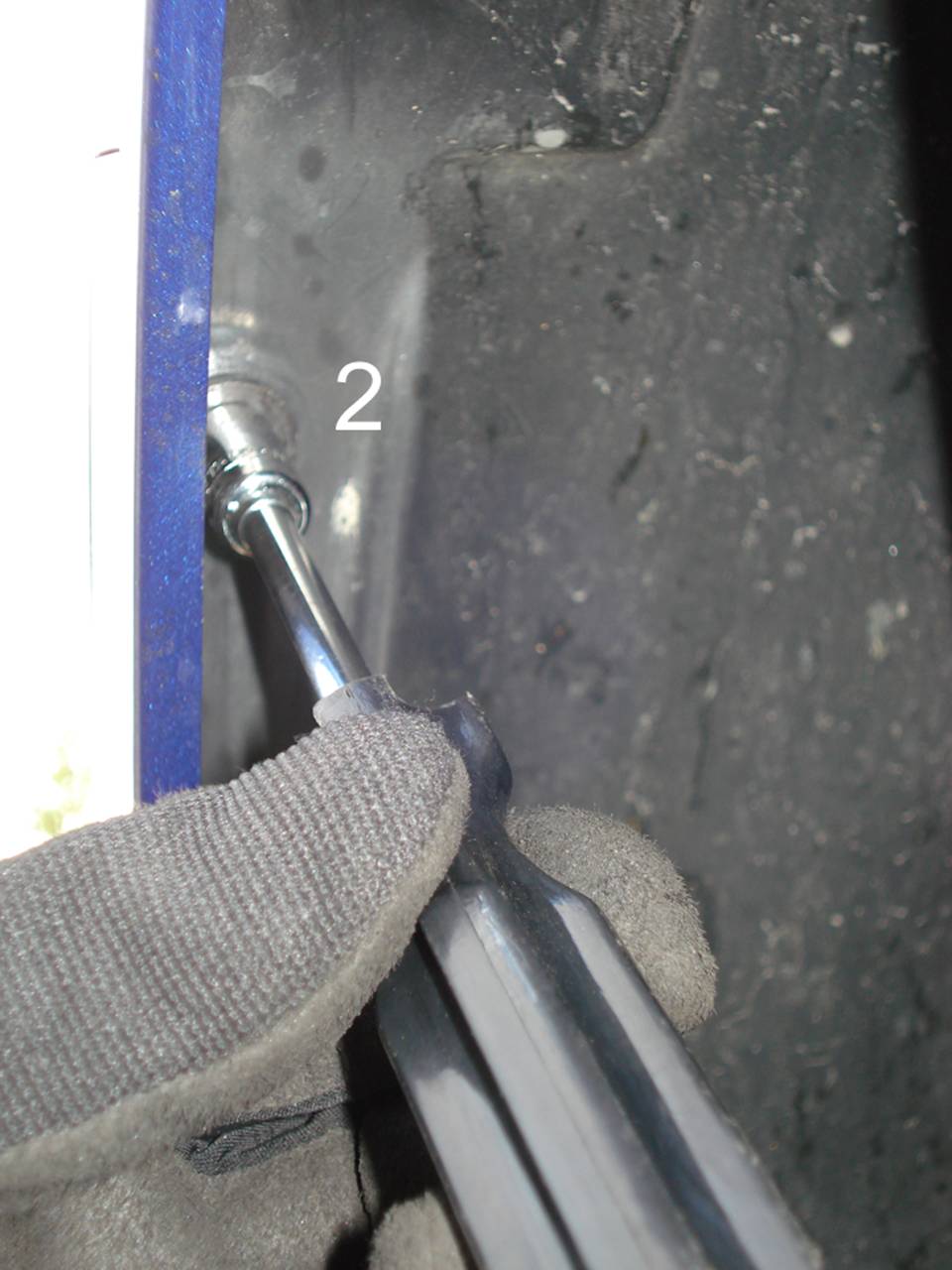

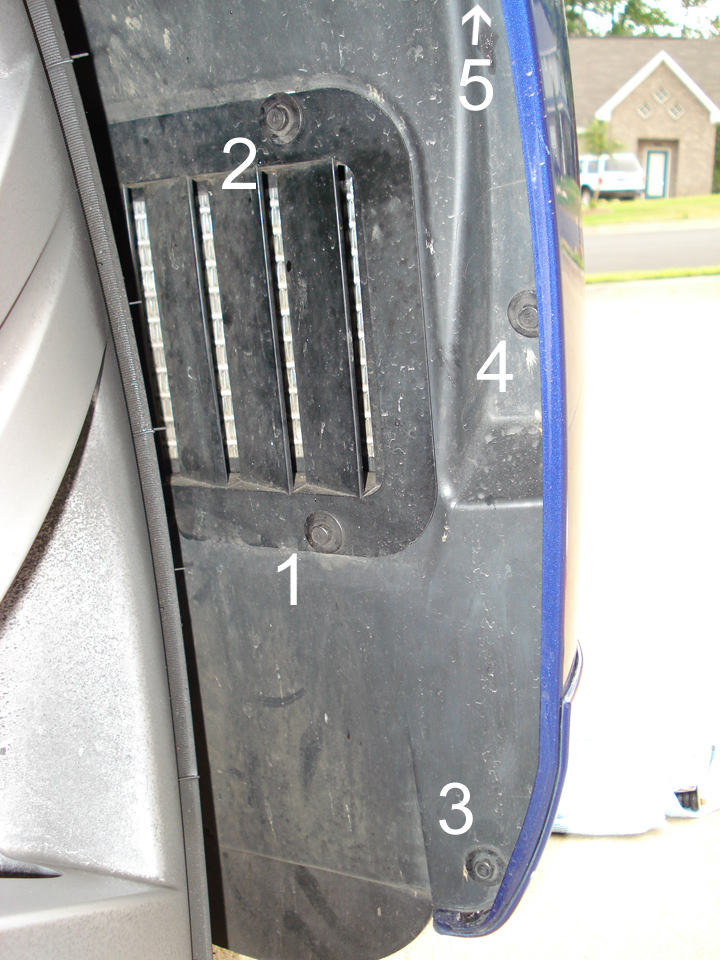

Remove 5 8mm Screws in Right Fender Arc



Step 5:

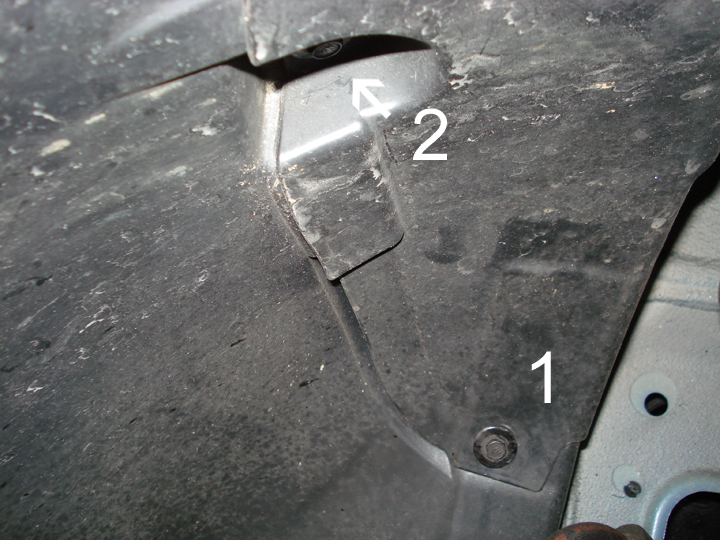

Remove 2 8mm Screws in Left Fender Arc



Step 6:
Turn wheels to the Right



Step 7:
Remove 4 8mm Screws from Left Fender Arc









Step 8:
Remove 5 8mm Screws from Right Fender Arc





Step 9:

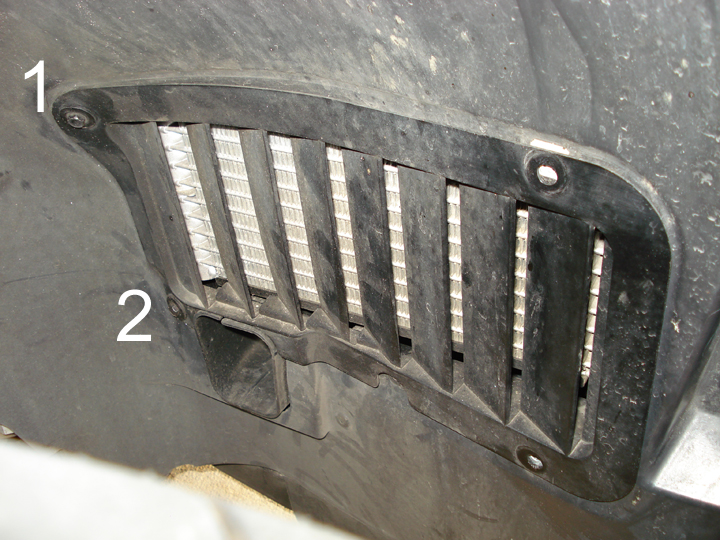

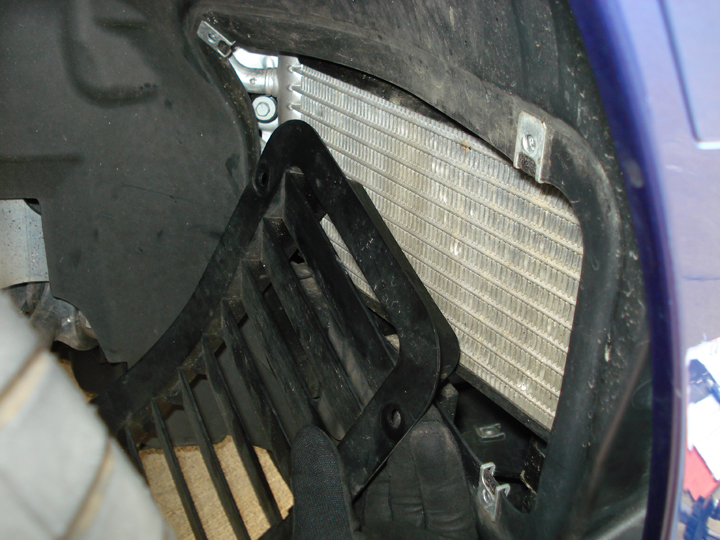

Remove Oil Cooler Backing



Step 10:

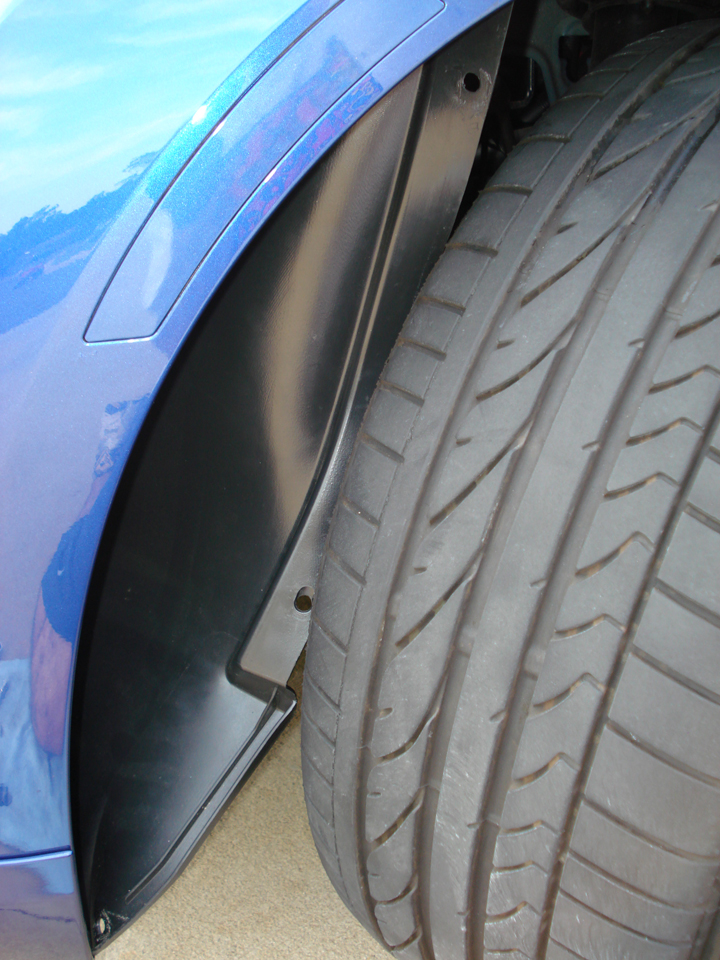

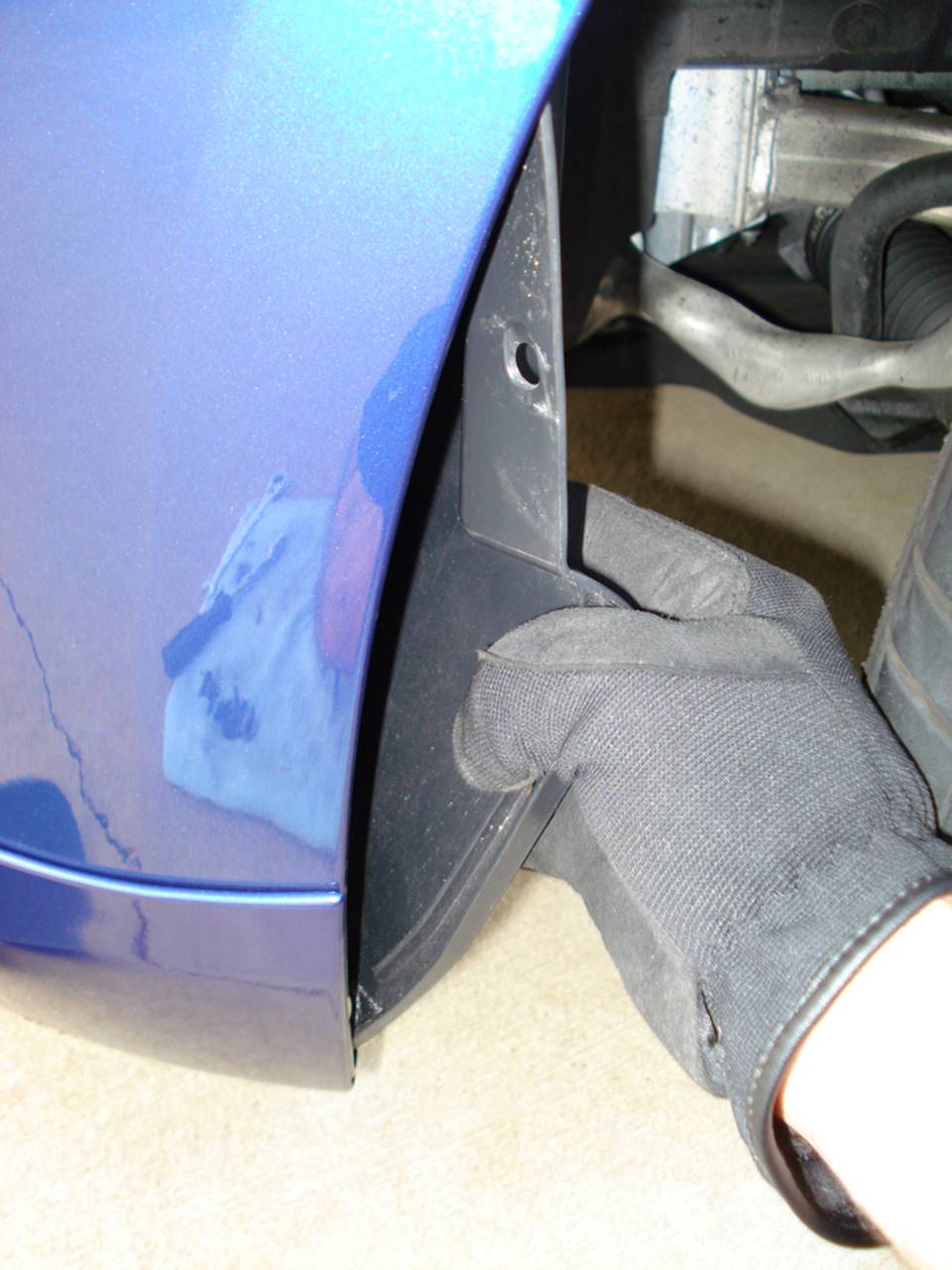

Pull back on Fender Lining and Use the tire to hold it back.





Step 11:

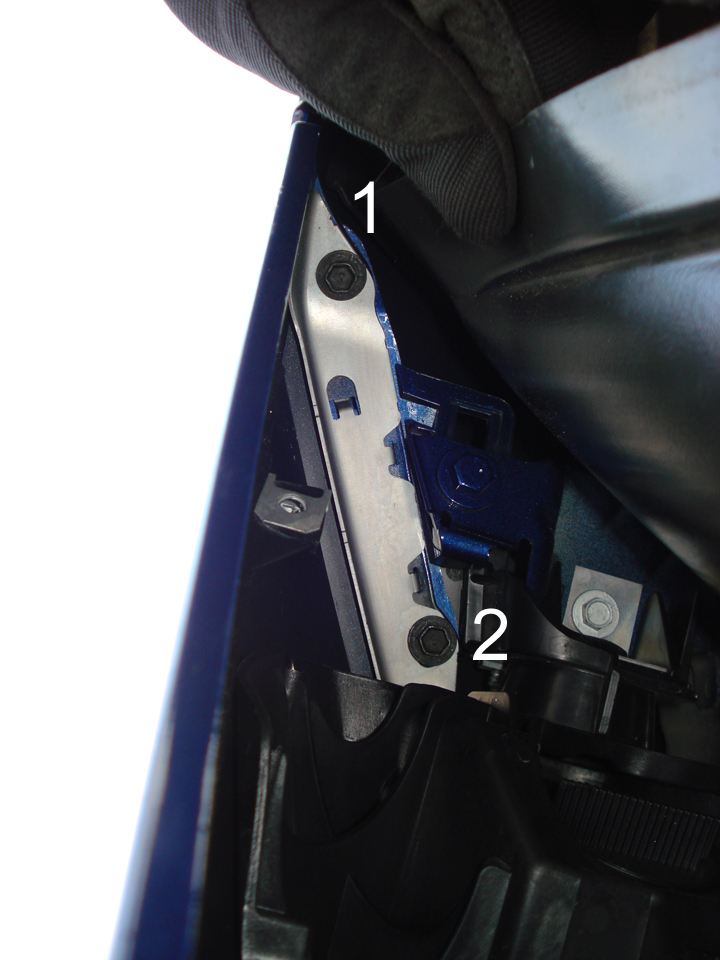

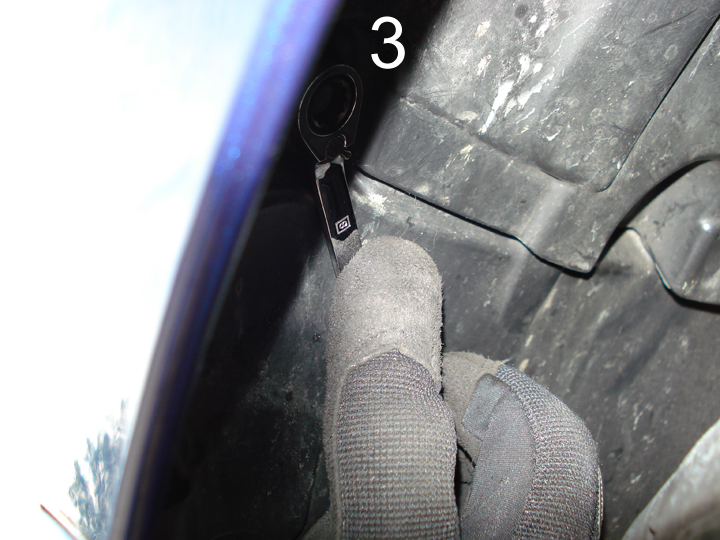

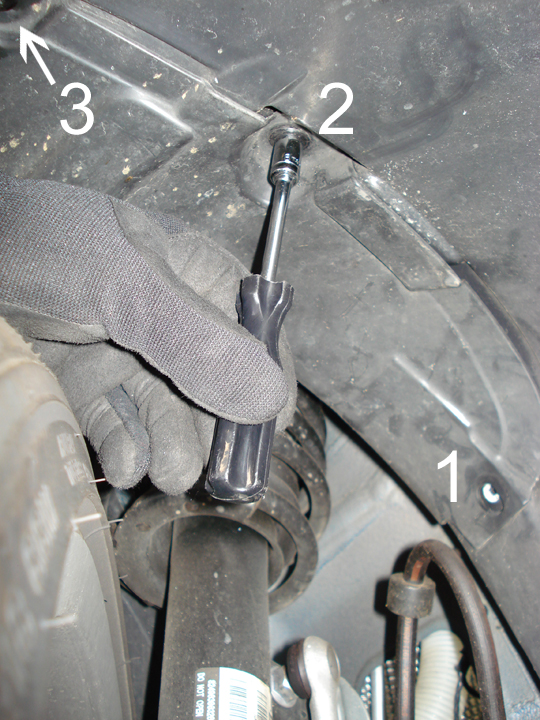

Remove 2 8mm Screws located behind the lining towards the top of the Right Fender Arc







Step 12:
Turn Wheels to the Left

Step 13:

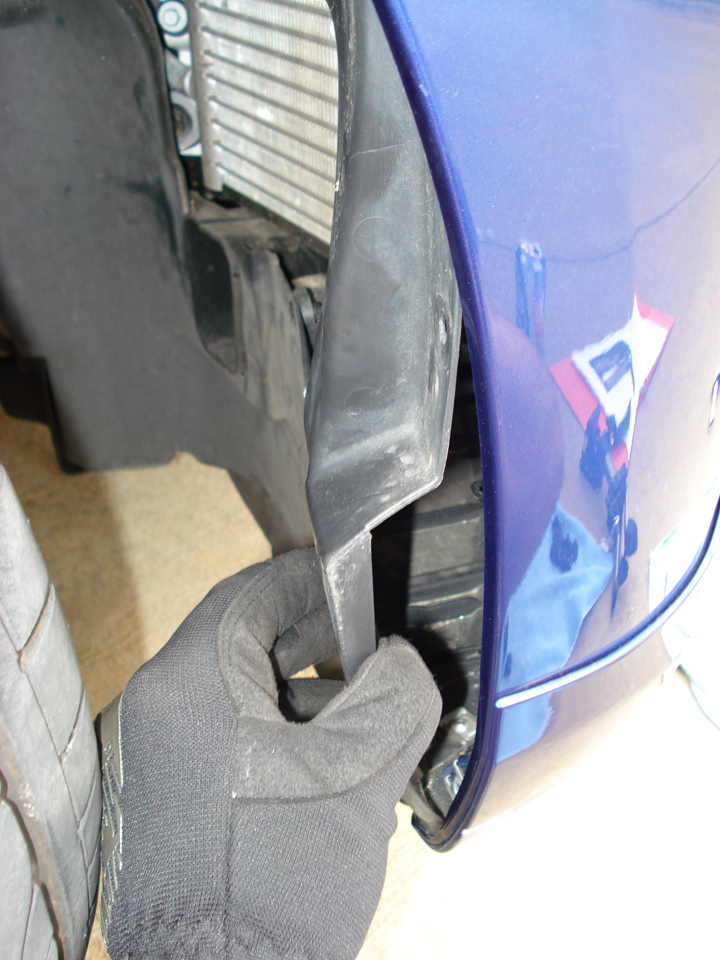

Pull back fender lining of Left Fender Arc and use the tire to hold it back.





Step 14:

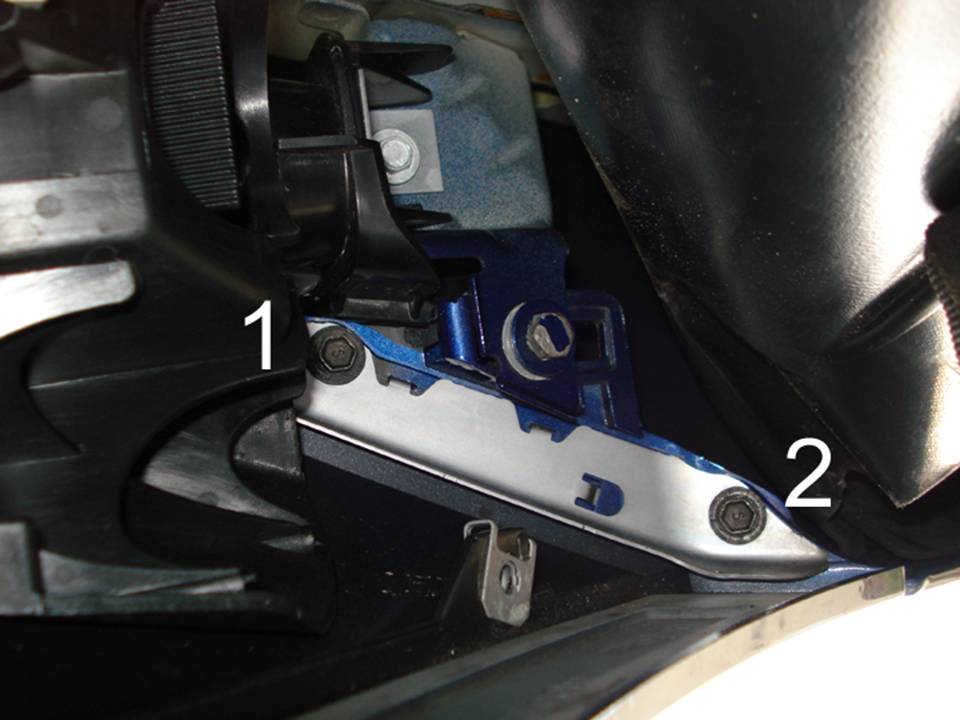

Remove 2 8mm Screws located behind the lining towards the top of the Left Fender Arc





Step 15:
Unclip Foglight housing cables from both right and left sides.



Step 16:

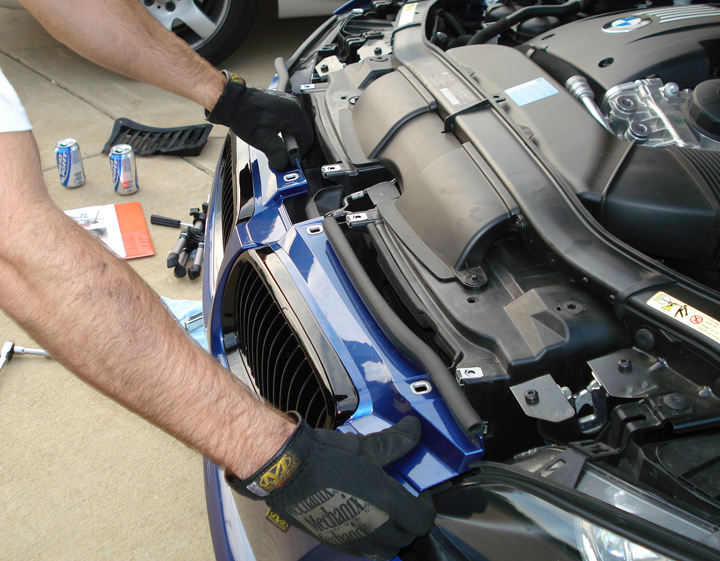

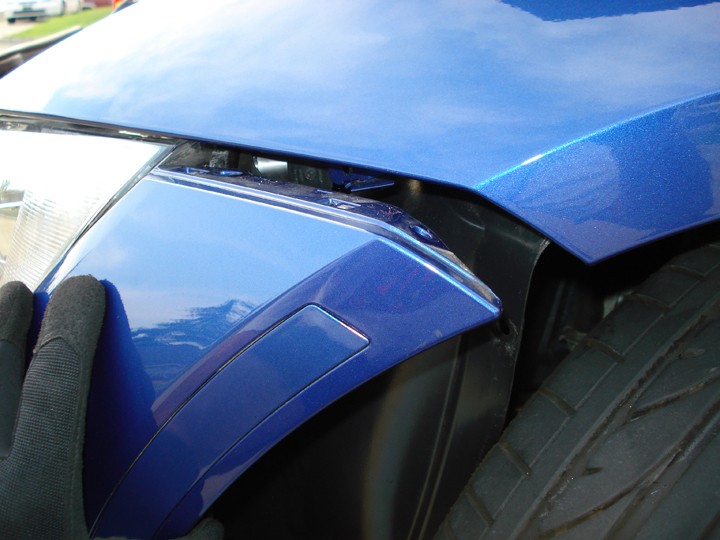

Unclip bumper and pull off .







Congrats!!! You have now removed your bumper.
