This 2021 Jaguar F-Type R P575 (X152) was purchased from Tom Wood Volvo/Land Rover/Jaguar Indianapolis, sales consultant Nate Sell.
Jaguar decided to go all electric by 2025, as a result F-Type production ended in 2024. We really enjoy the V8 in my wife's Land Rover Defender, so I decided I needed one as well but in Jaguar form- same motor but tuned a bit different. I was in Indianapolis for work when I found this car, 4 years old but like new with only 1800 miles- PPF, window tint, and ceramic coating already done and oil changed annually. 2021 was the first year of the F-Type refresh with some exterior and interior updates to the original design.

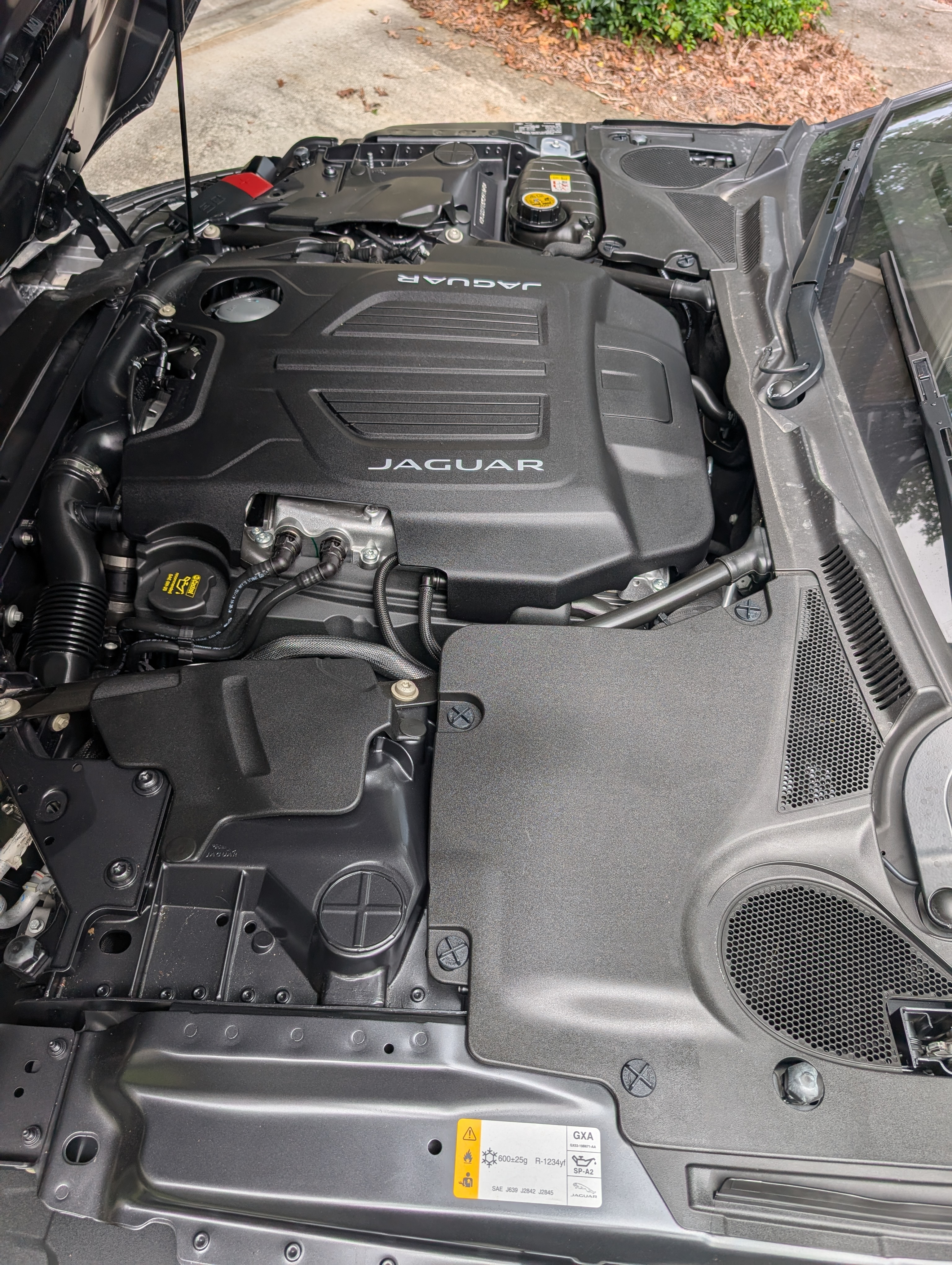

The SC V8 is the AJ133S.

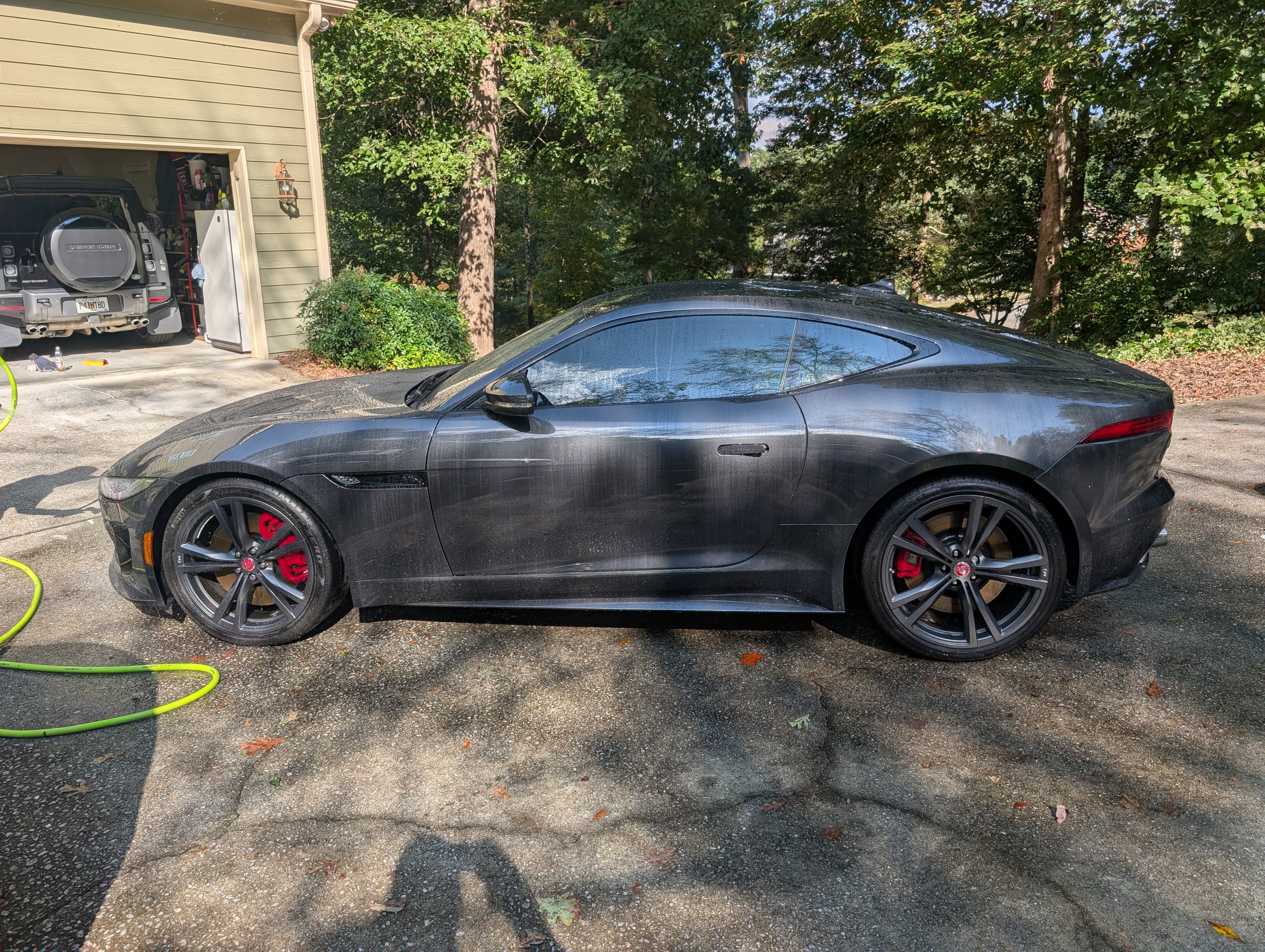

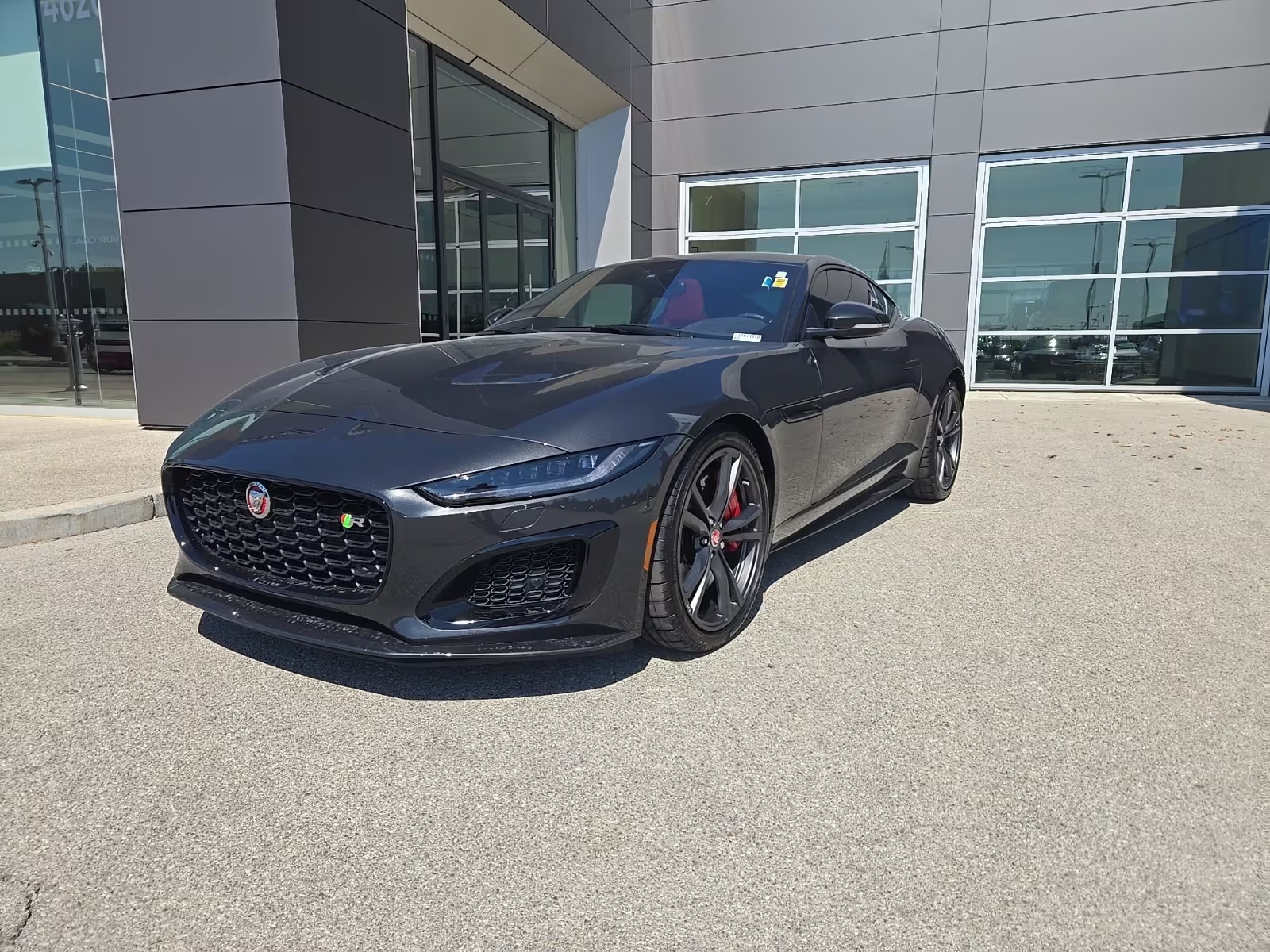

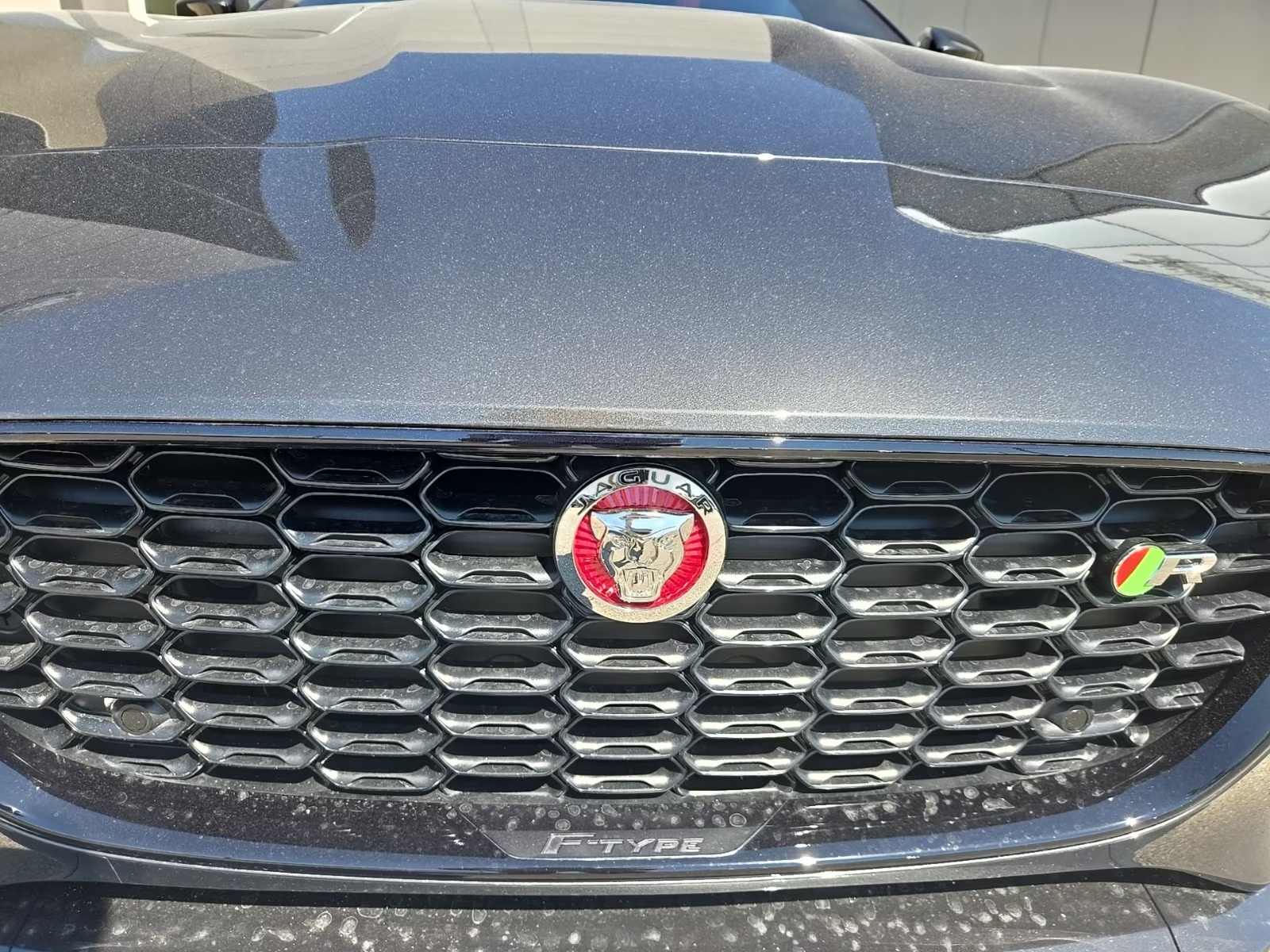

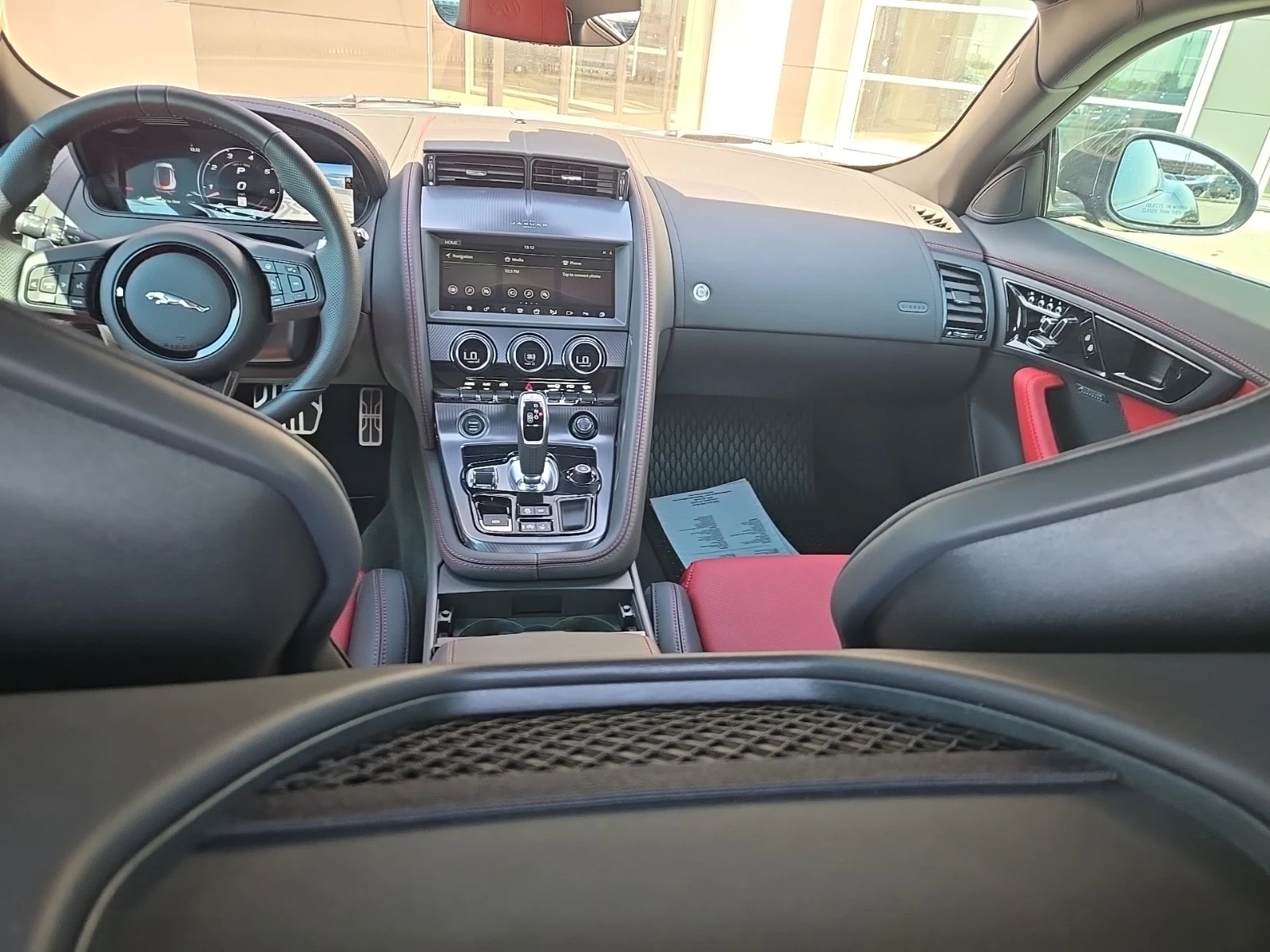

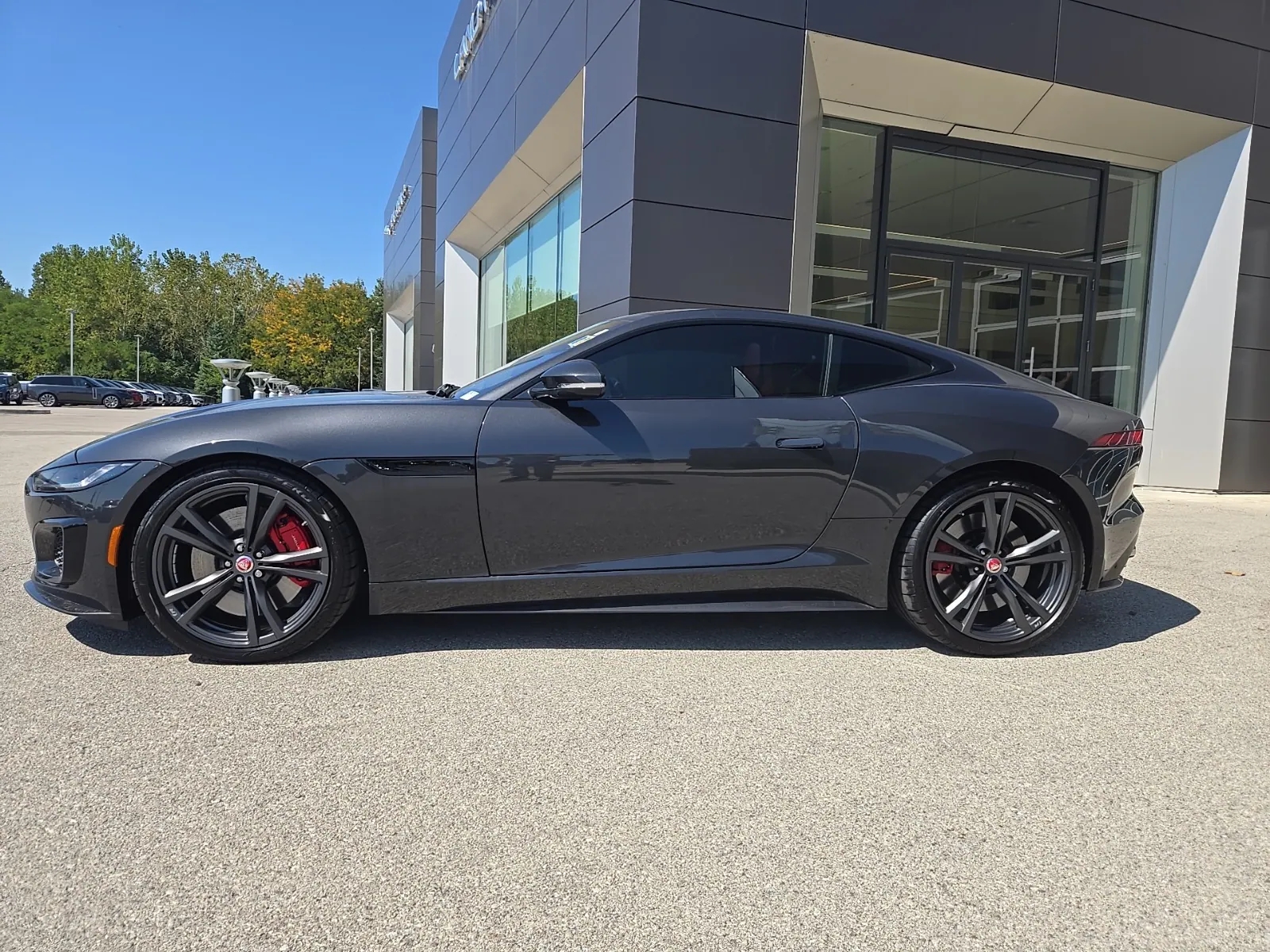

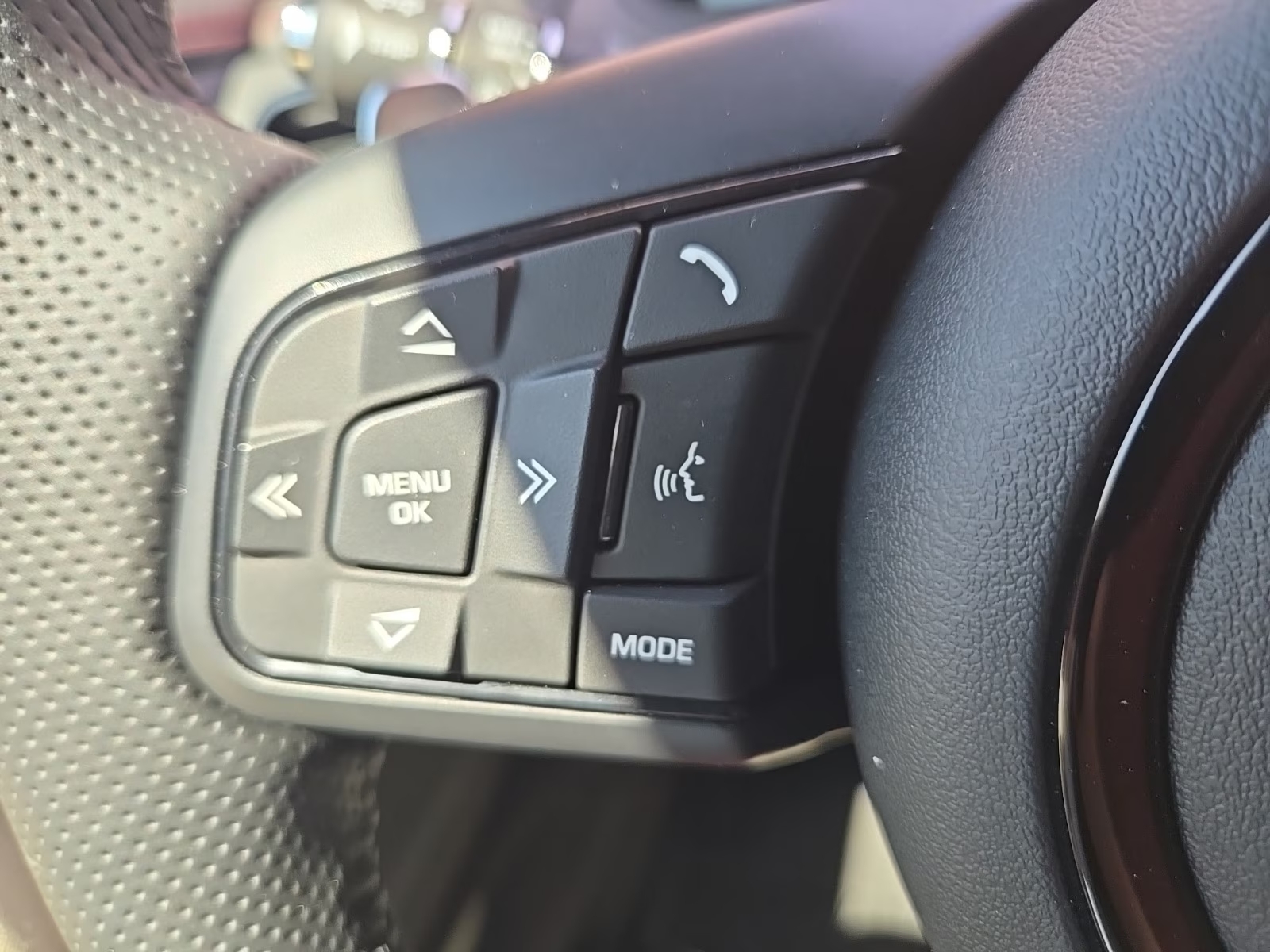

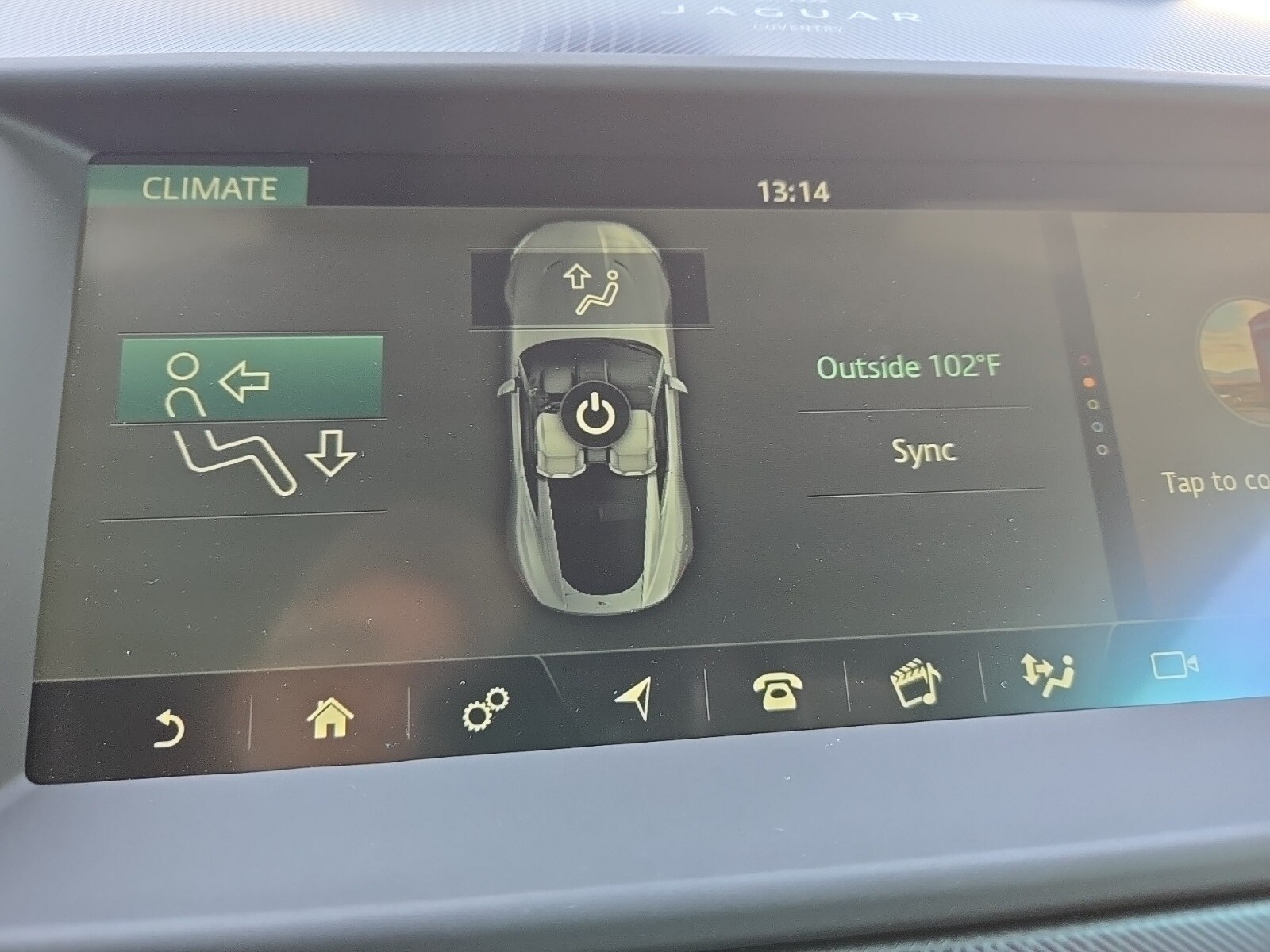

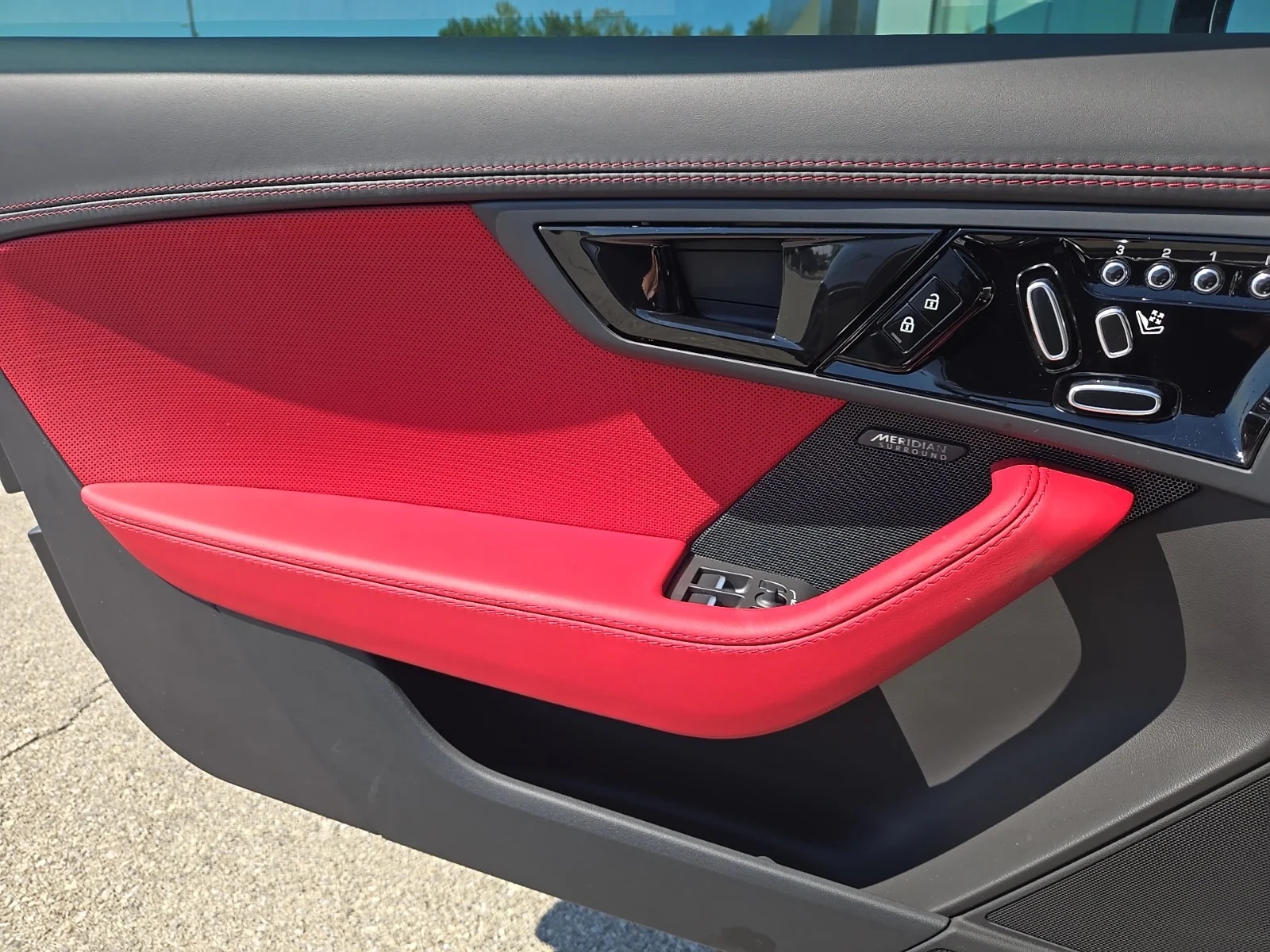

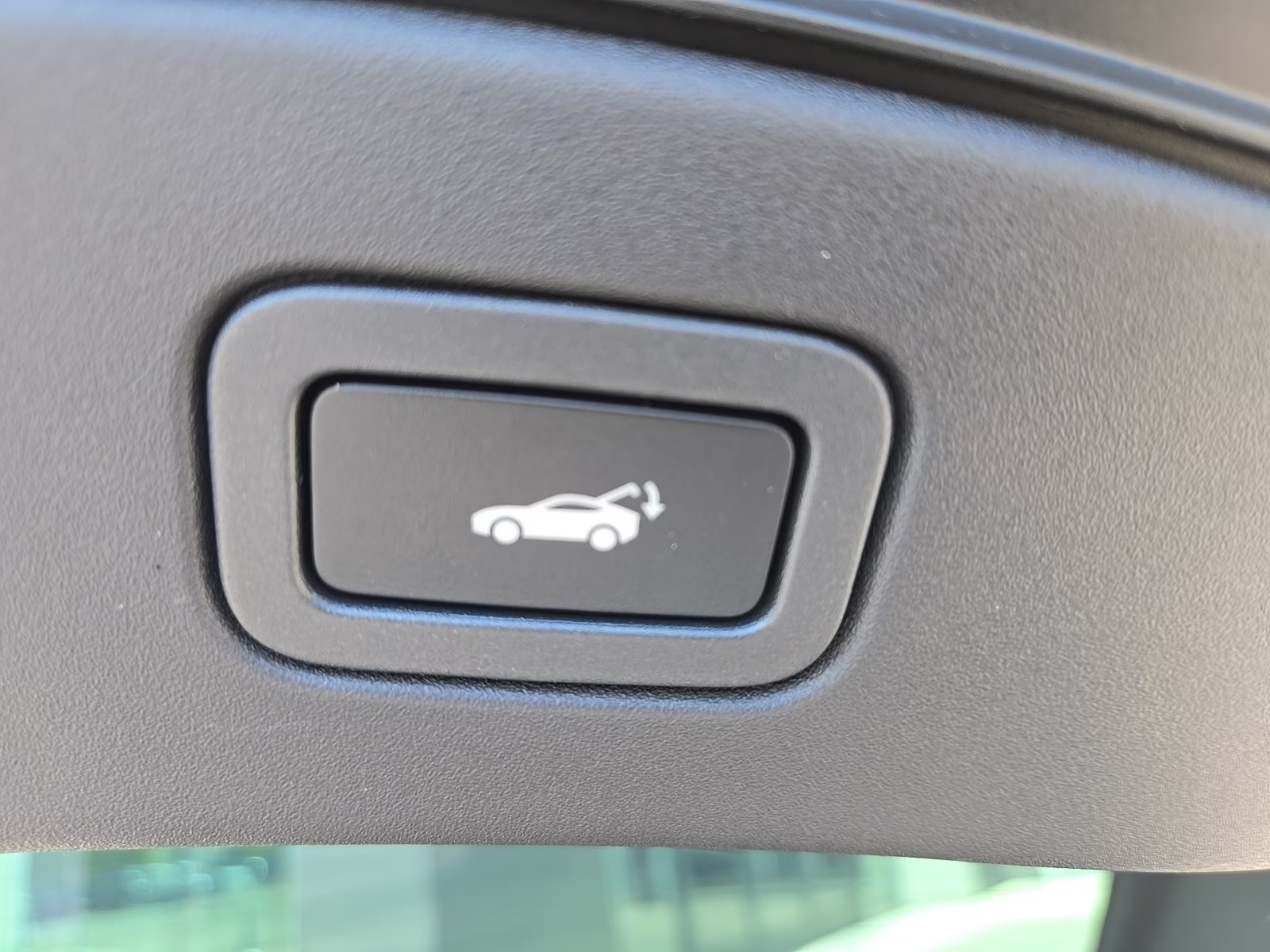

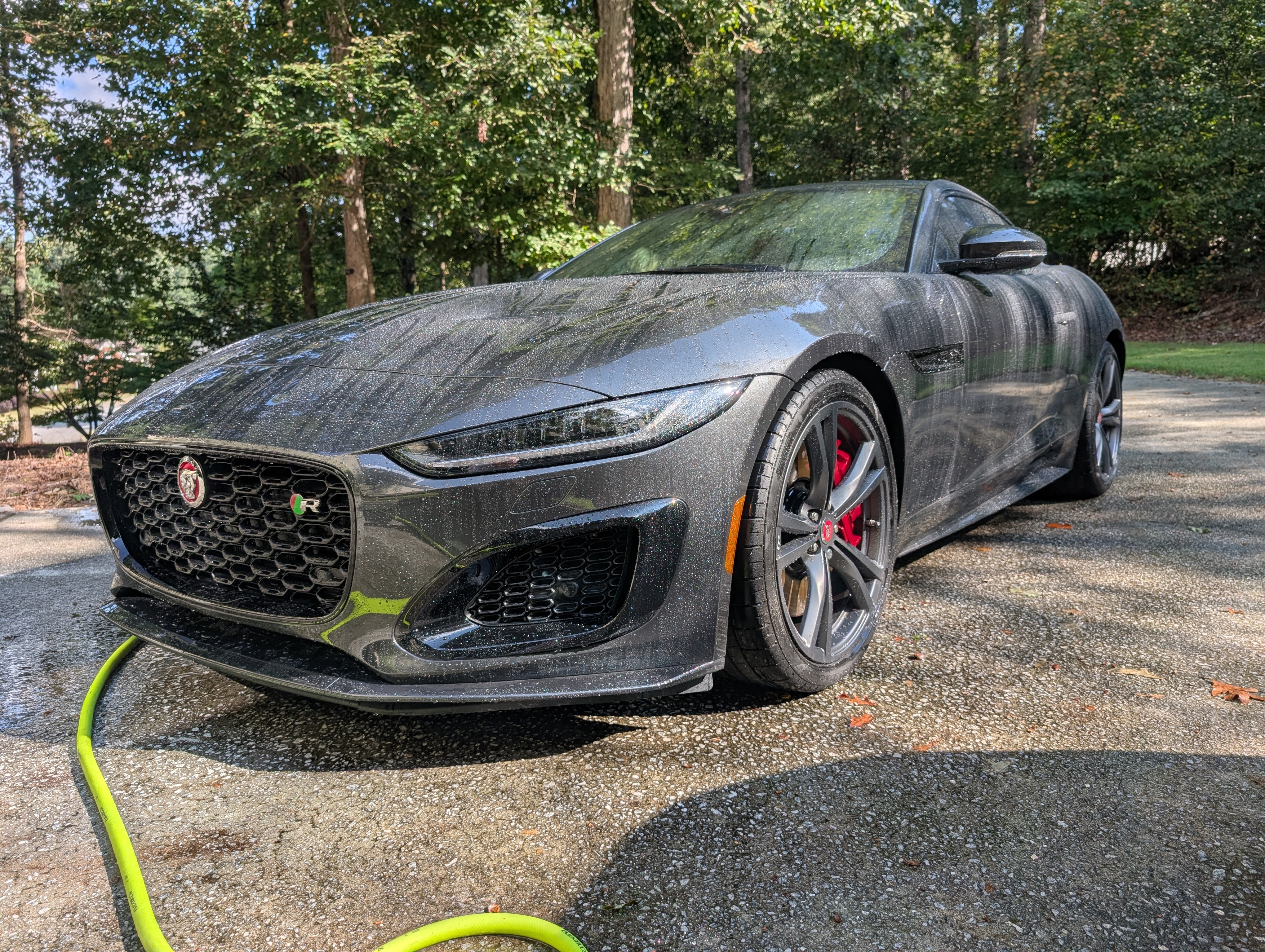

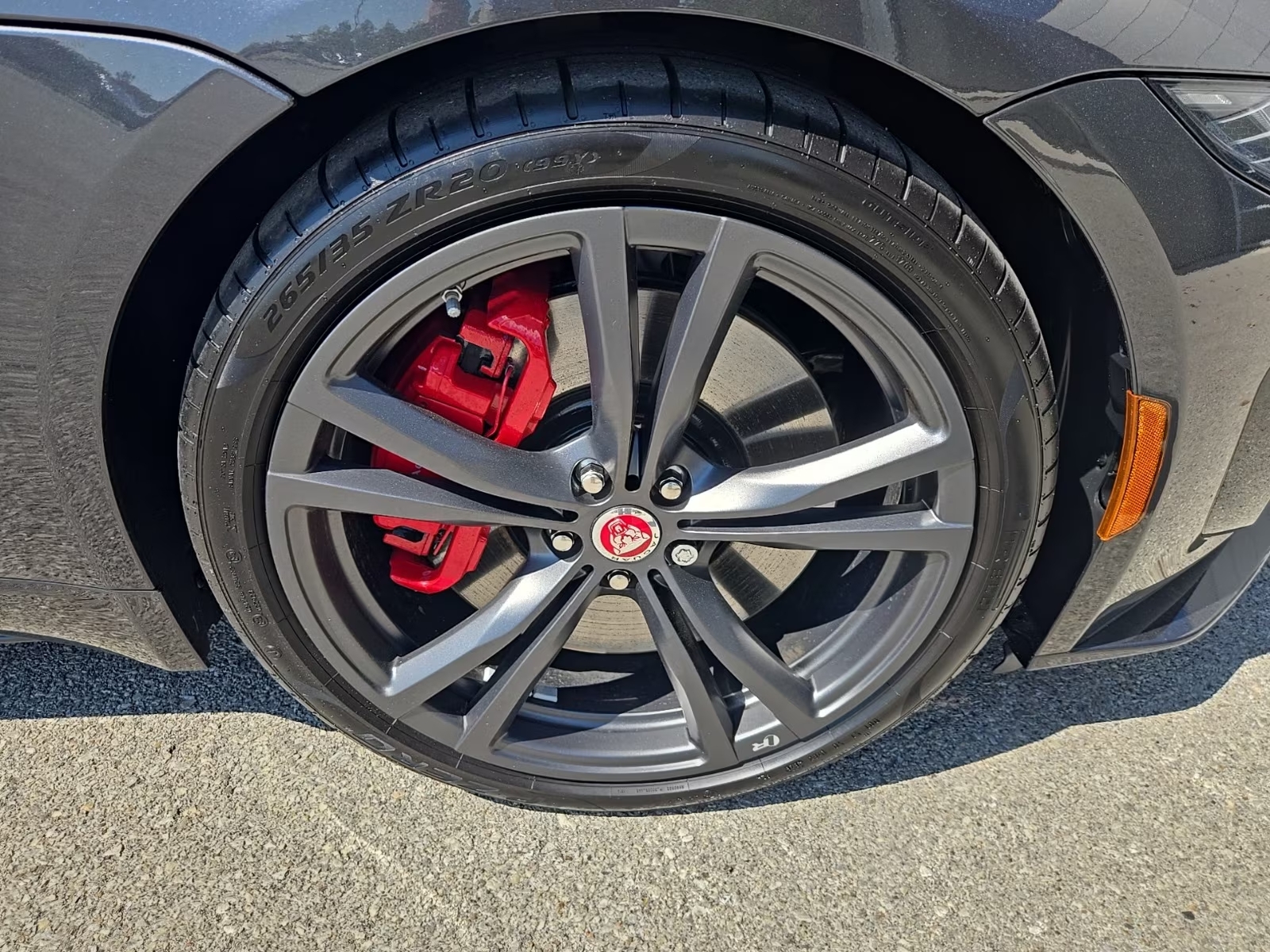

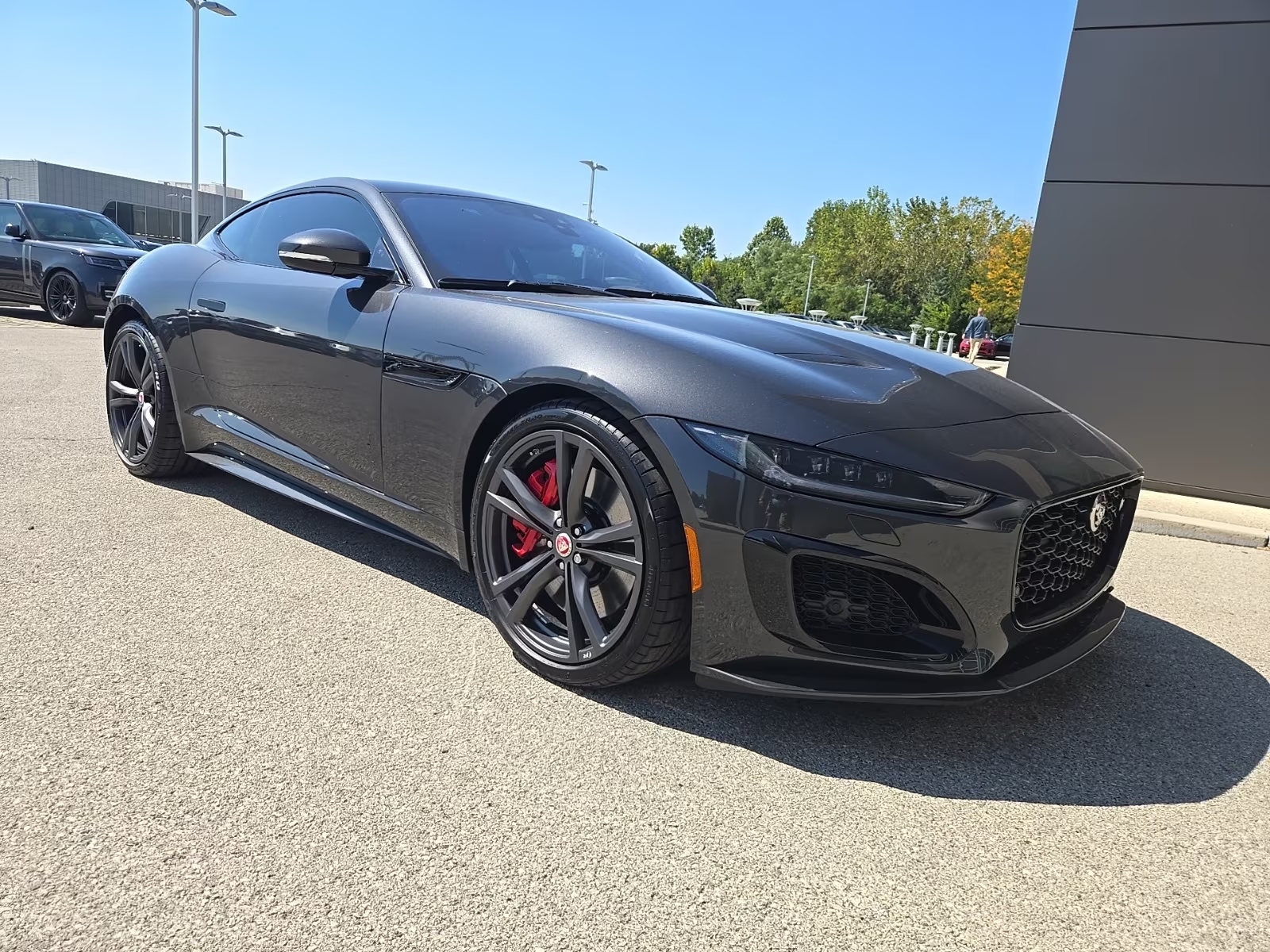

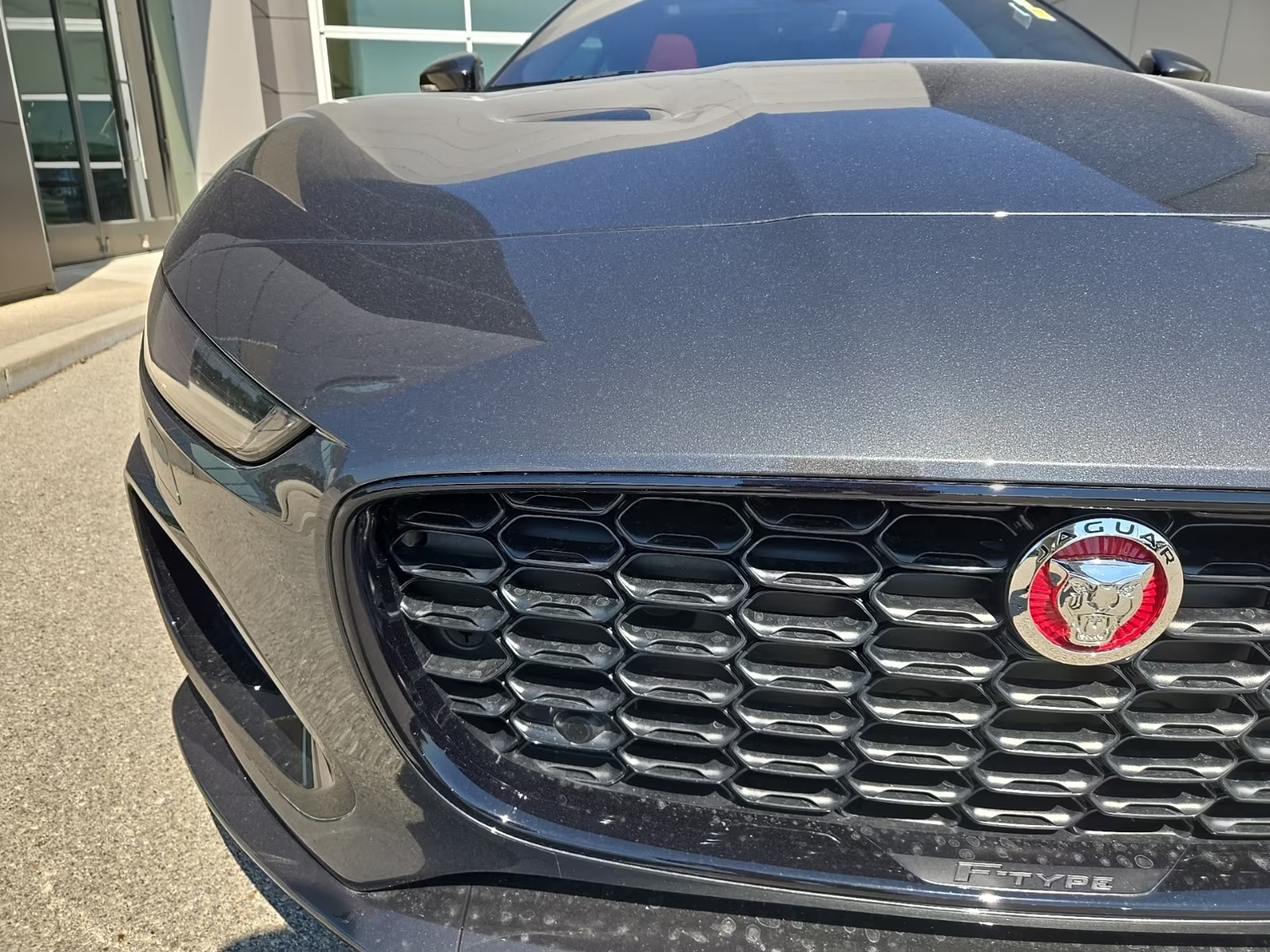

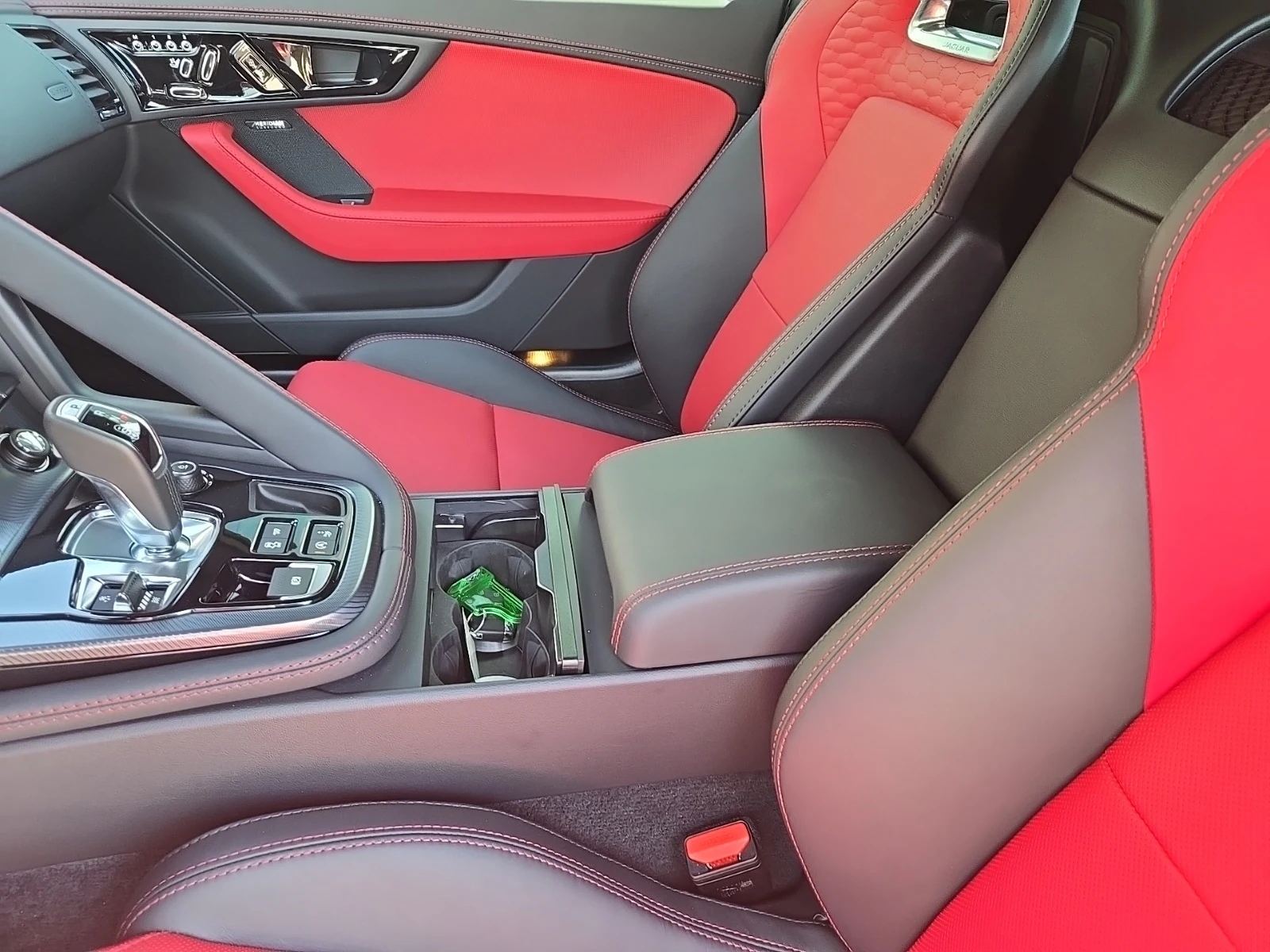

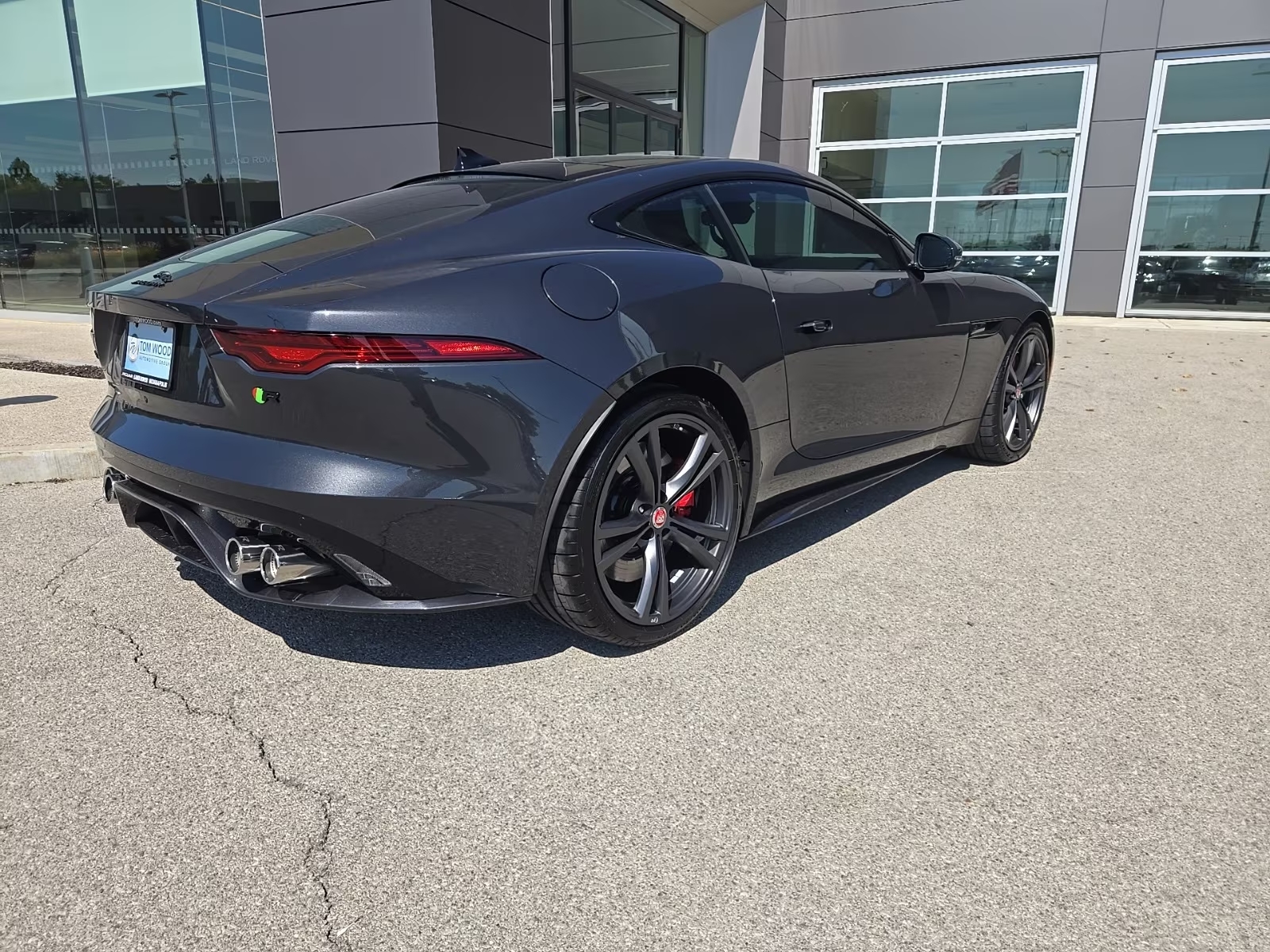

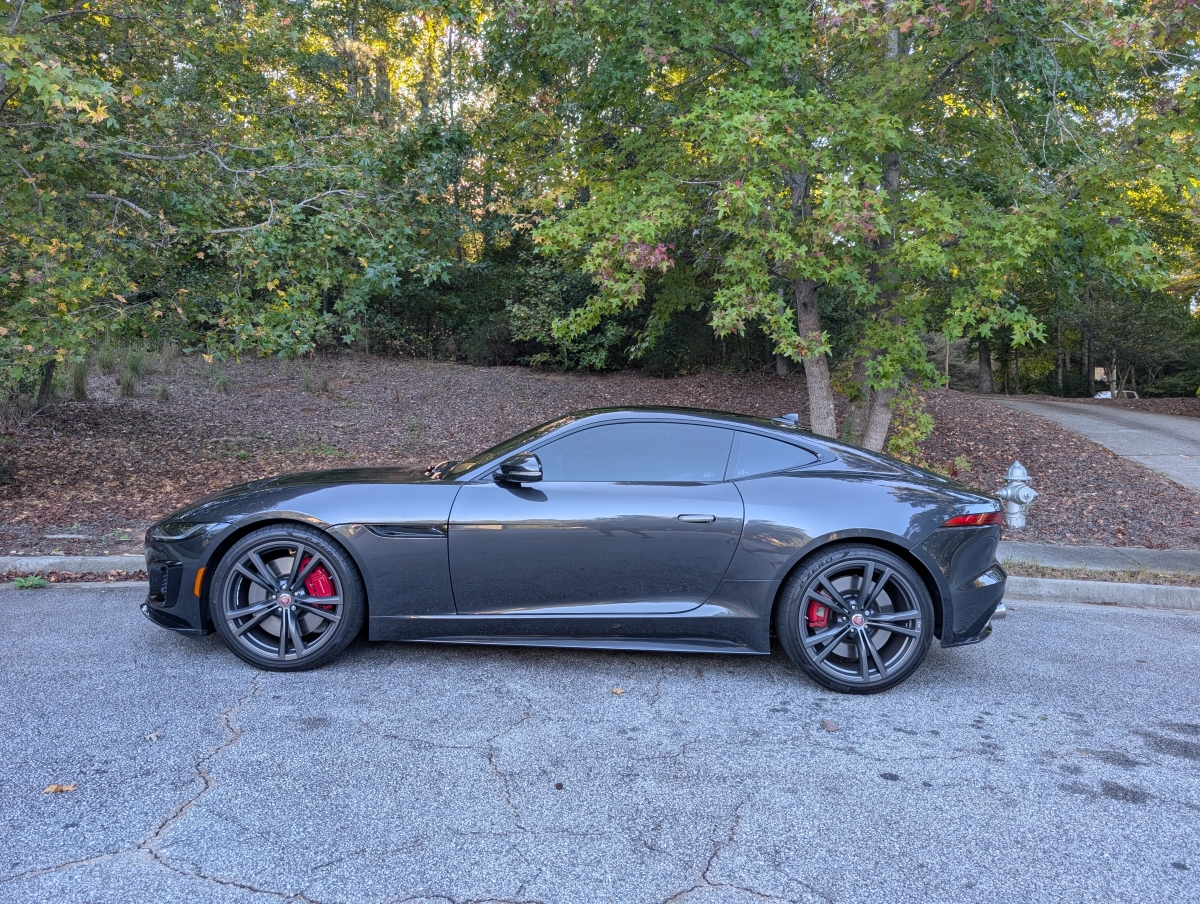

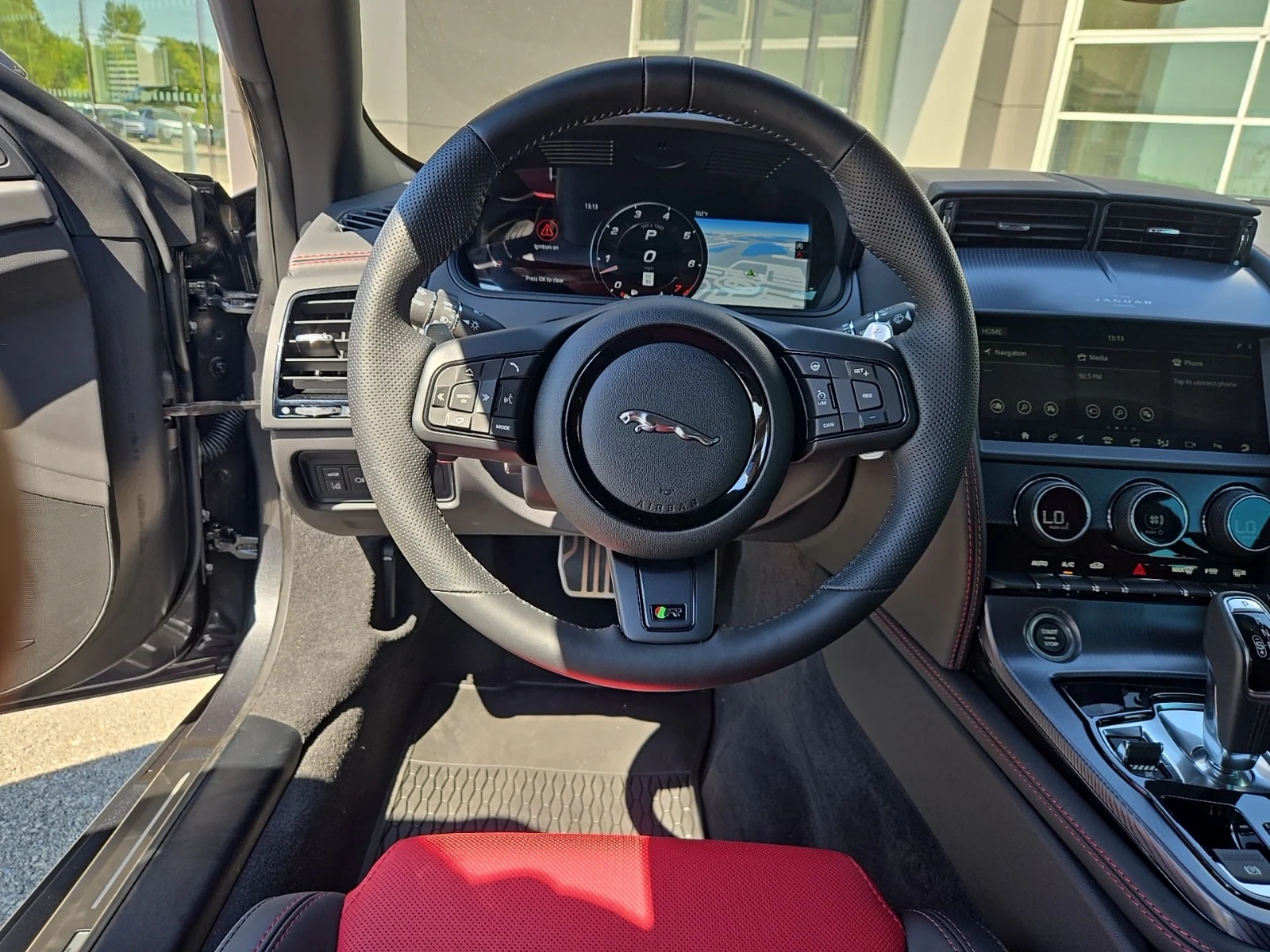

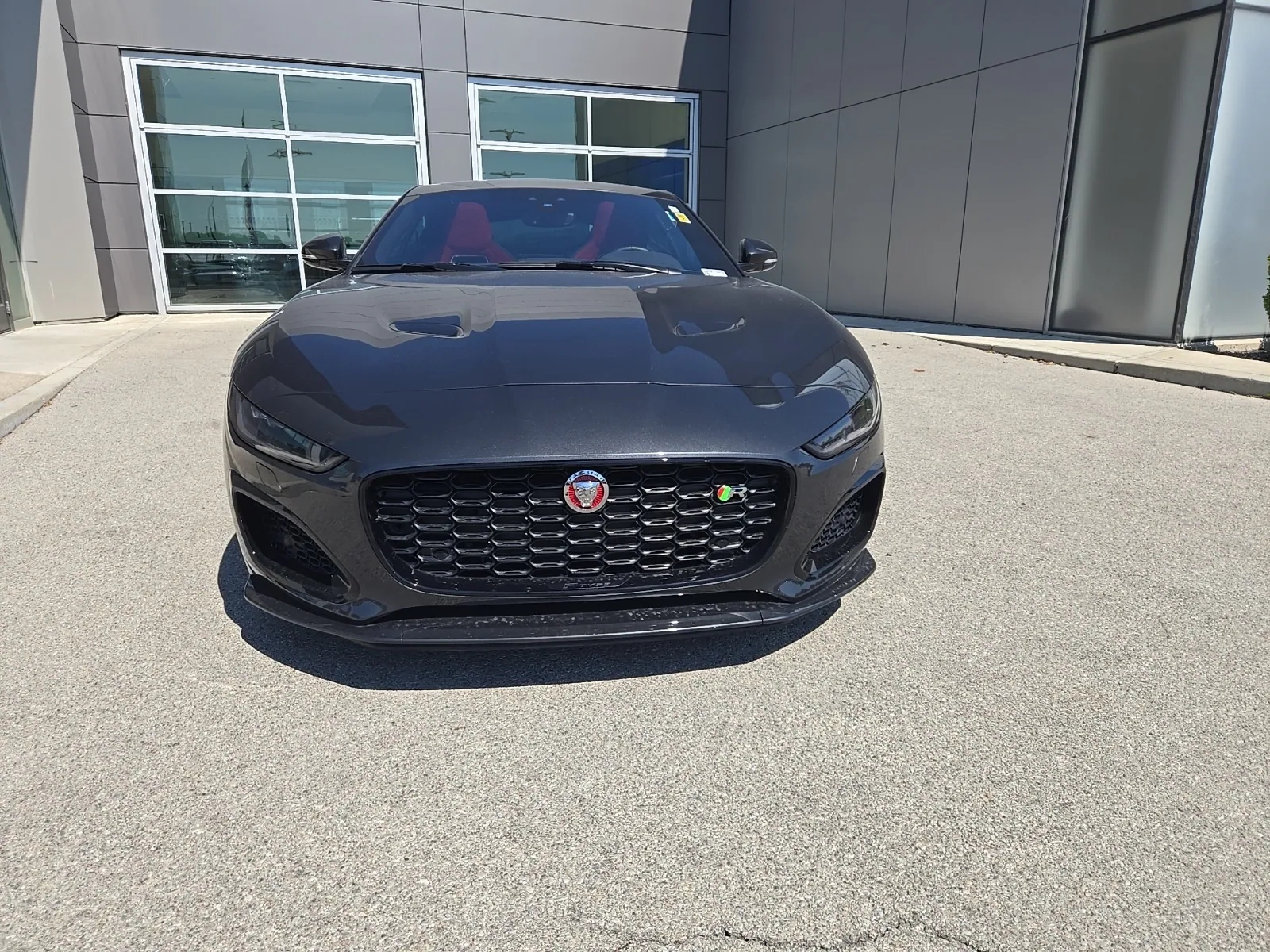

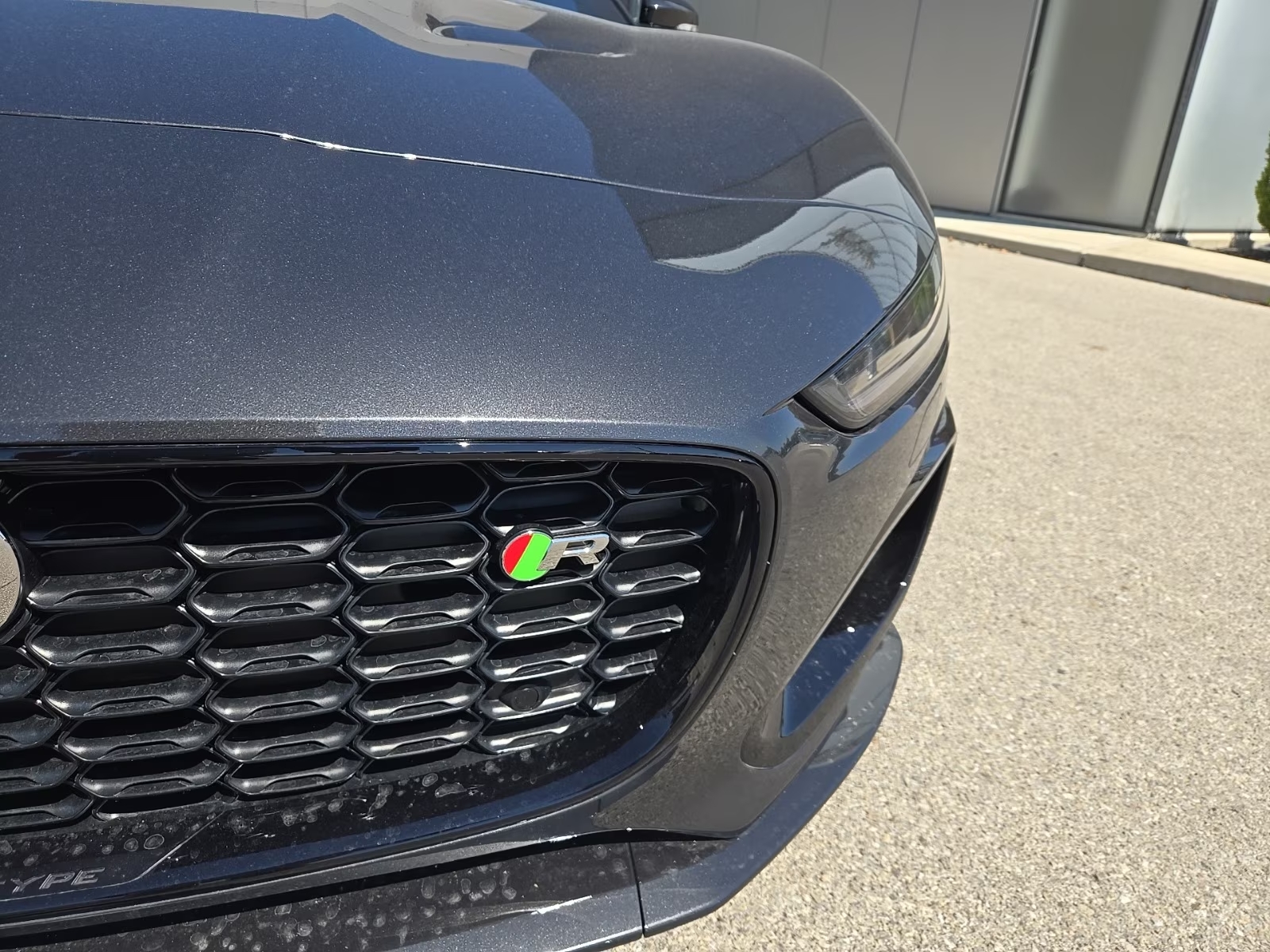

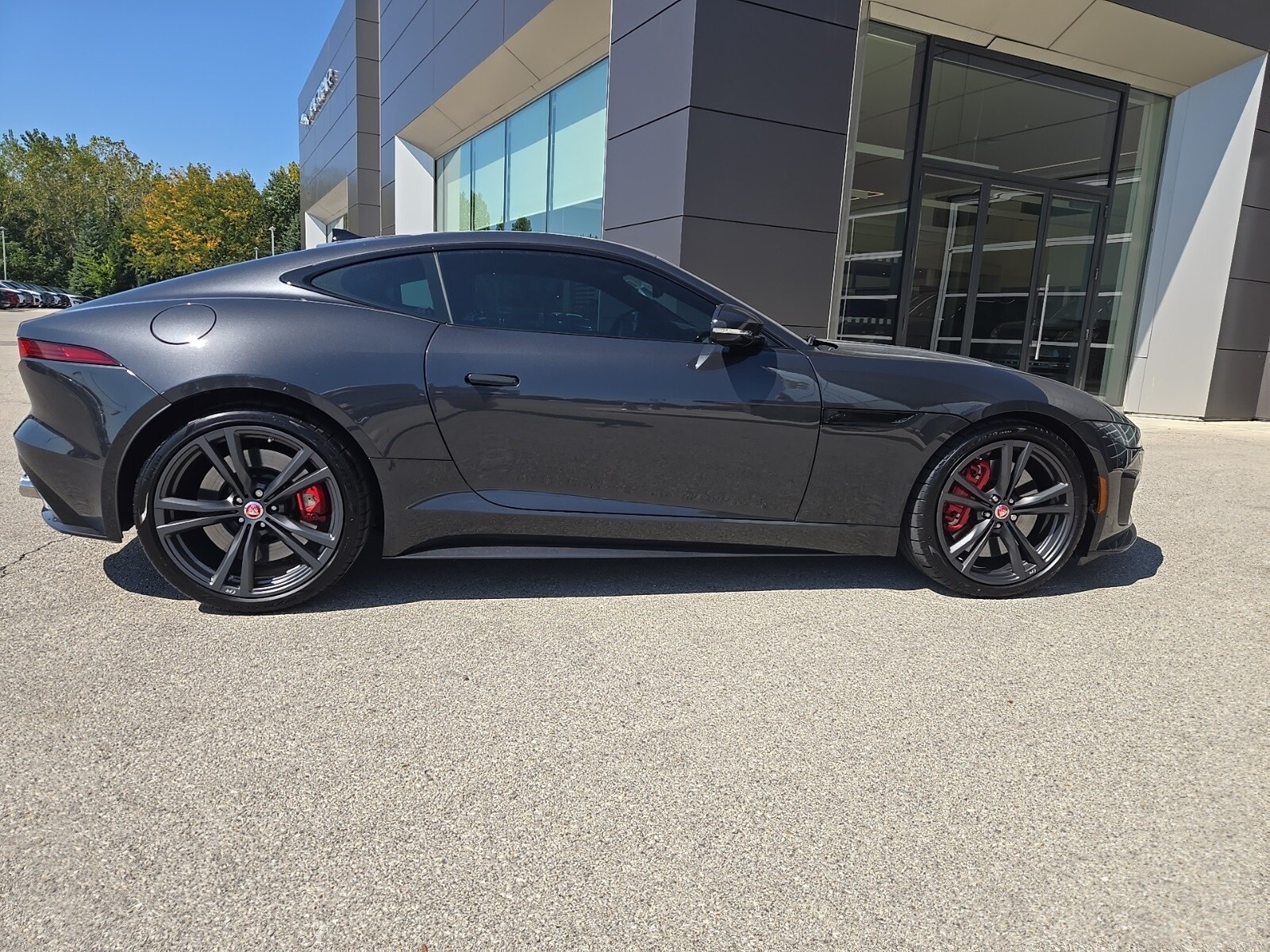

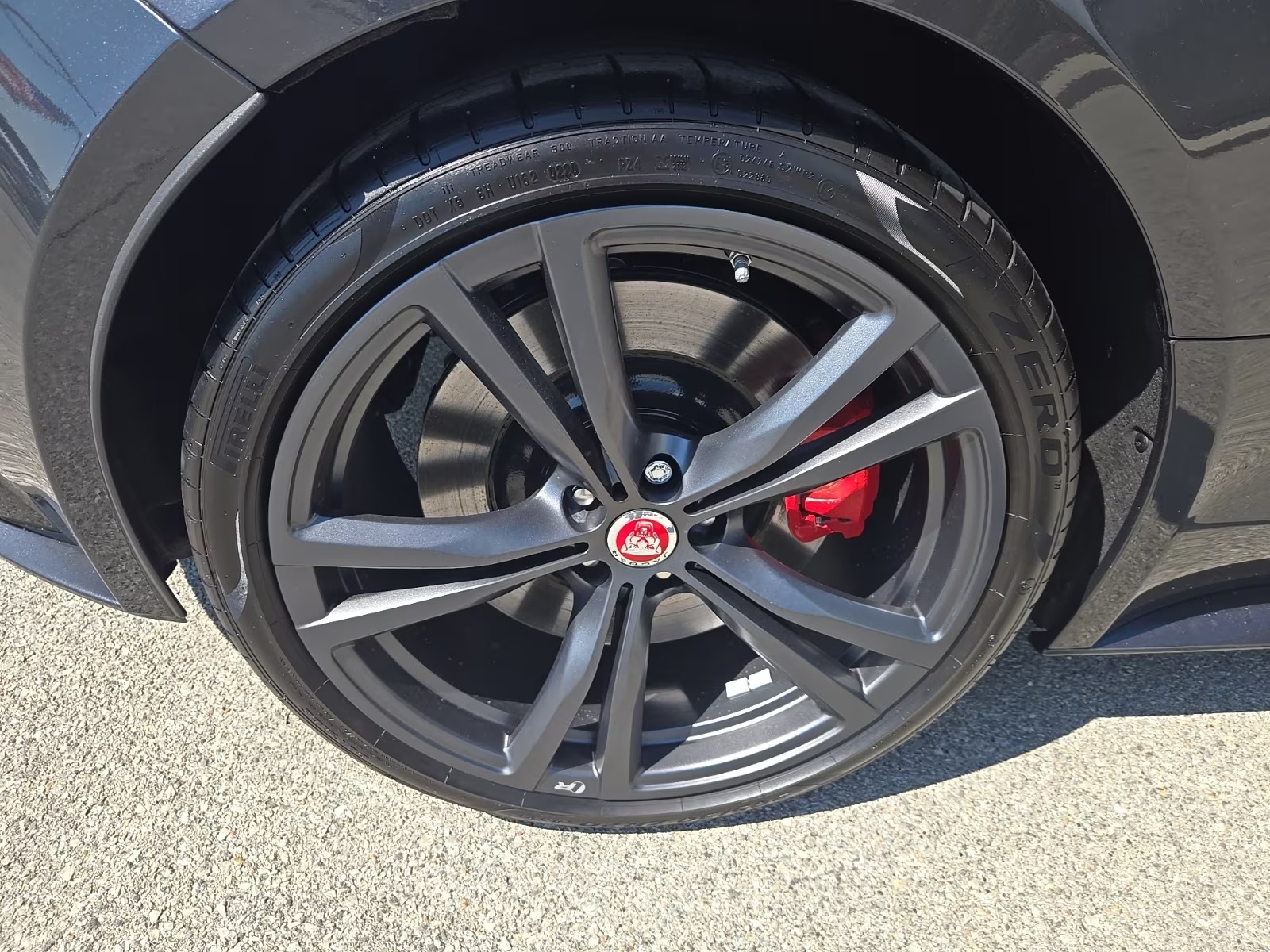

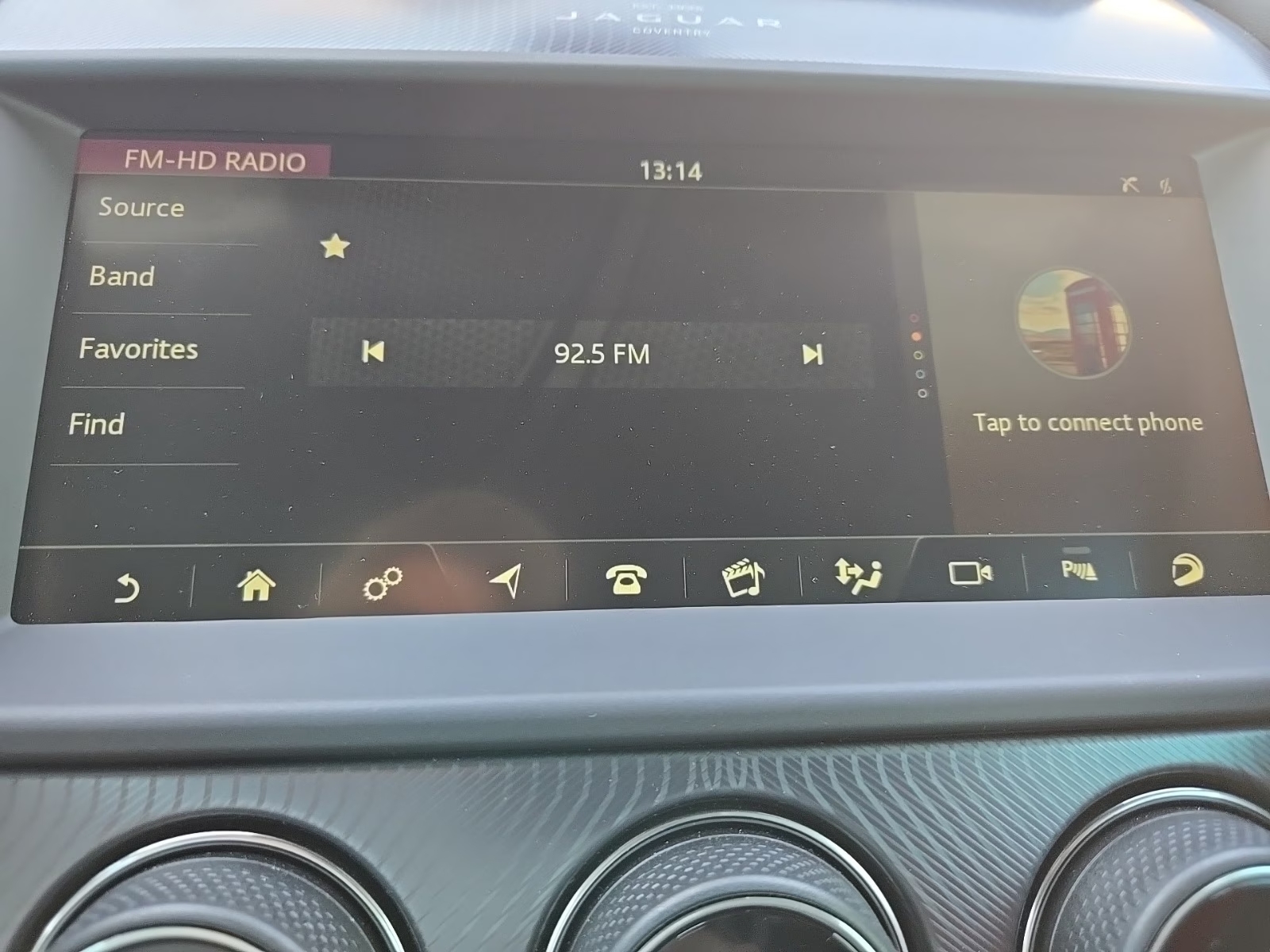

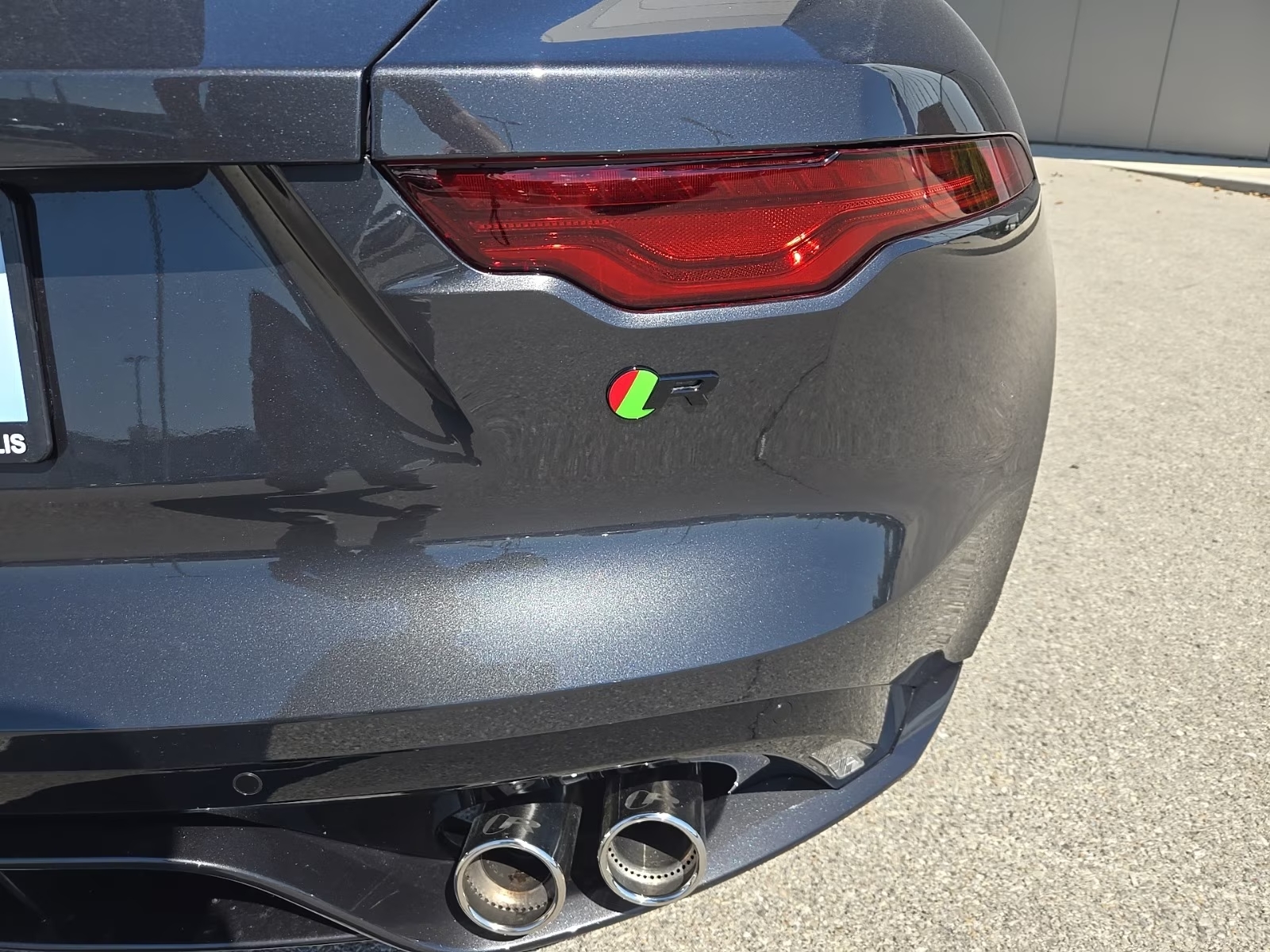

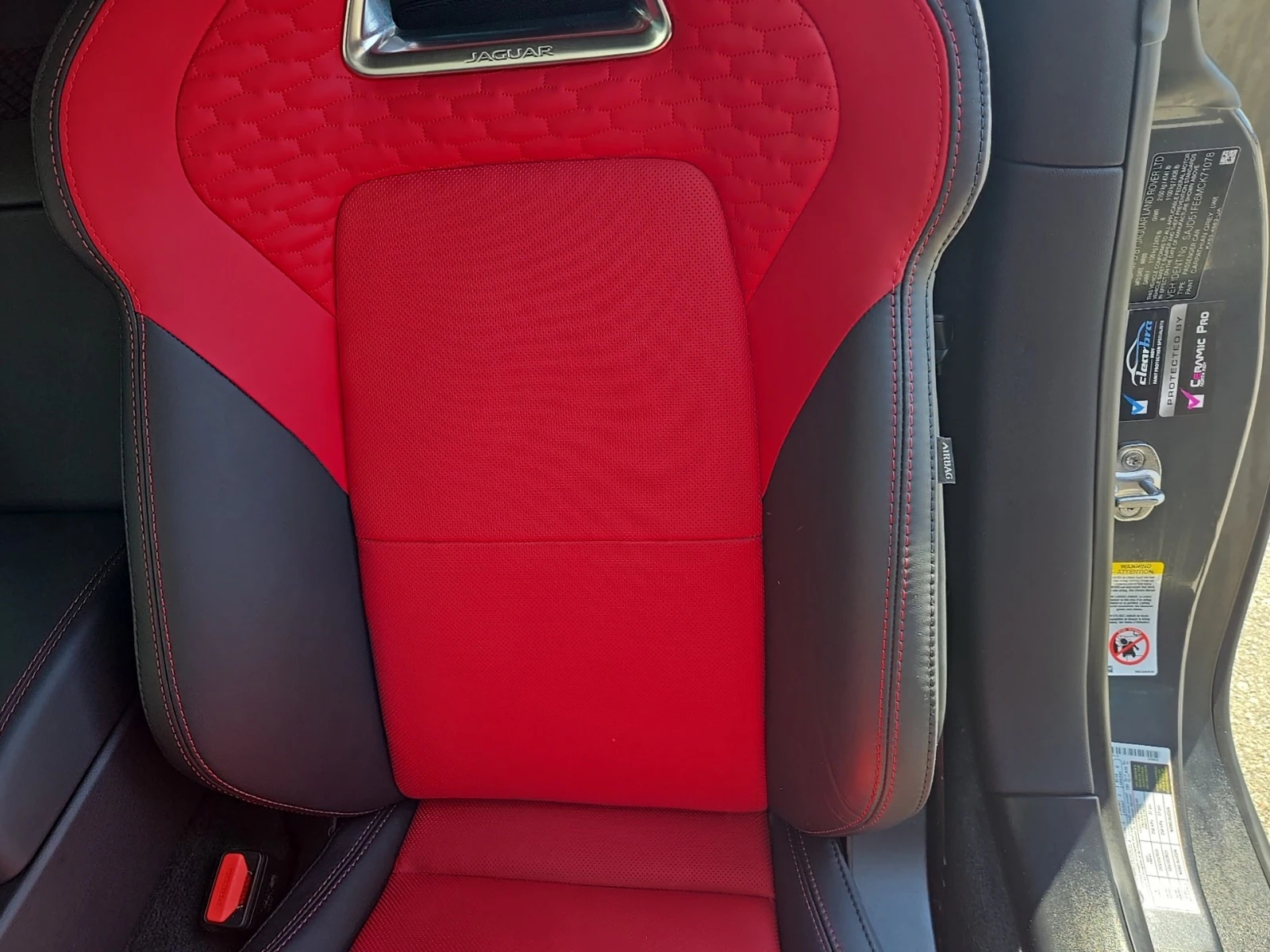

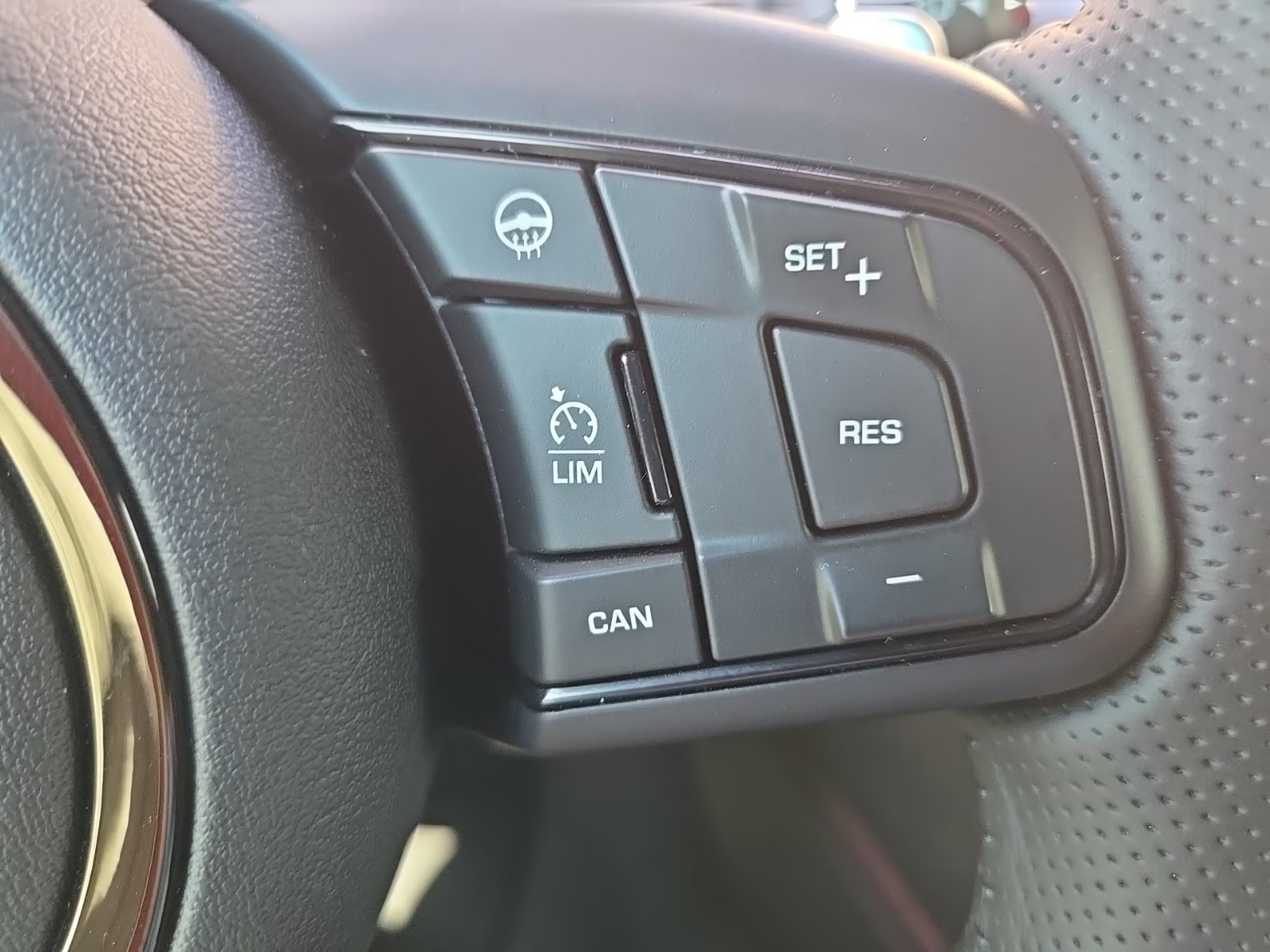

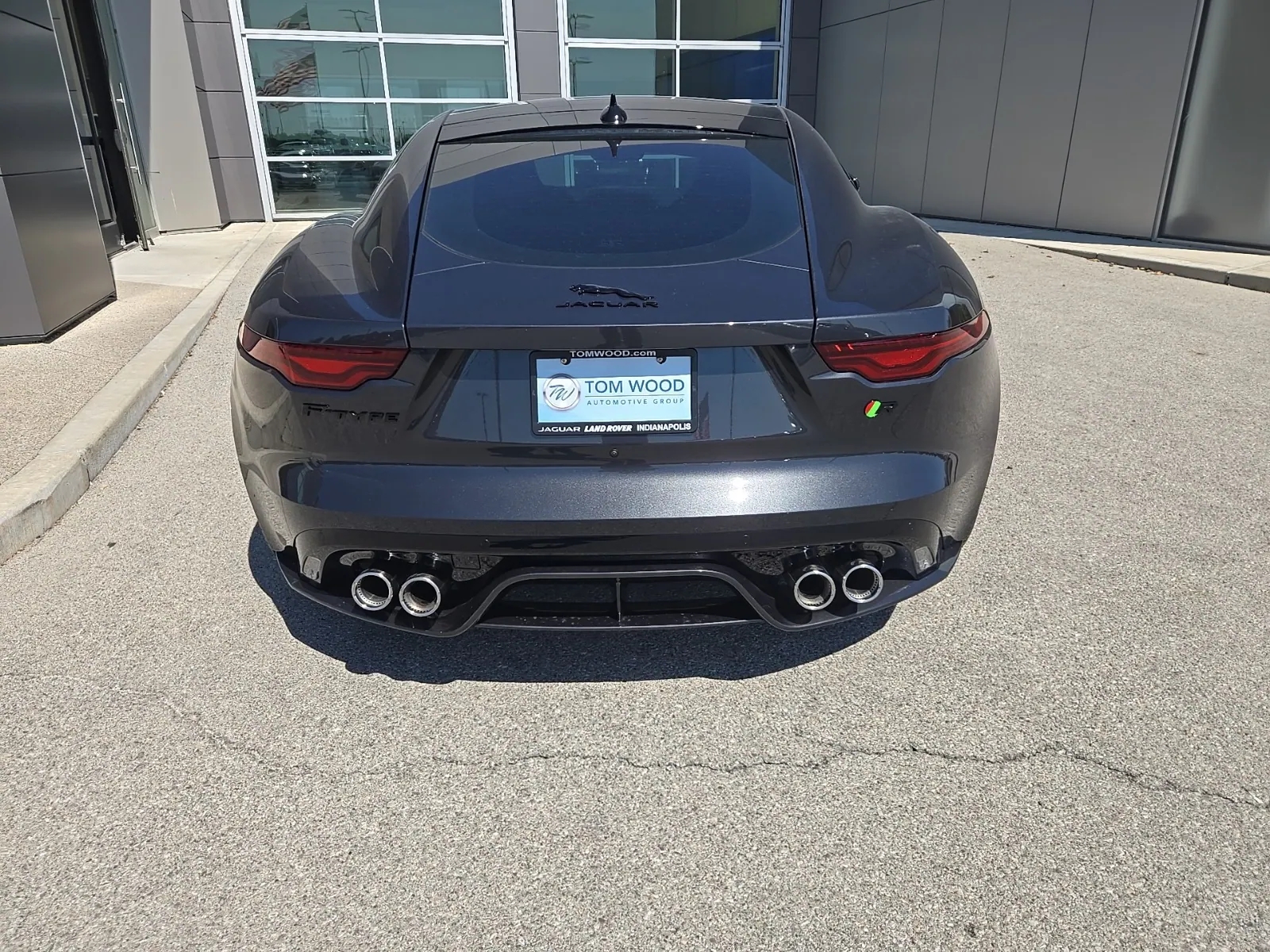

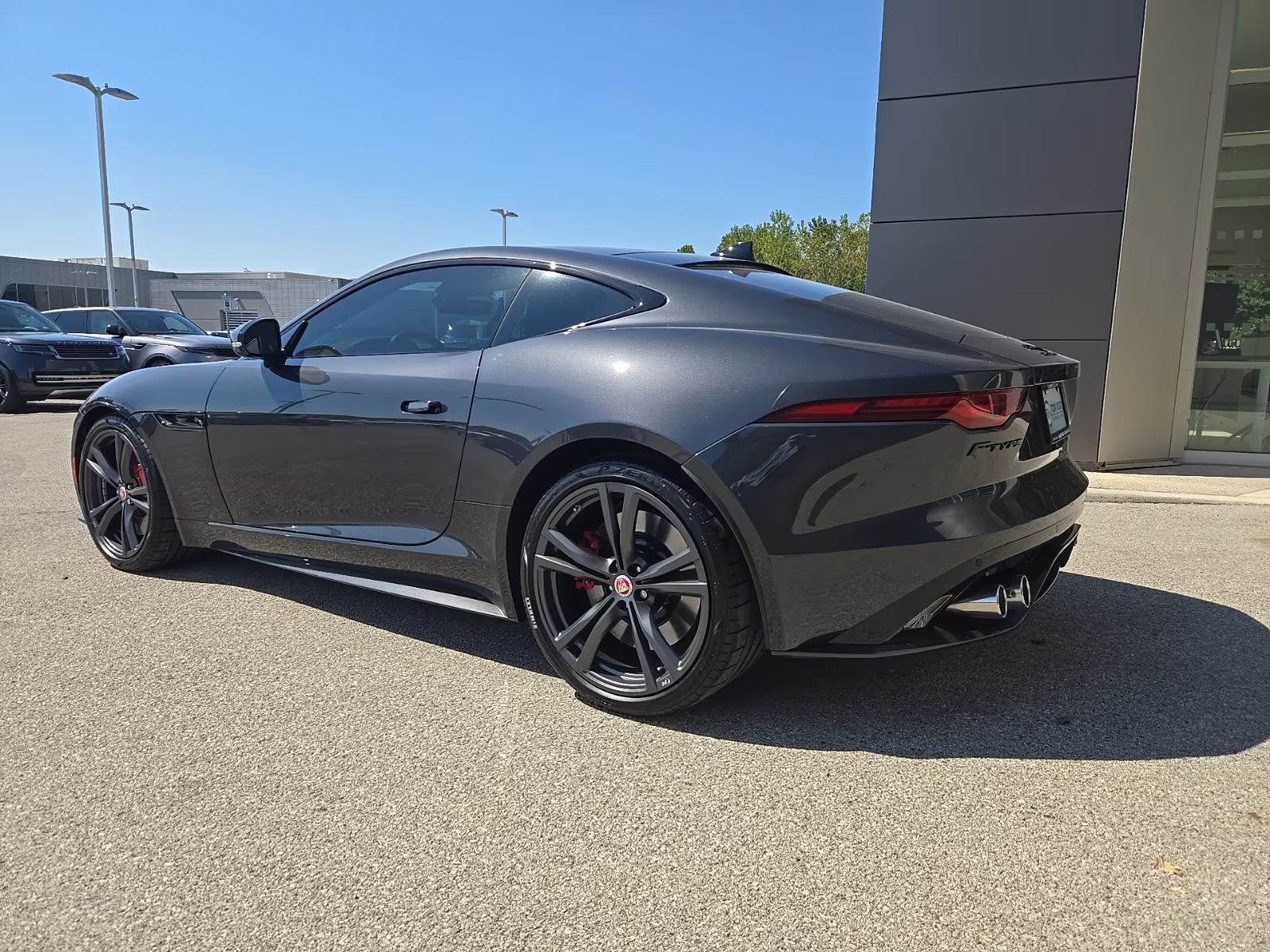

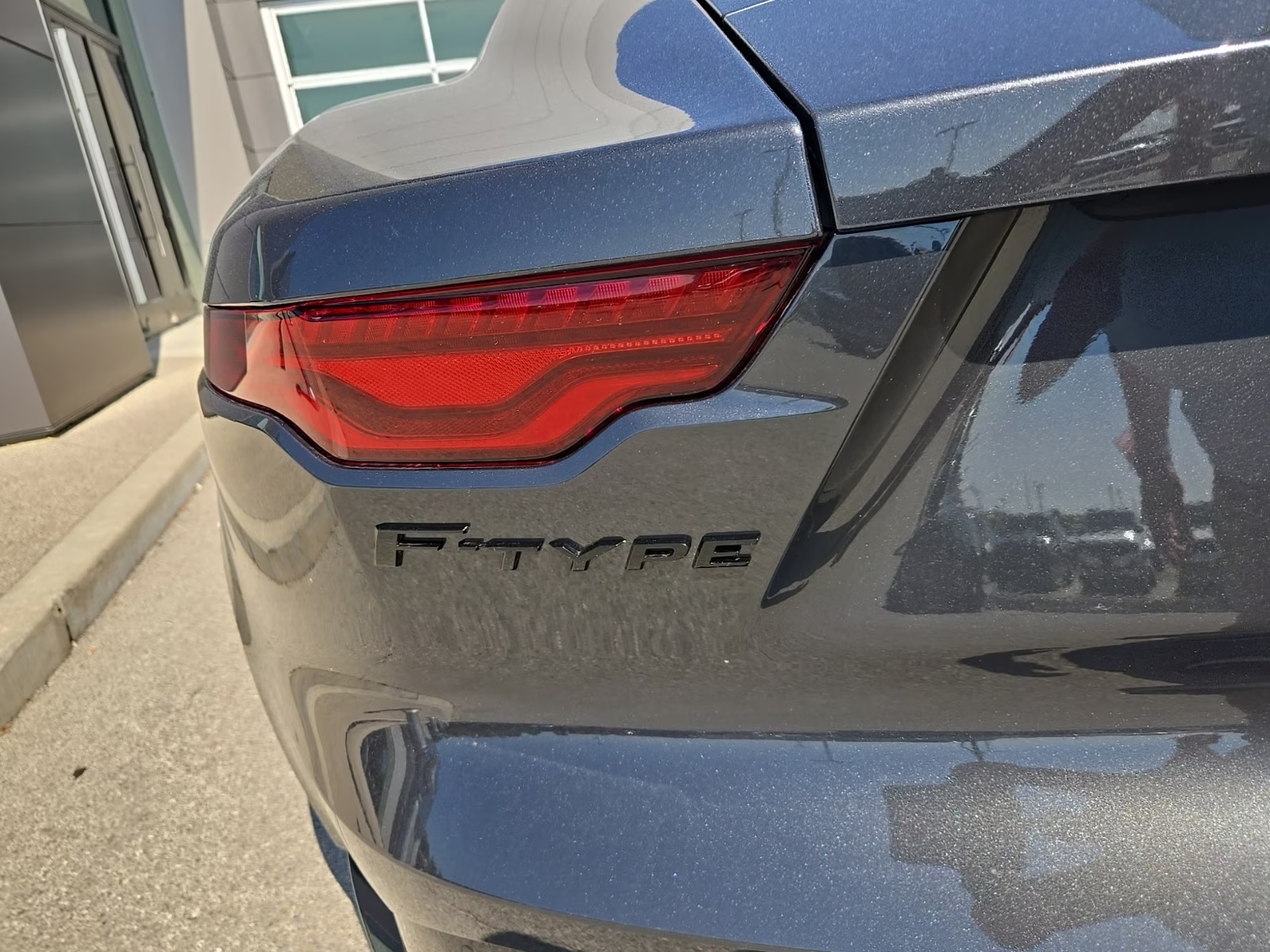

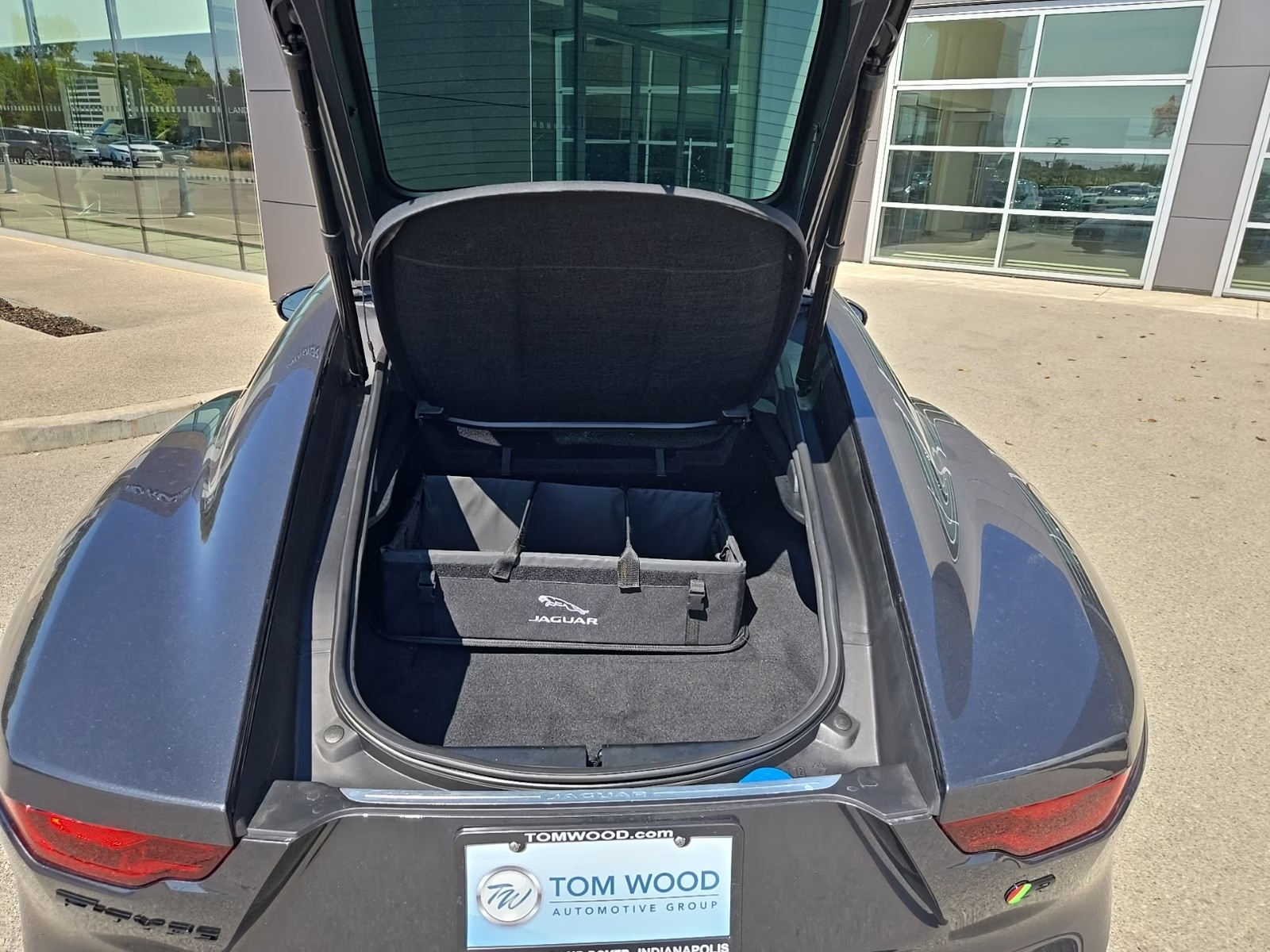

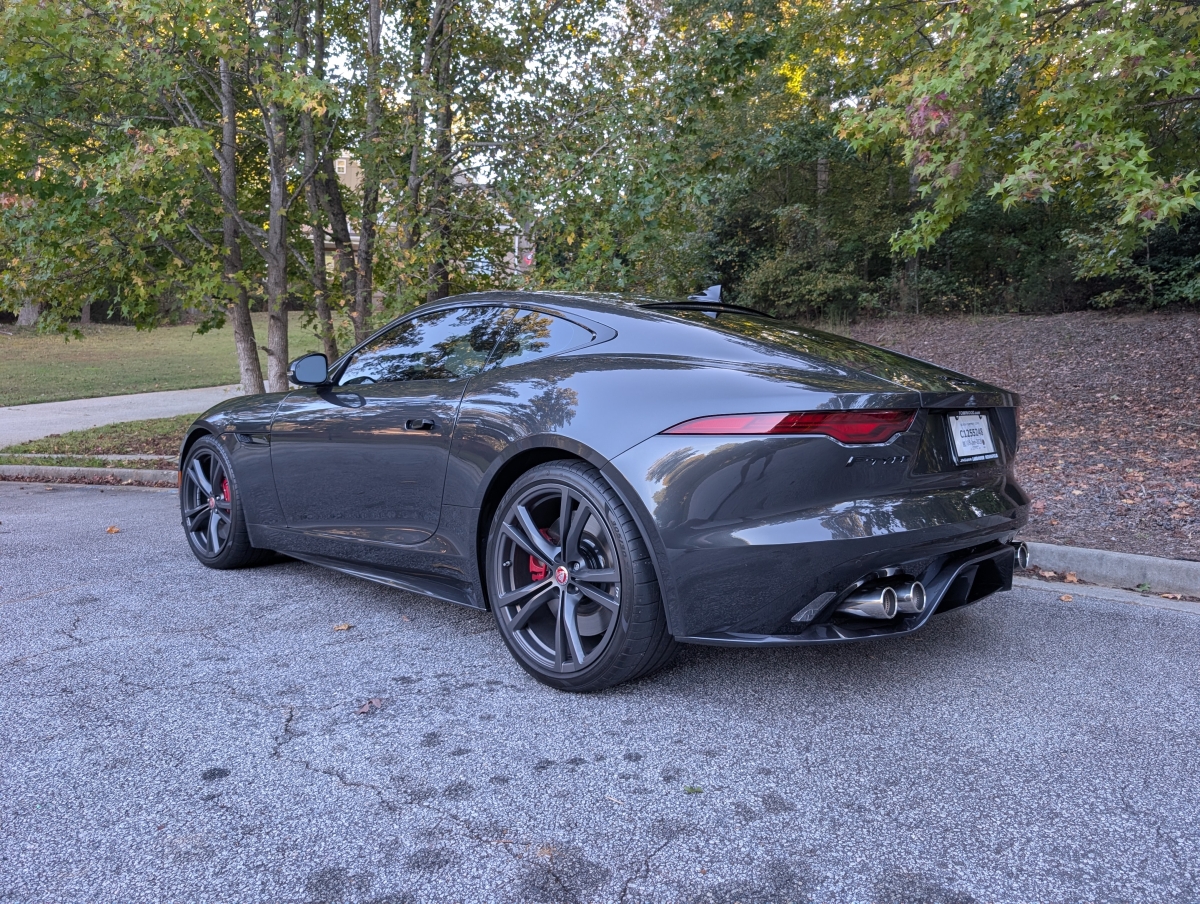

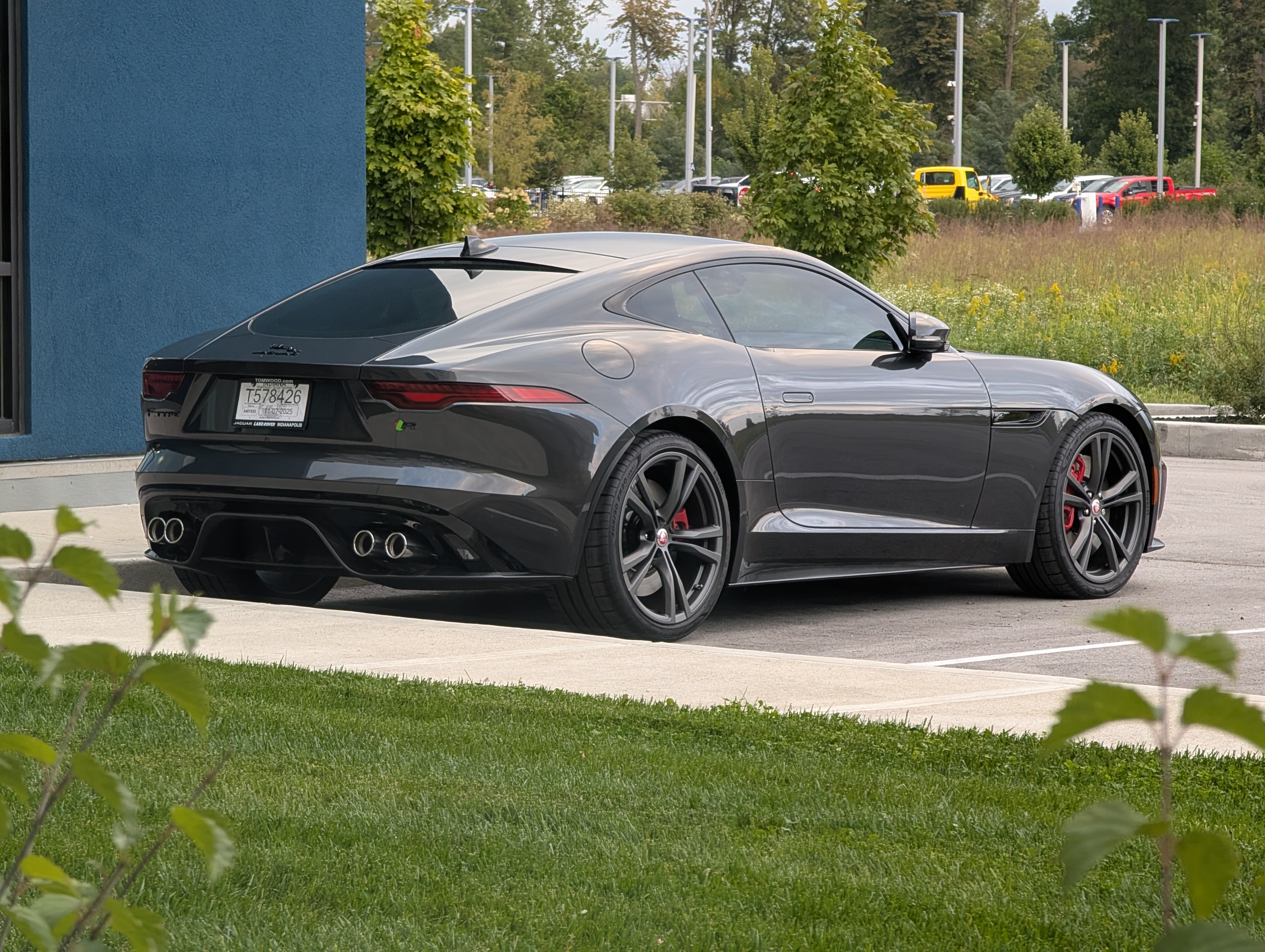

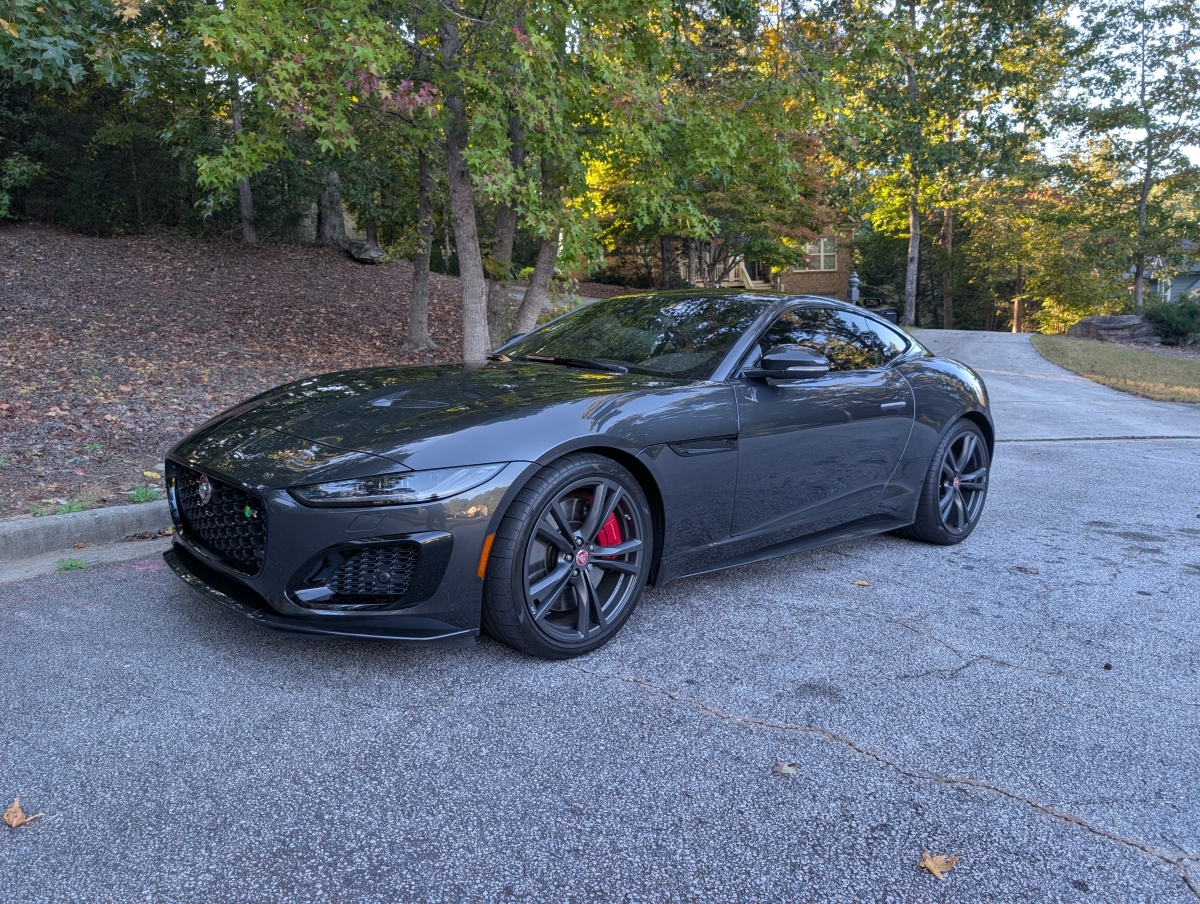

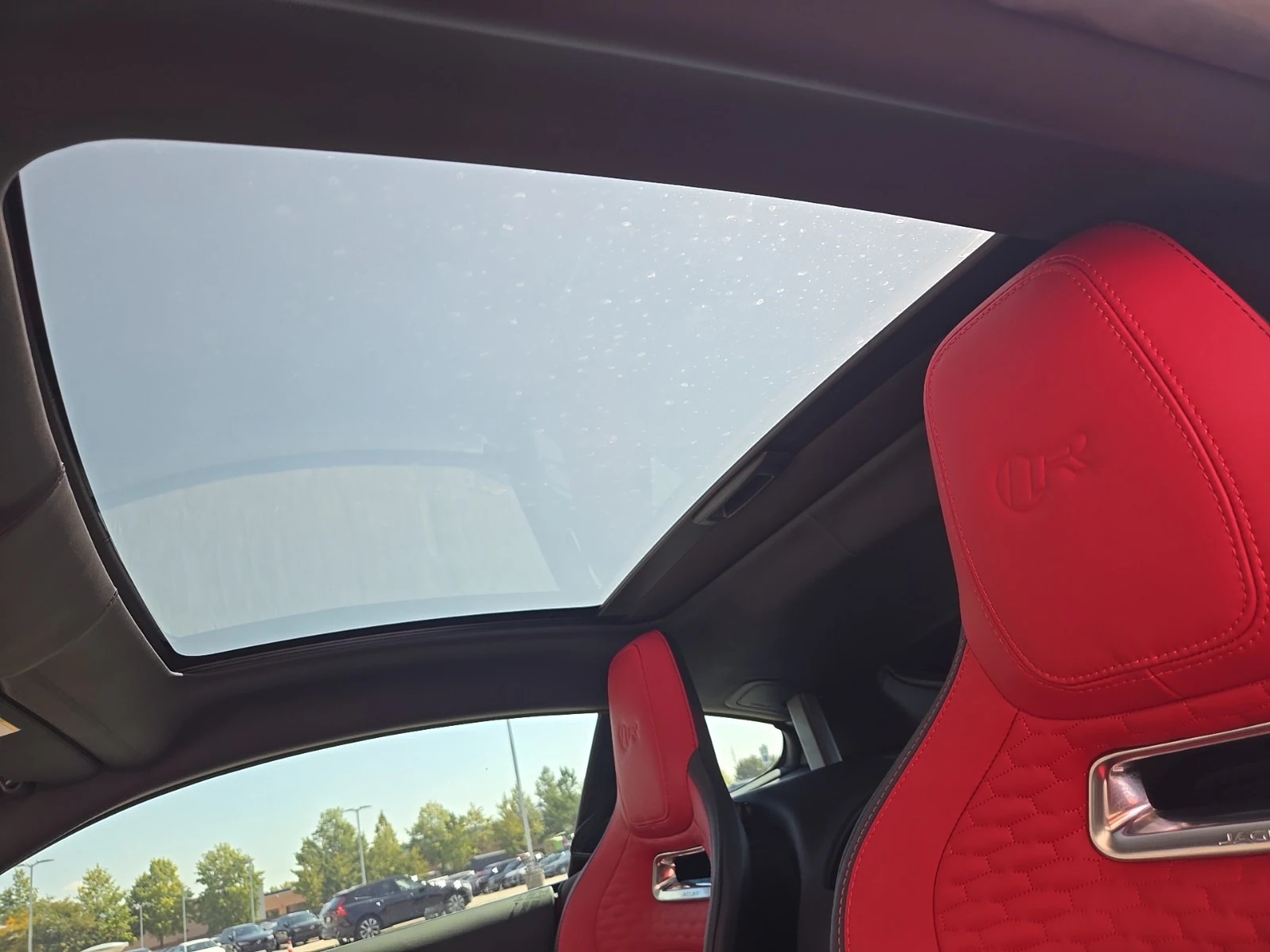

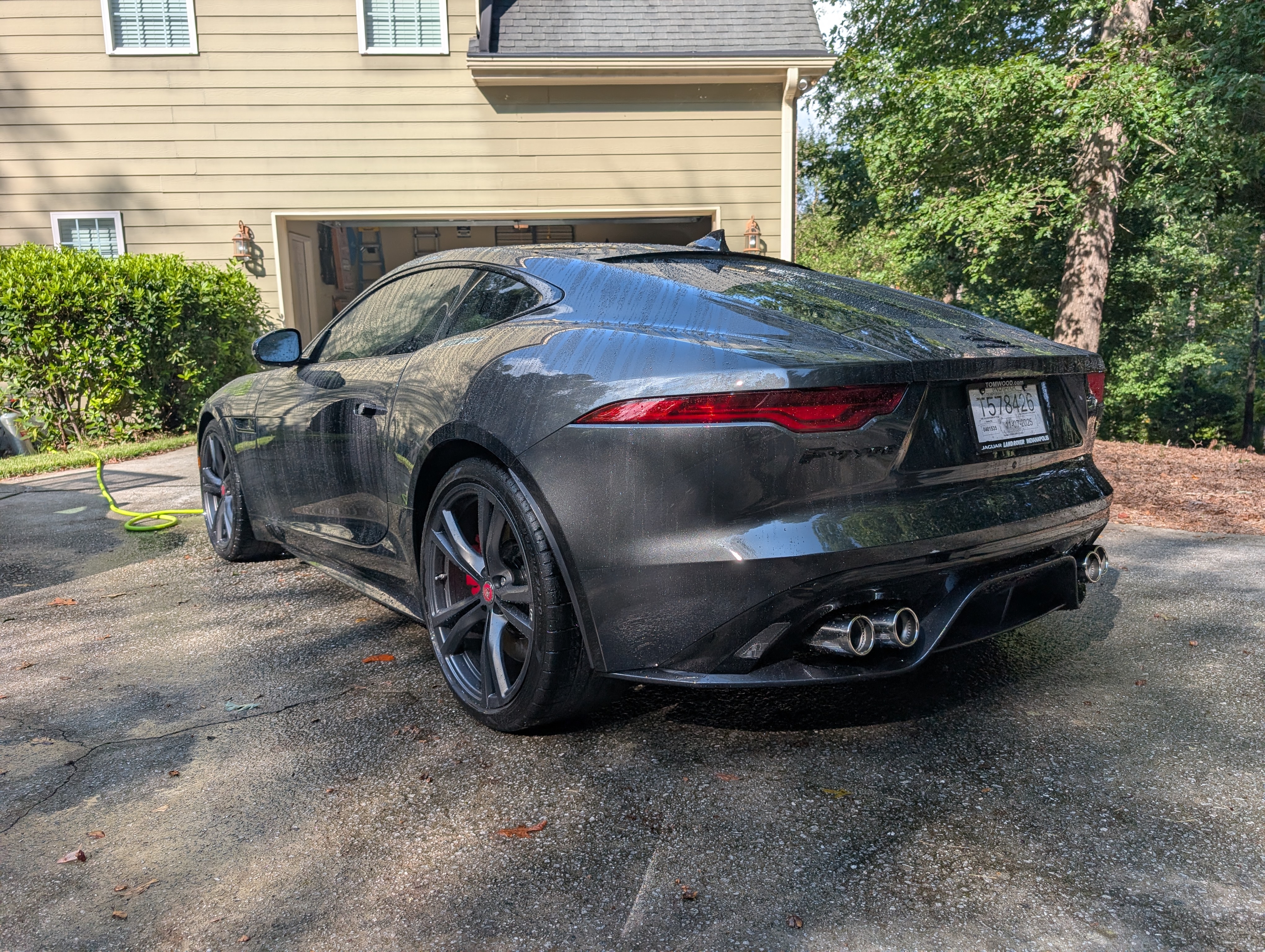

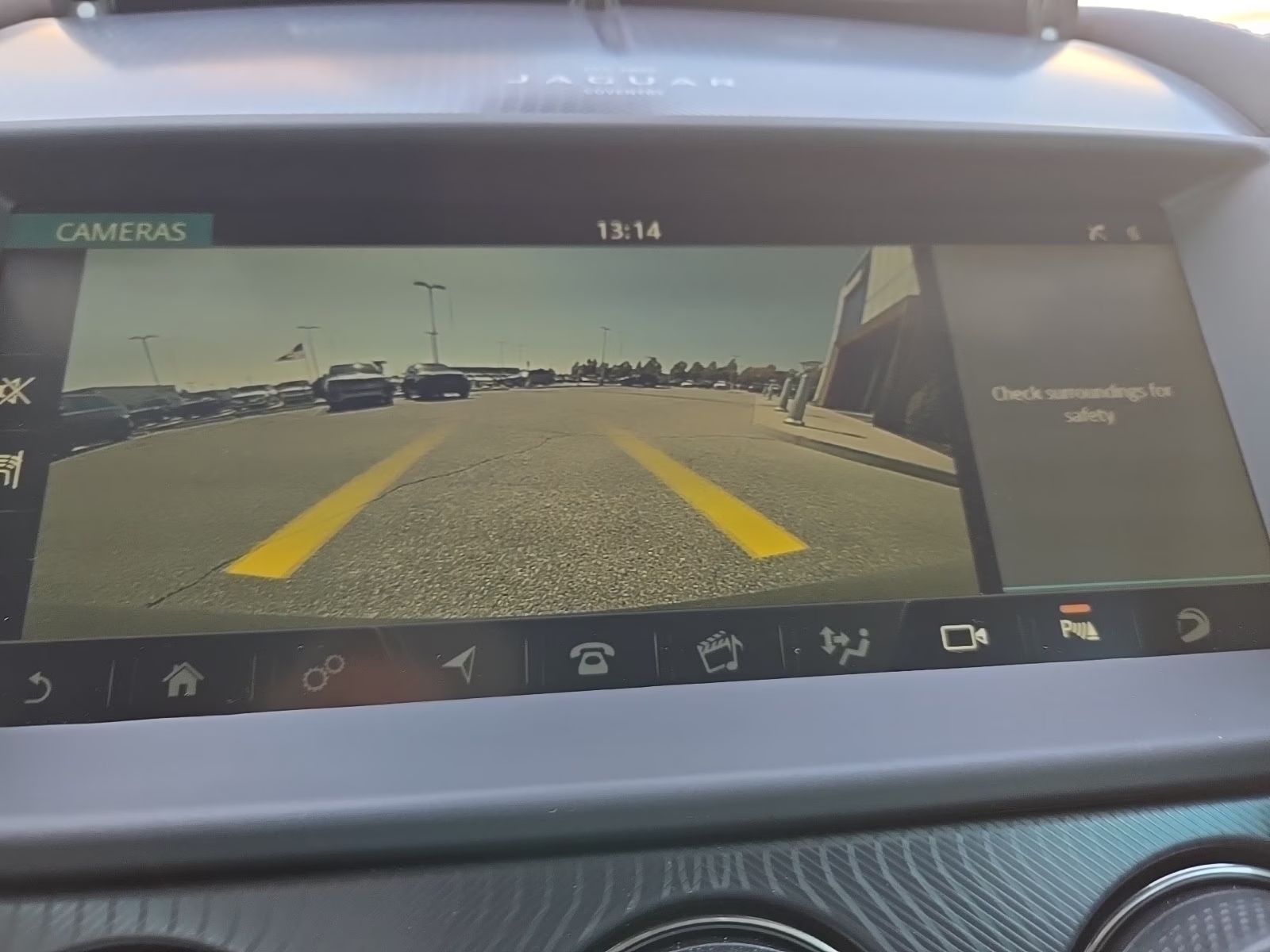

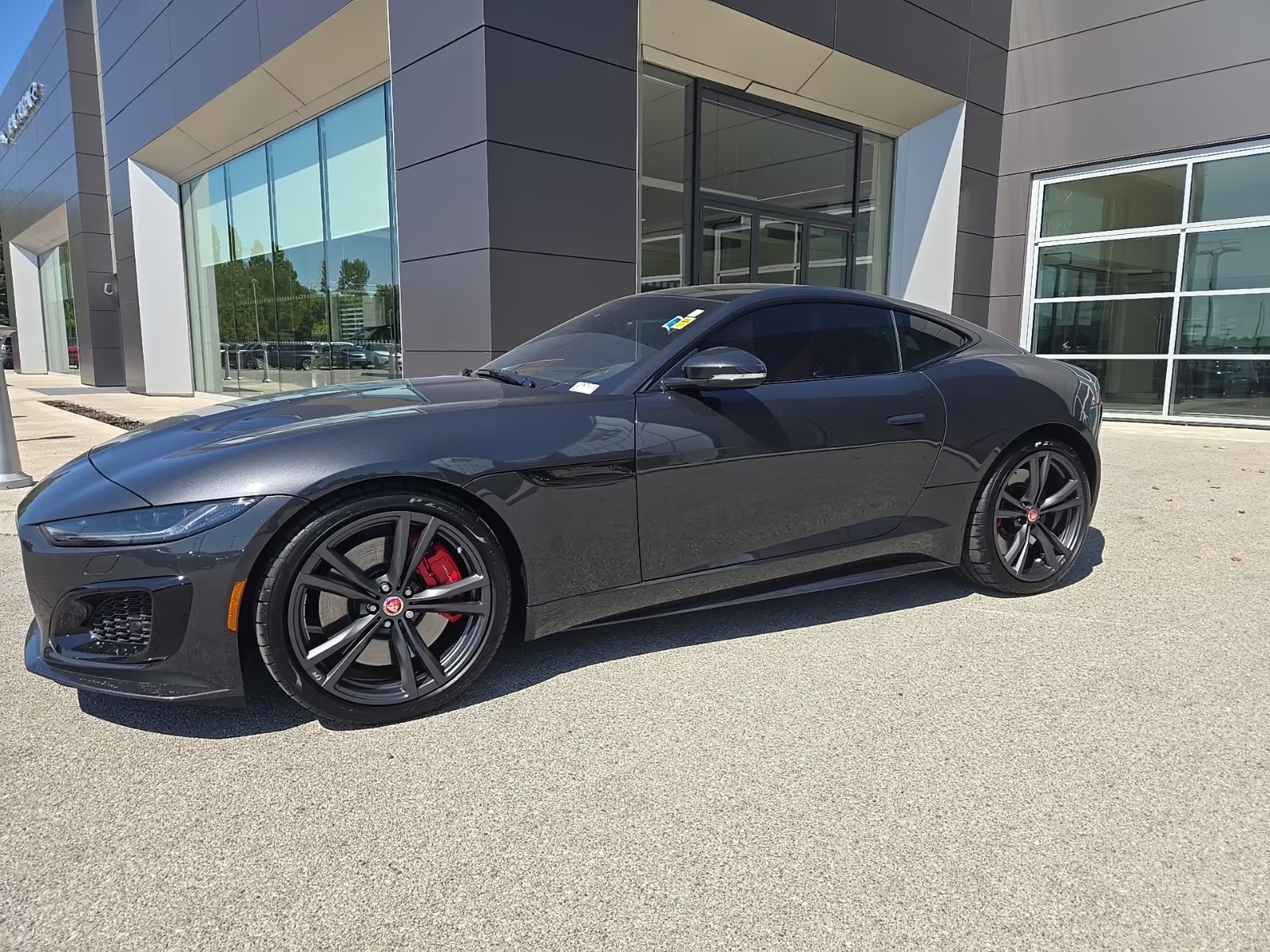

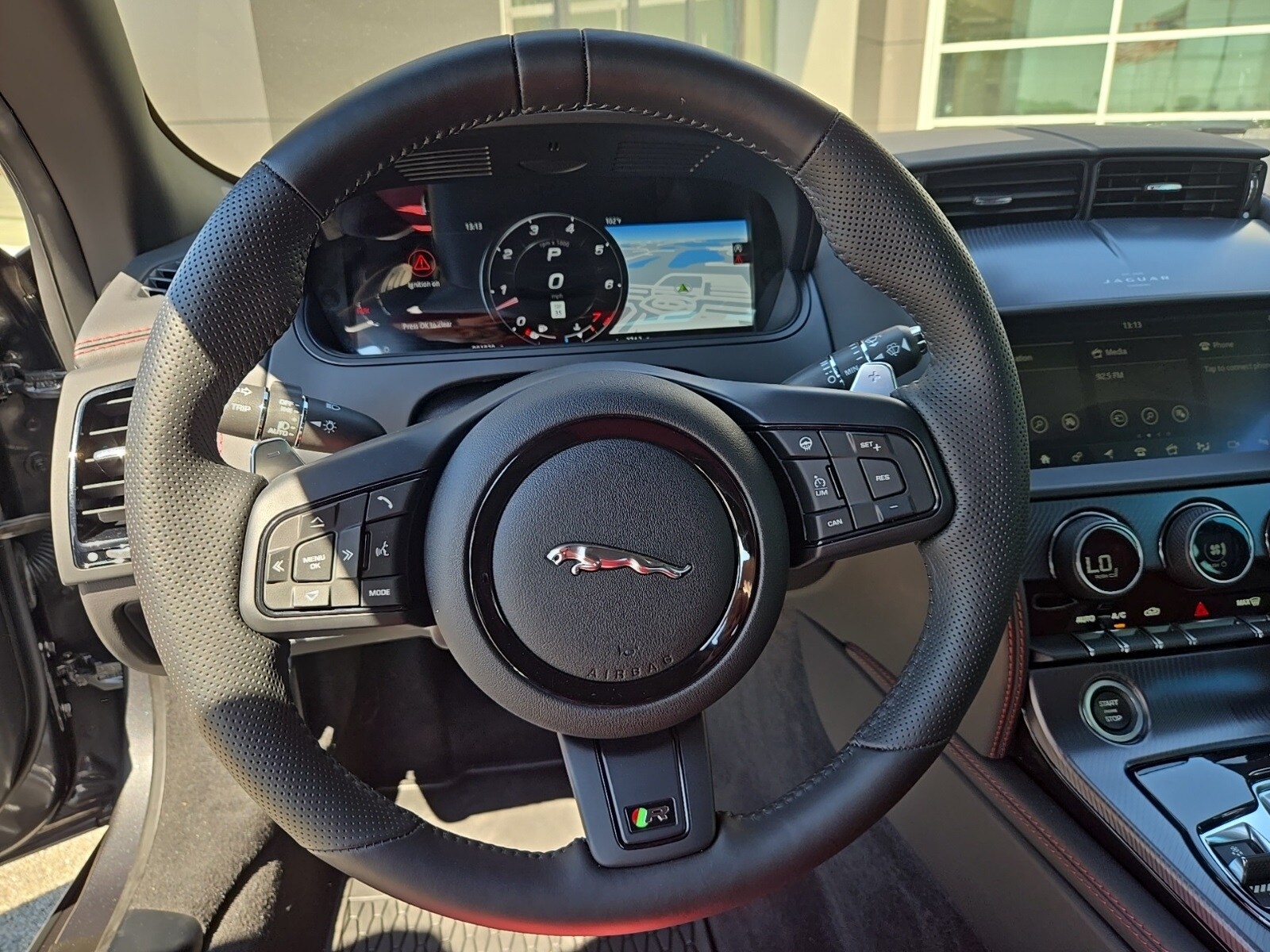

Dealer iPacket and build sheet is HERE. Below are some dealership ad pics, a few I took from the hotel window, and some when back home after a 600 miles/9.5 hours/5 states drive home.
FYI if you purchase a pre-owned Jaguar: Master PIN reset is optimally done by prior owner but if not a dealer is required, a call to Jaguar Customer Relationship Center at 1-800-452-4827 with proof of ownership will allow them to reset the incontrol/remote account/PIN but not the master PIN for the car. Kind of a bummer, especially for a Jaguar CPO car- not a cheap fix at the dealer.
NOTE: The following is provided for informational purposes only, user assumes all risks- YMMV.

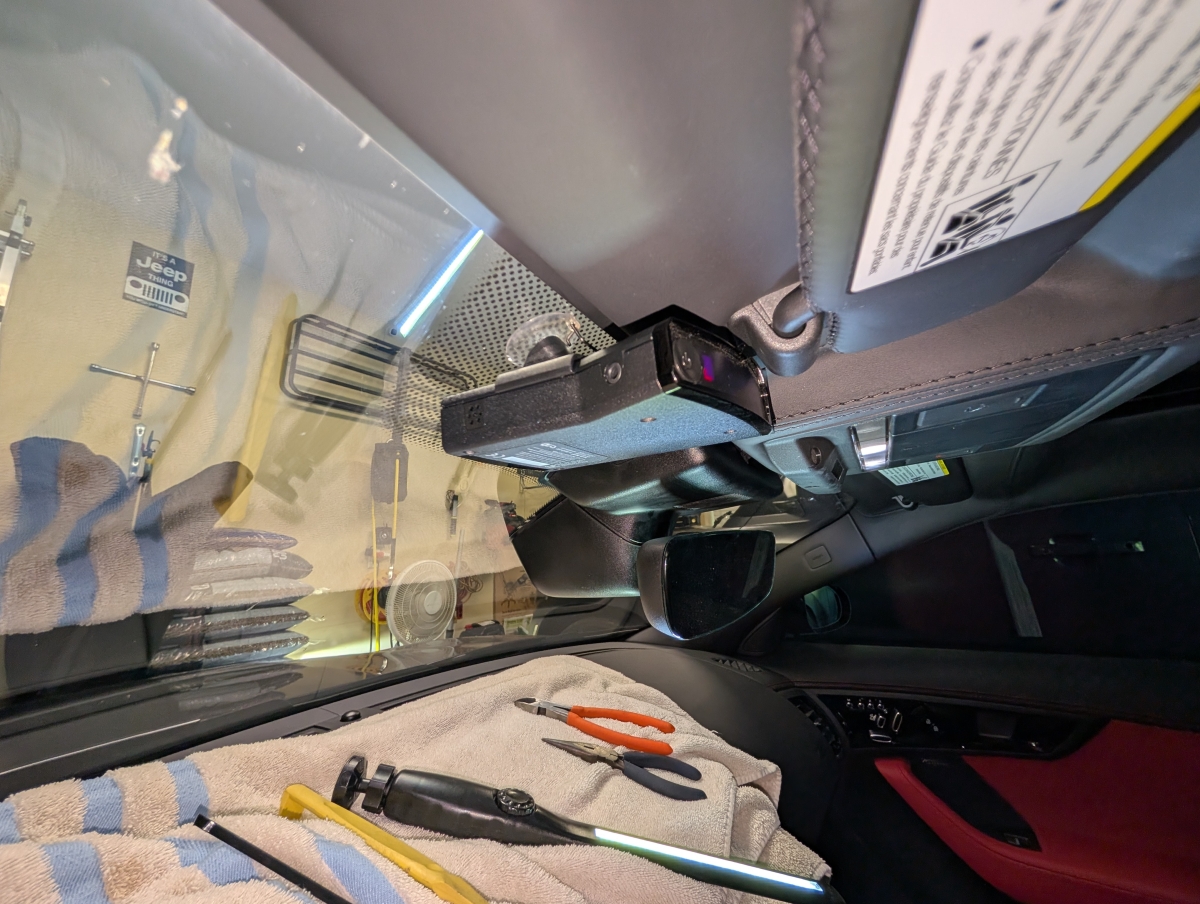

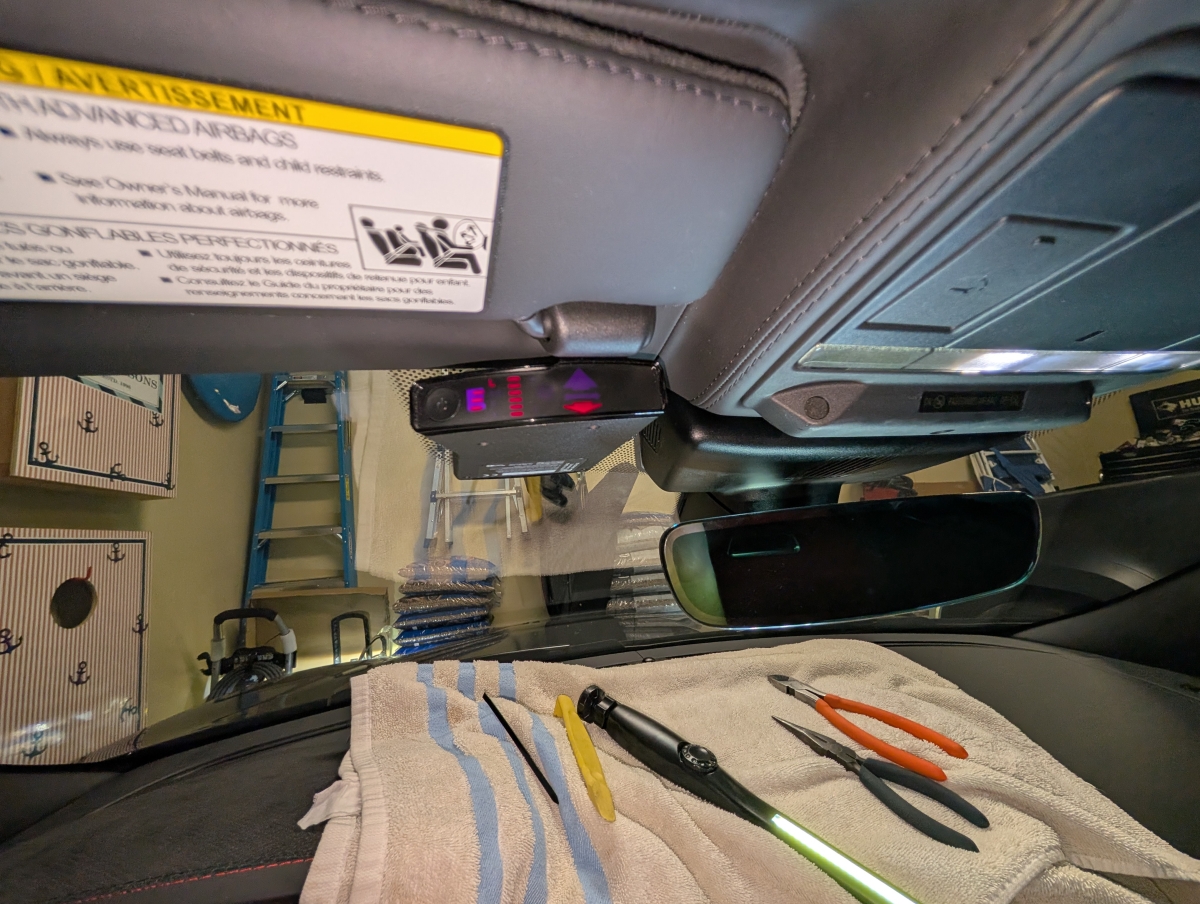

Valentine 1 Gen2 radar detector (Owners Manual, Quick Start Guide, Programming Guide, Troubleshooting, How To Upgrade) hardwire installed using a Xislet Radar Detector Hardwire Power Cord Mirror Plug Tap with Inline Fuse from Amazon, I used the cord with the smallest pins.

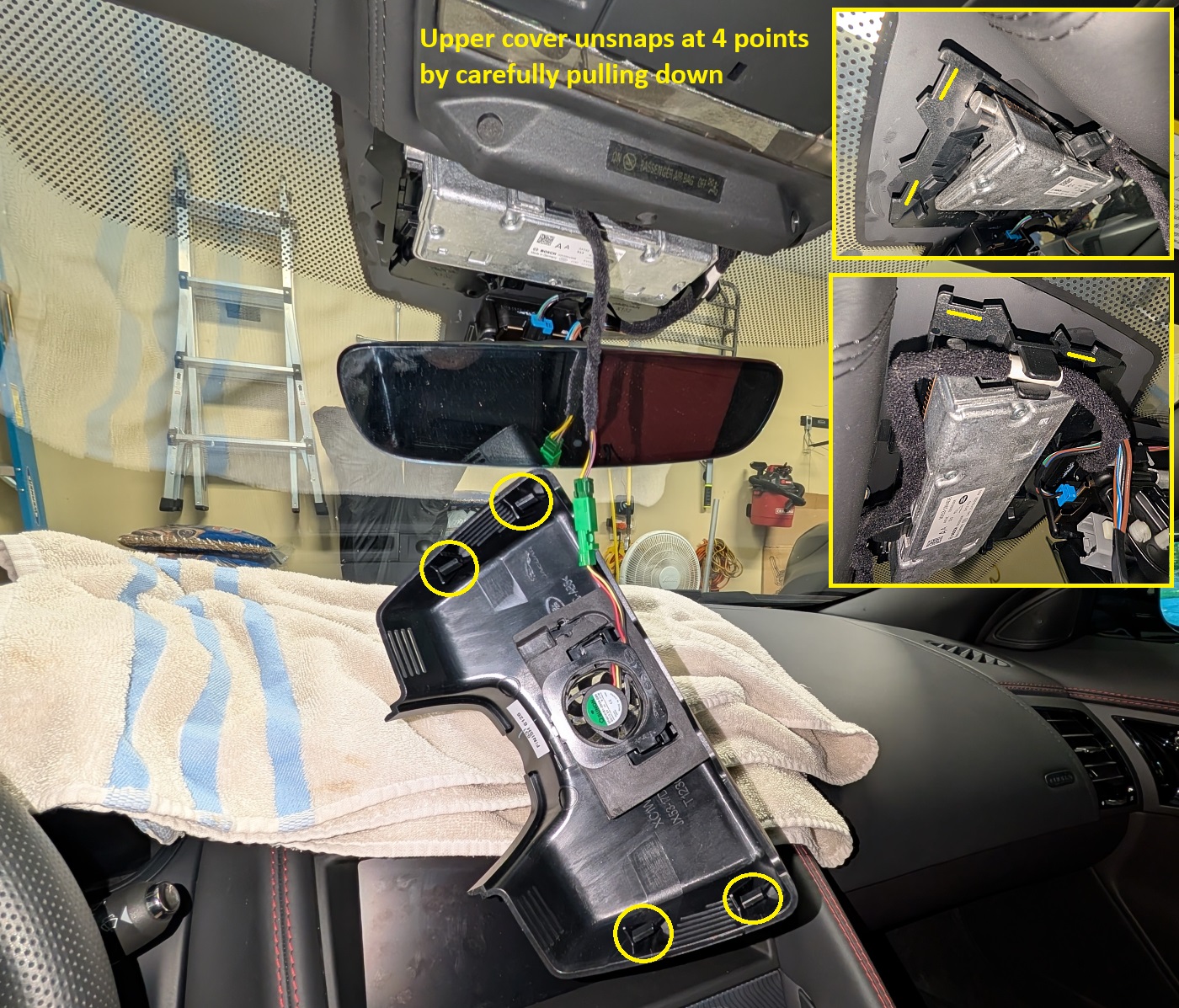

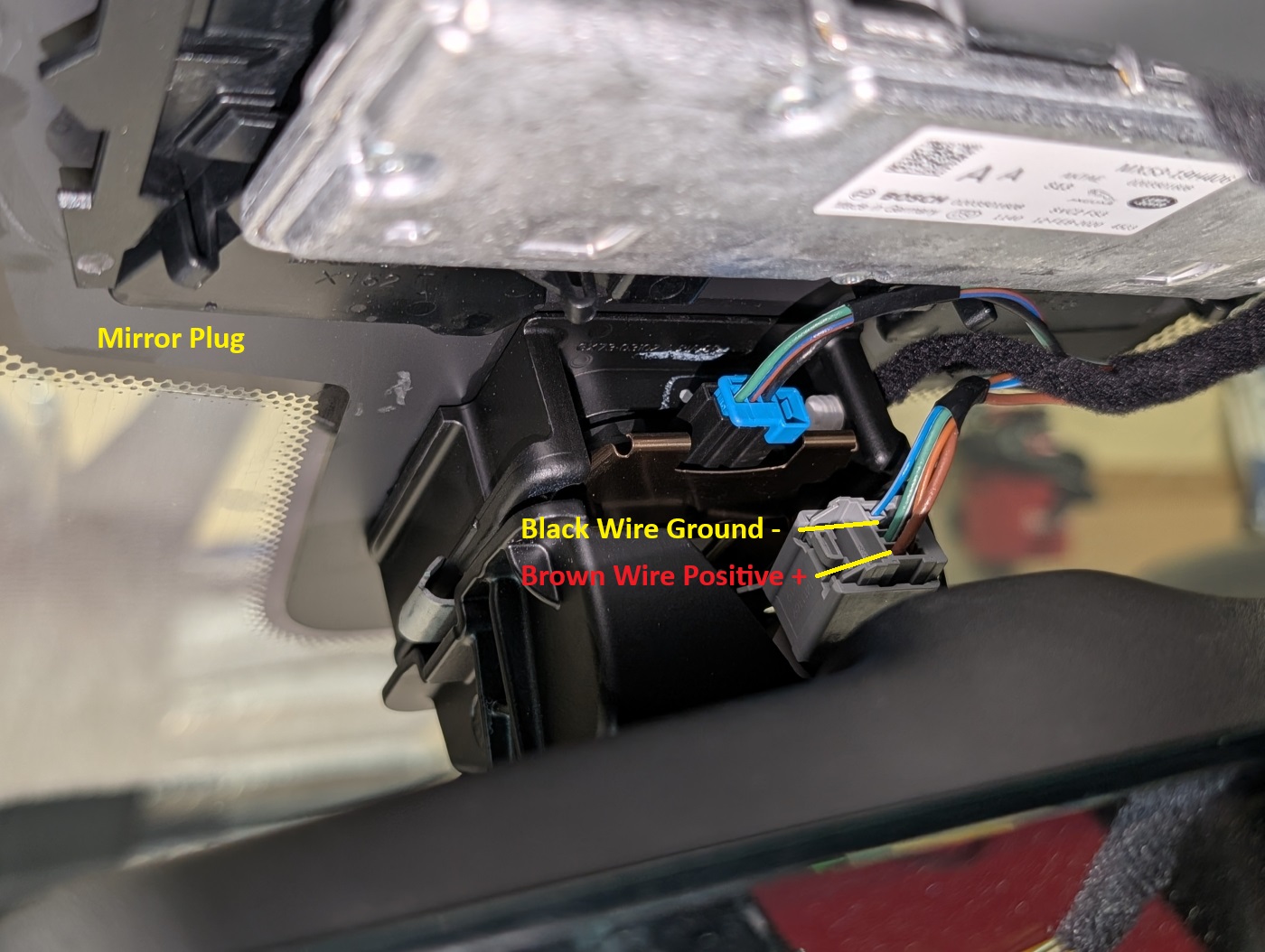

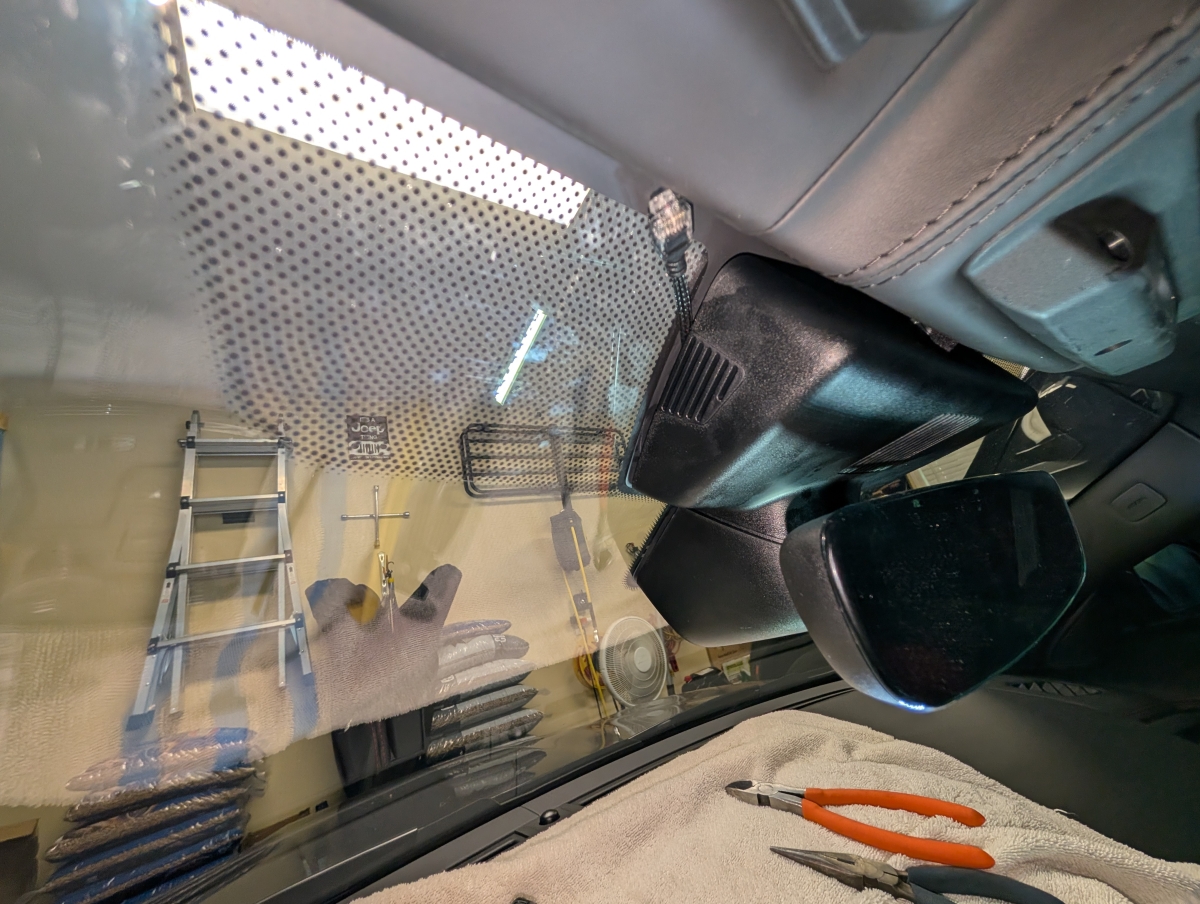

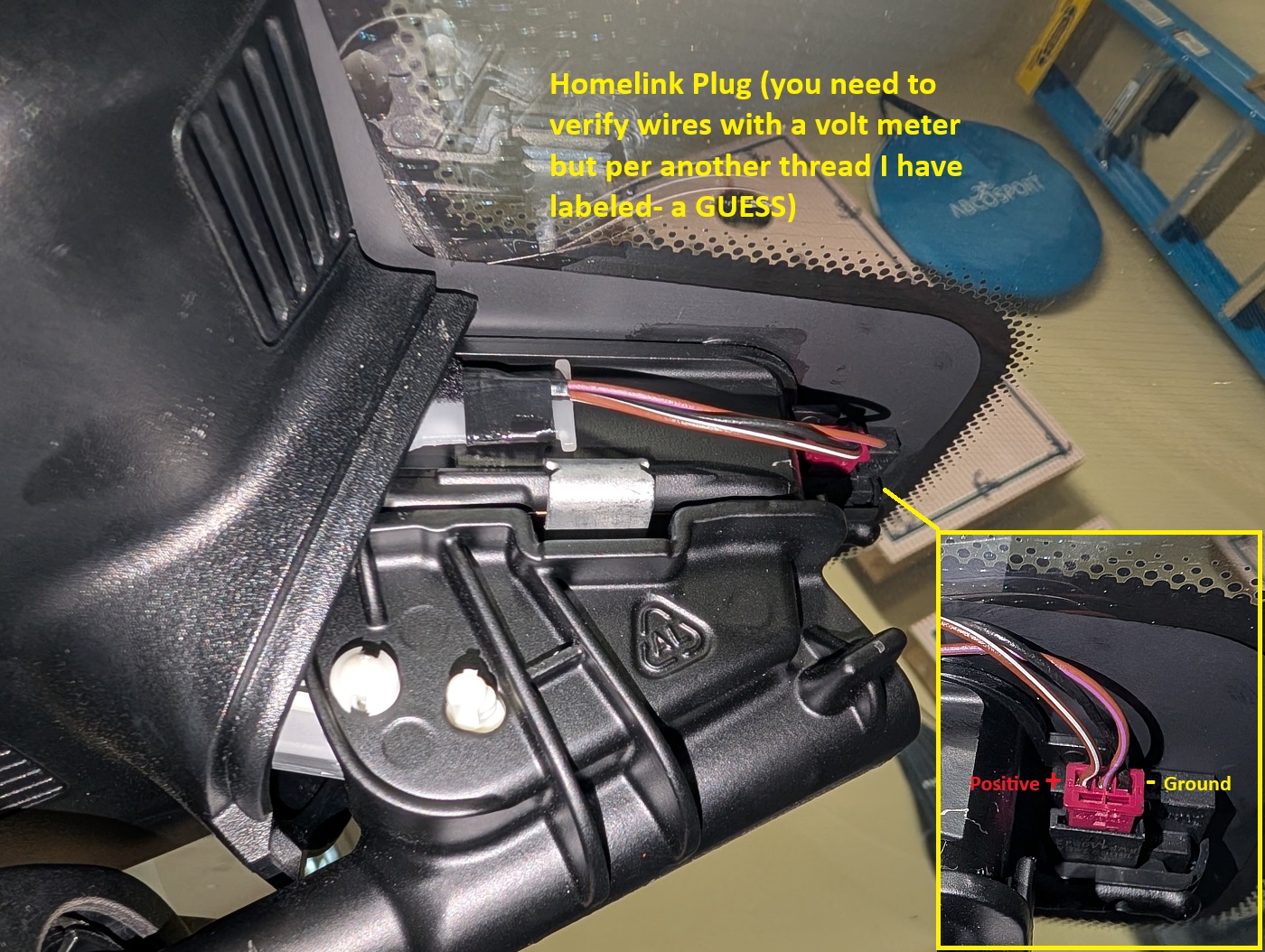

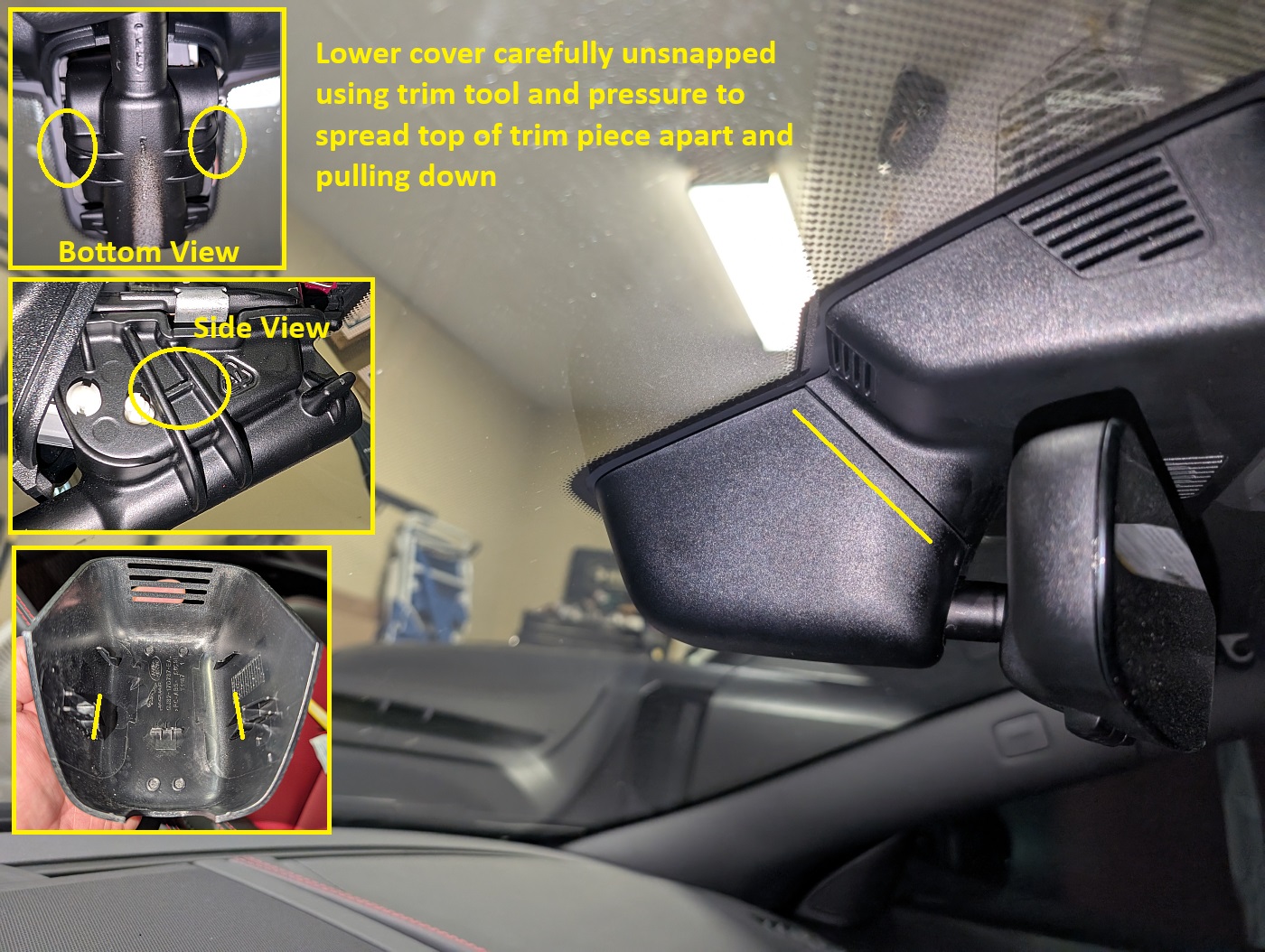

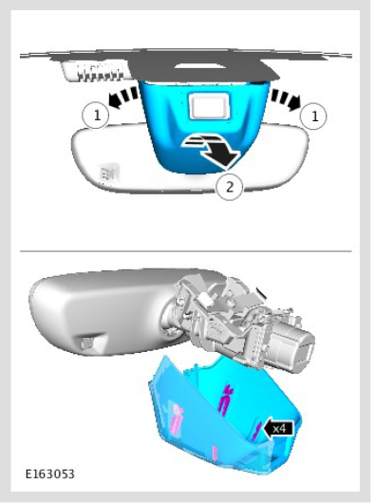

Using the Bluetooth connection to the V1 from my Android phone with the JBV1 app adds a lot of useful functionality- Some discussion around the JBV1 app can be found HERE, helpful settings guide HERE.I had found several forum write-ups for hard wiring but the wire colors did not match what I had....so even after snapping off the lower cover and finding the Homelink connector, I decided to remove the upper cover (tricky since I had to slightly pull down, not remove, rear view mirror to remove and install the upper cover). Found the same plug that was in our Defender and used the same positions to tap (same positions as this THREAD)- if I had it to do over I would just use the Homelink plug to tap positions (not colors) as in this THREAD.

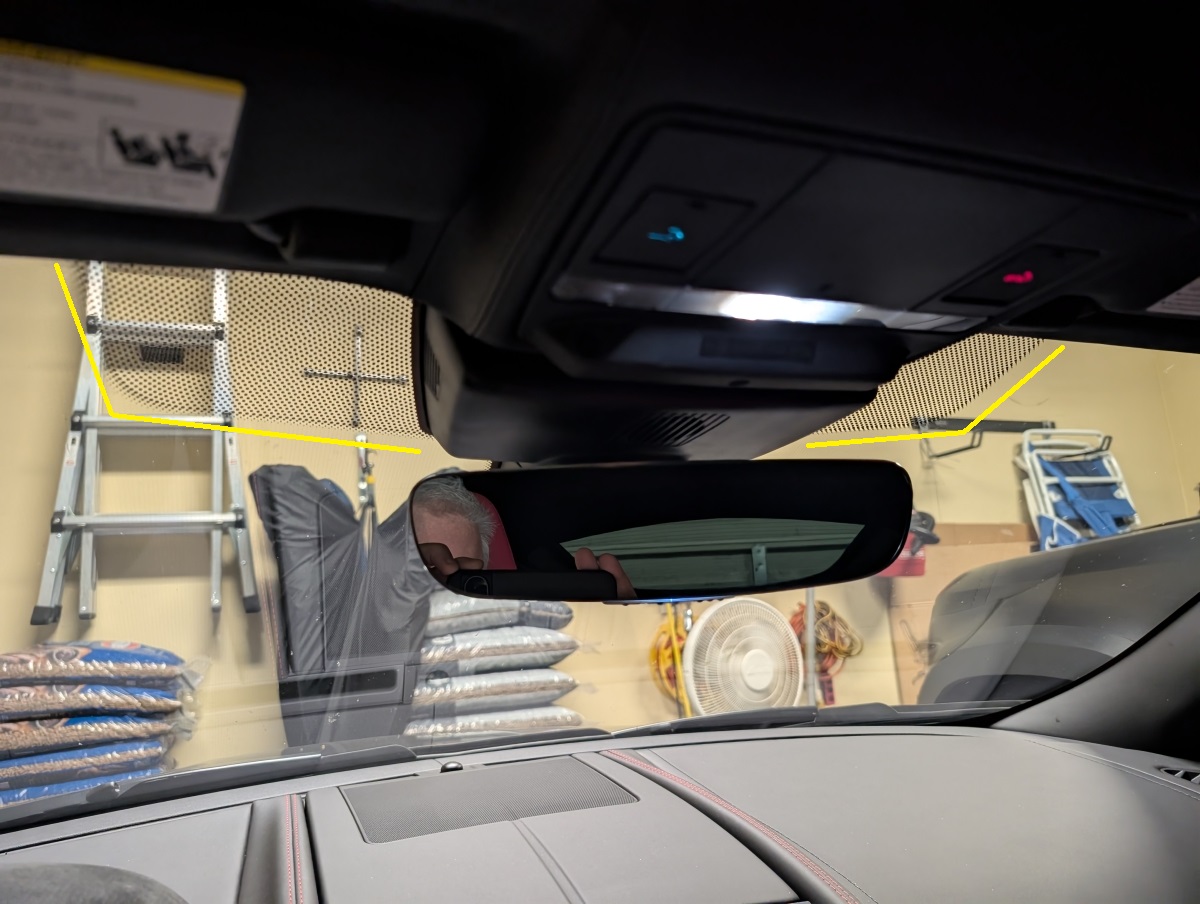

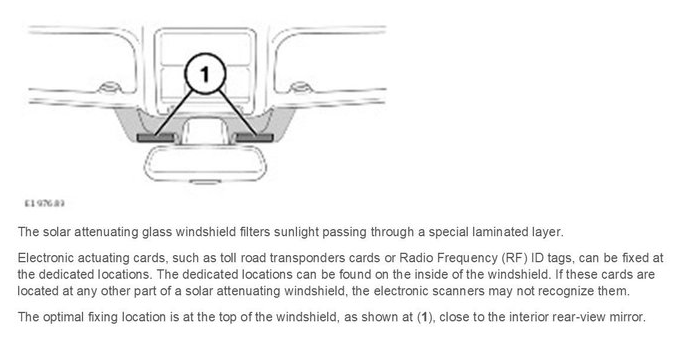

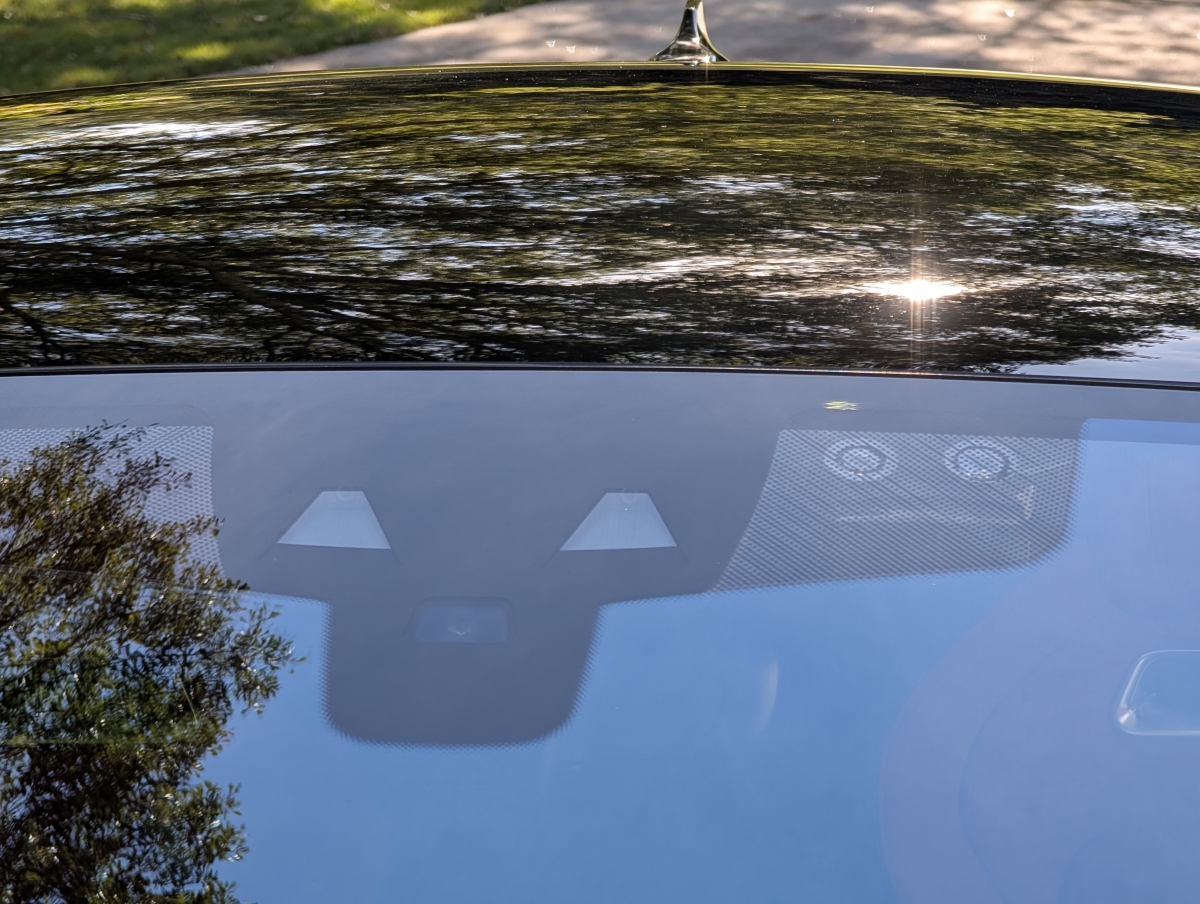

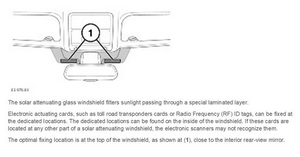

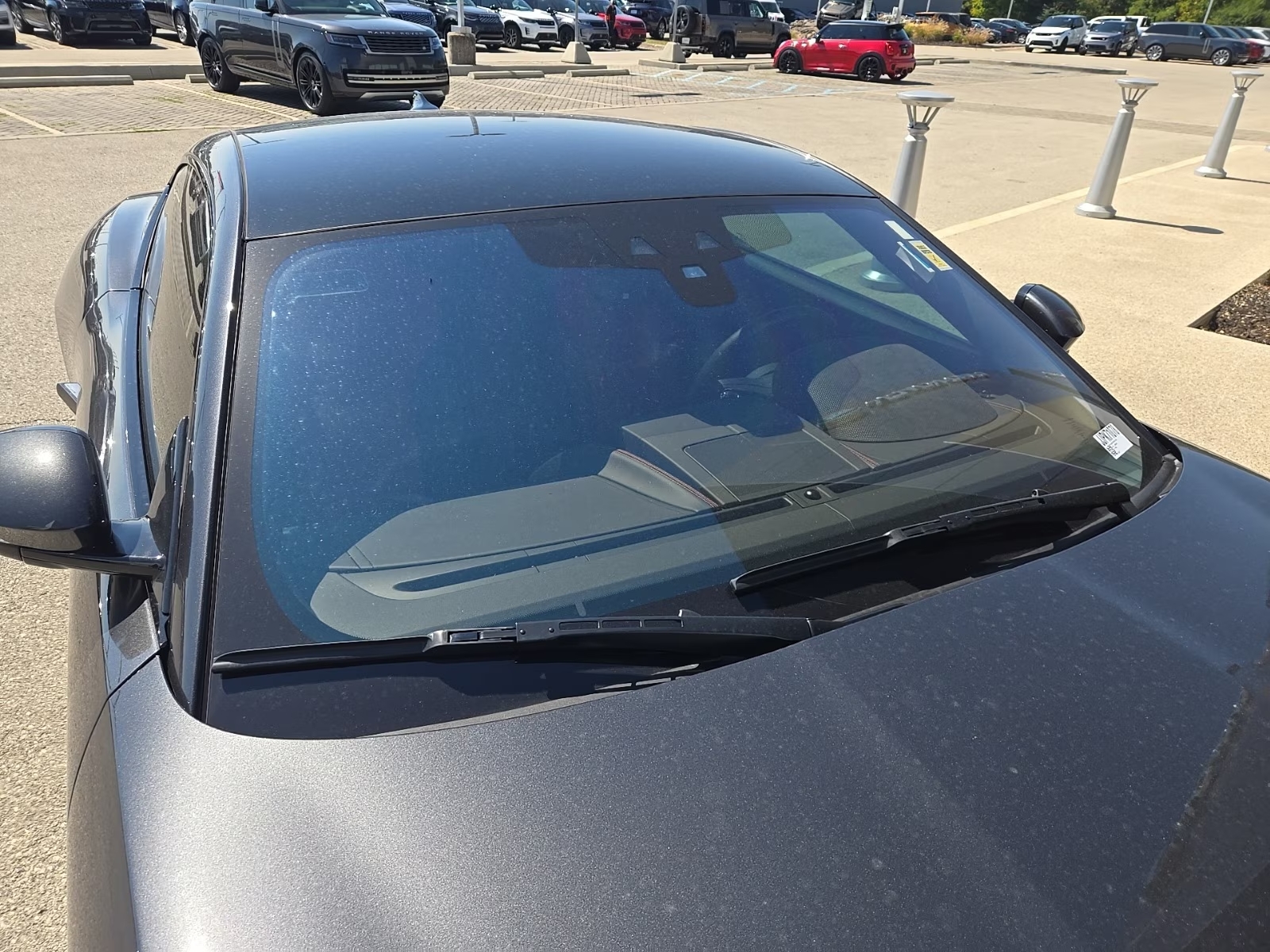

Was going to source a BlendMount like we have in some other vehicles but the windshield in the F-Type is solar attenuating so not optimal for the radar detector. Small area at top of windshield and to either side of mirror are designated clear spots for transmission (radar detectors, toll cards, etc.) where the black dots are, as detailed in these threads HERE, HERE, HERE, and HERE. I always trust but verify and found a local speed sign to conduct some testing, definite improvement in ability/range at clear area vs mirror mount so......will eventually replace suction cup mount with VHB semi-permanent mount.
NOTE: The following is provided for informational purposes only, user assumes all risks- YMMV.

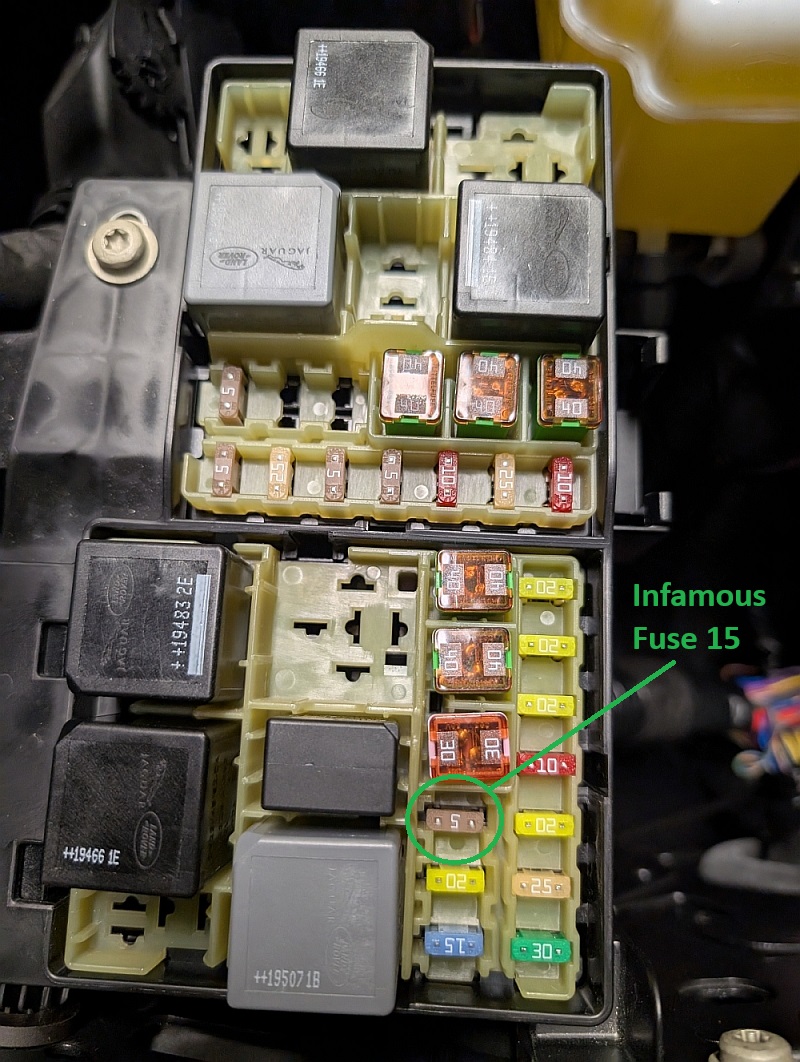

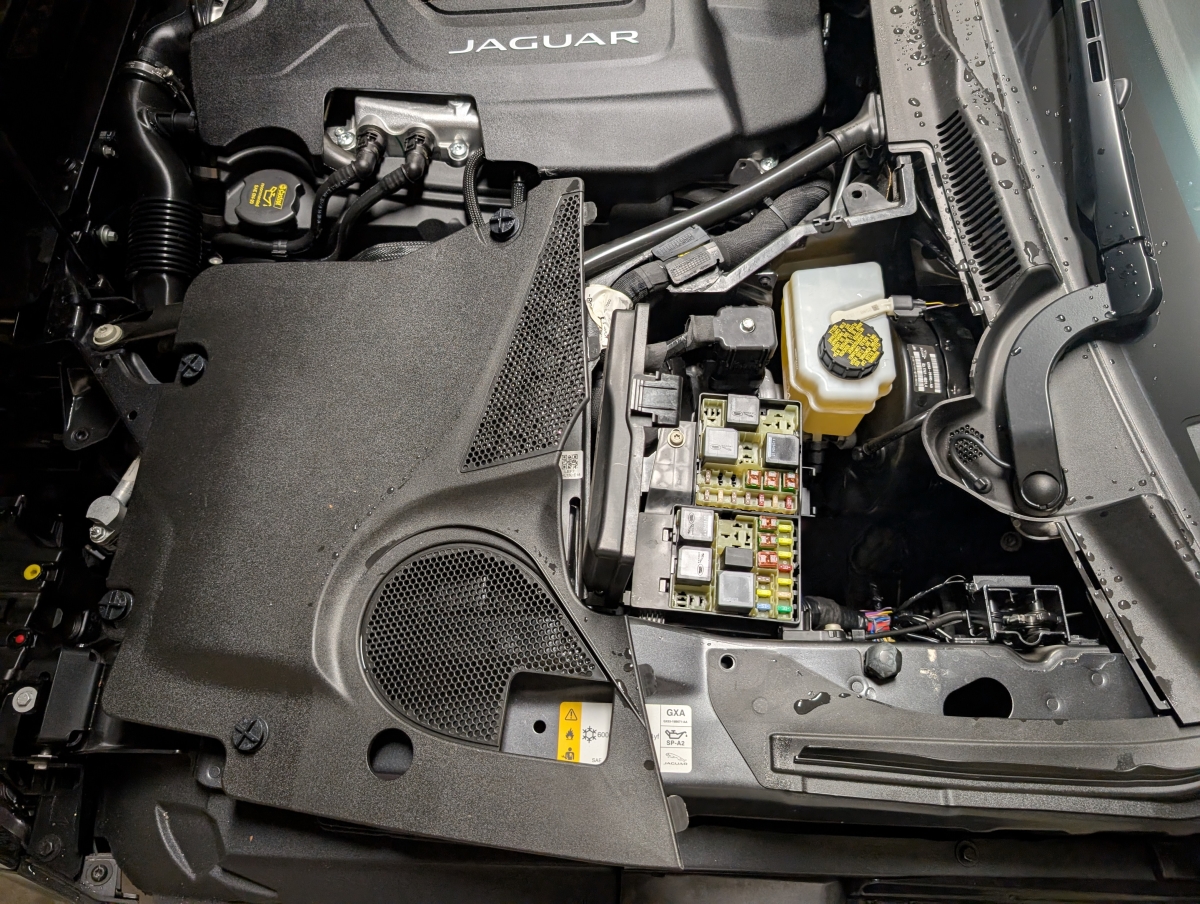

Fuse 15, power for exhaust valve actuators- when removed you get the awesome sound all the time, keep the fuse in the glove box for times when a more subtle exhaust sound is desired
Oil Analysis performed by Blackstone Laboratories, DIY Services recorded on Carfax and
My WWW Garage

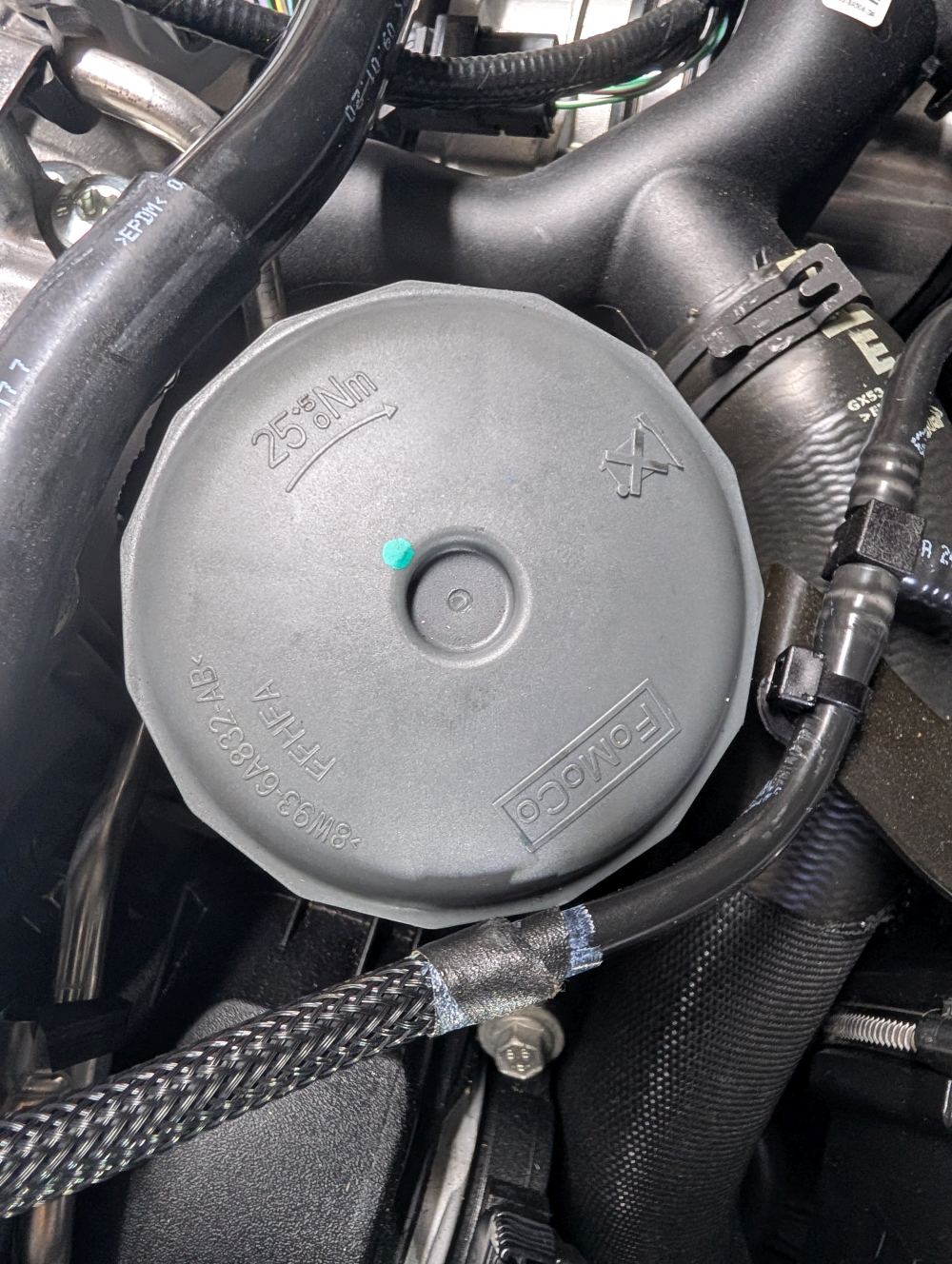

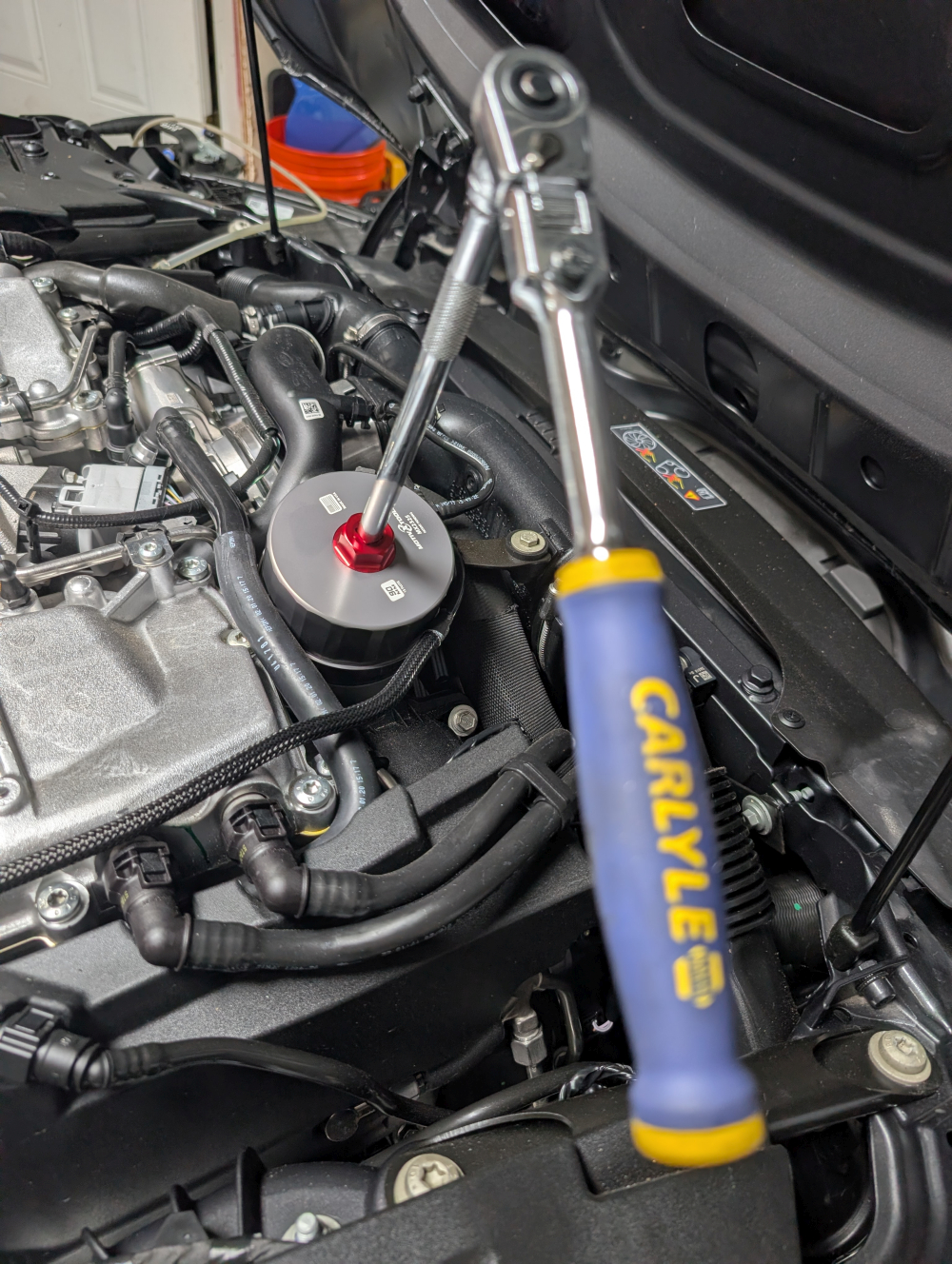

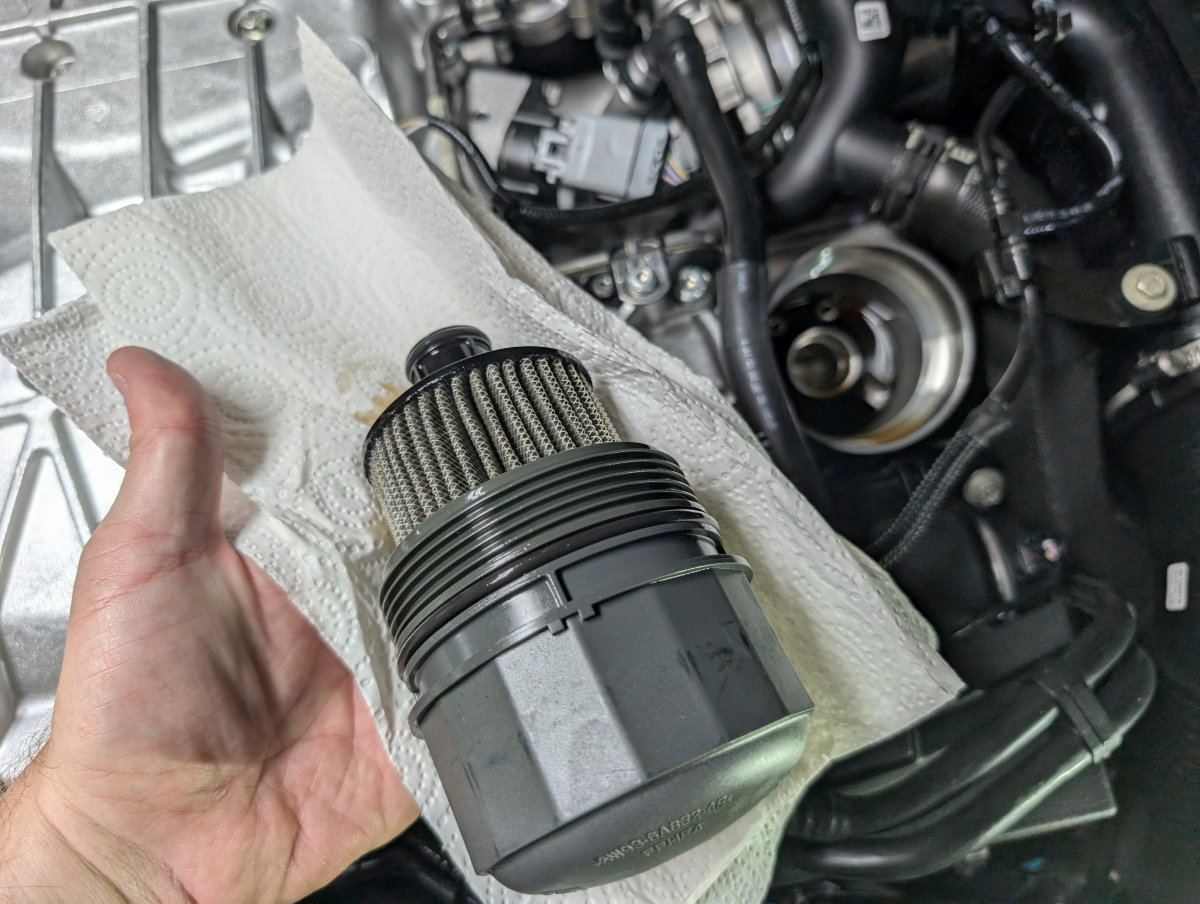

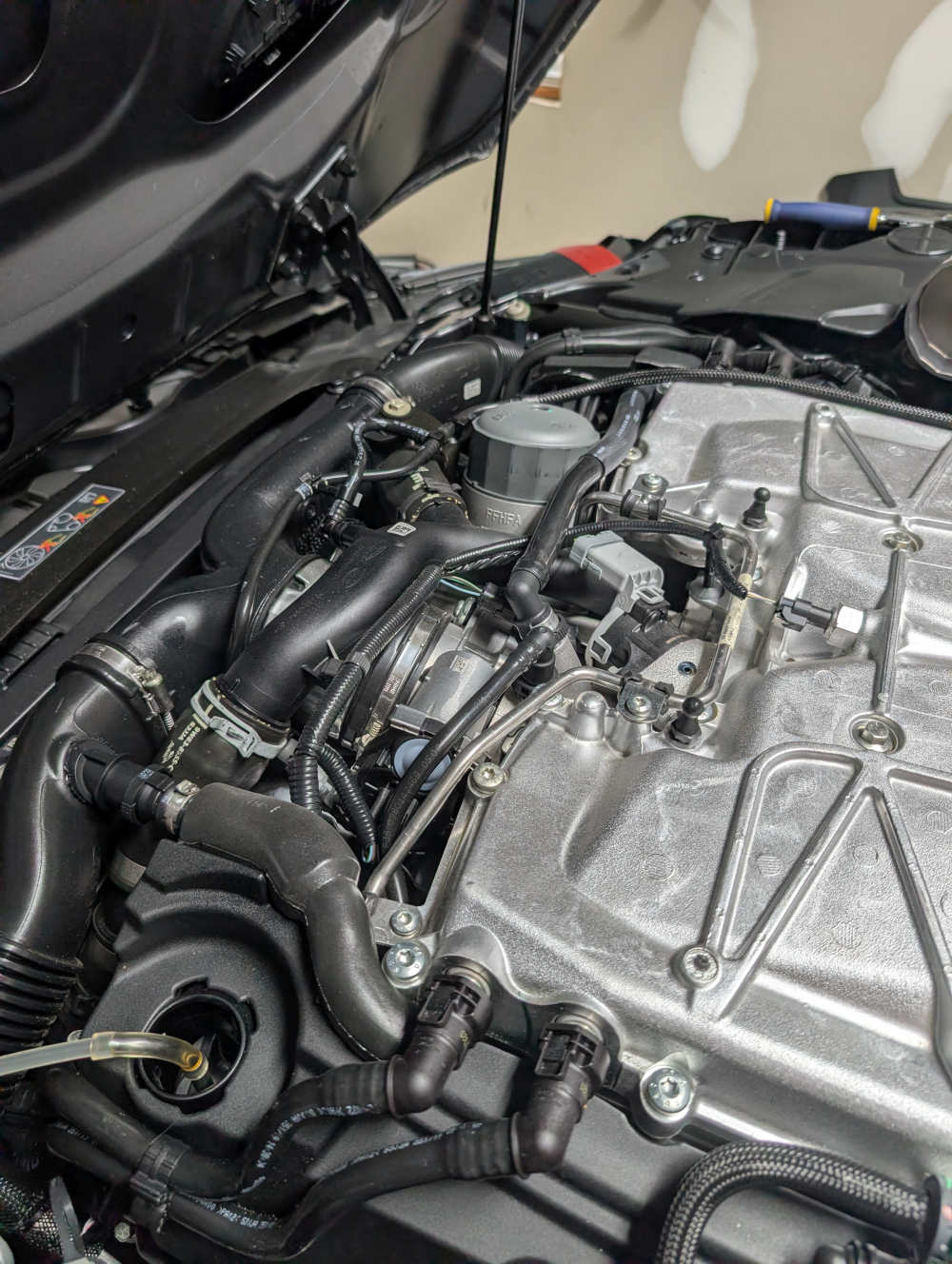

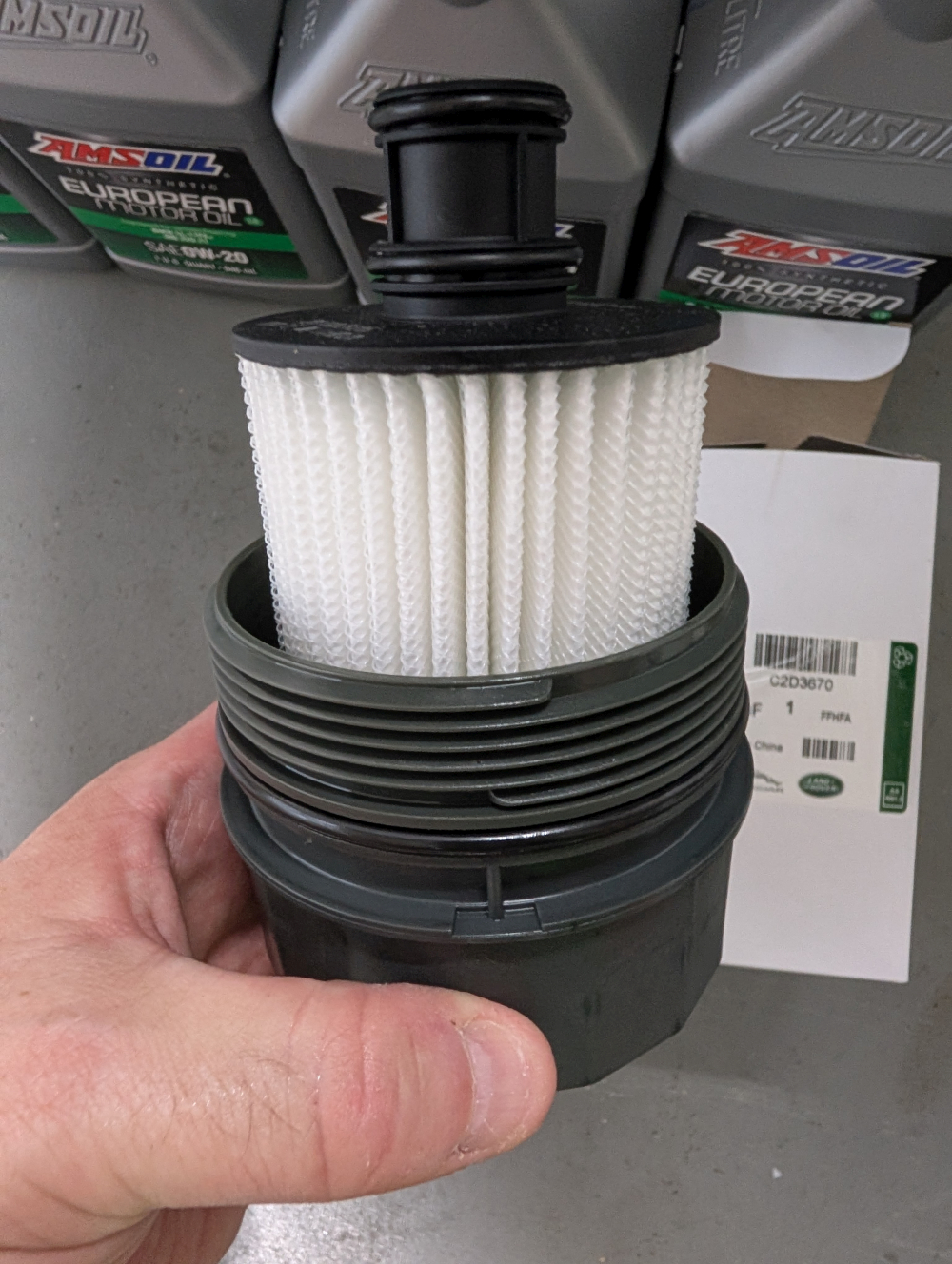

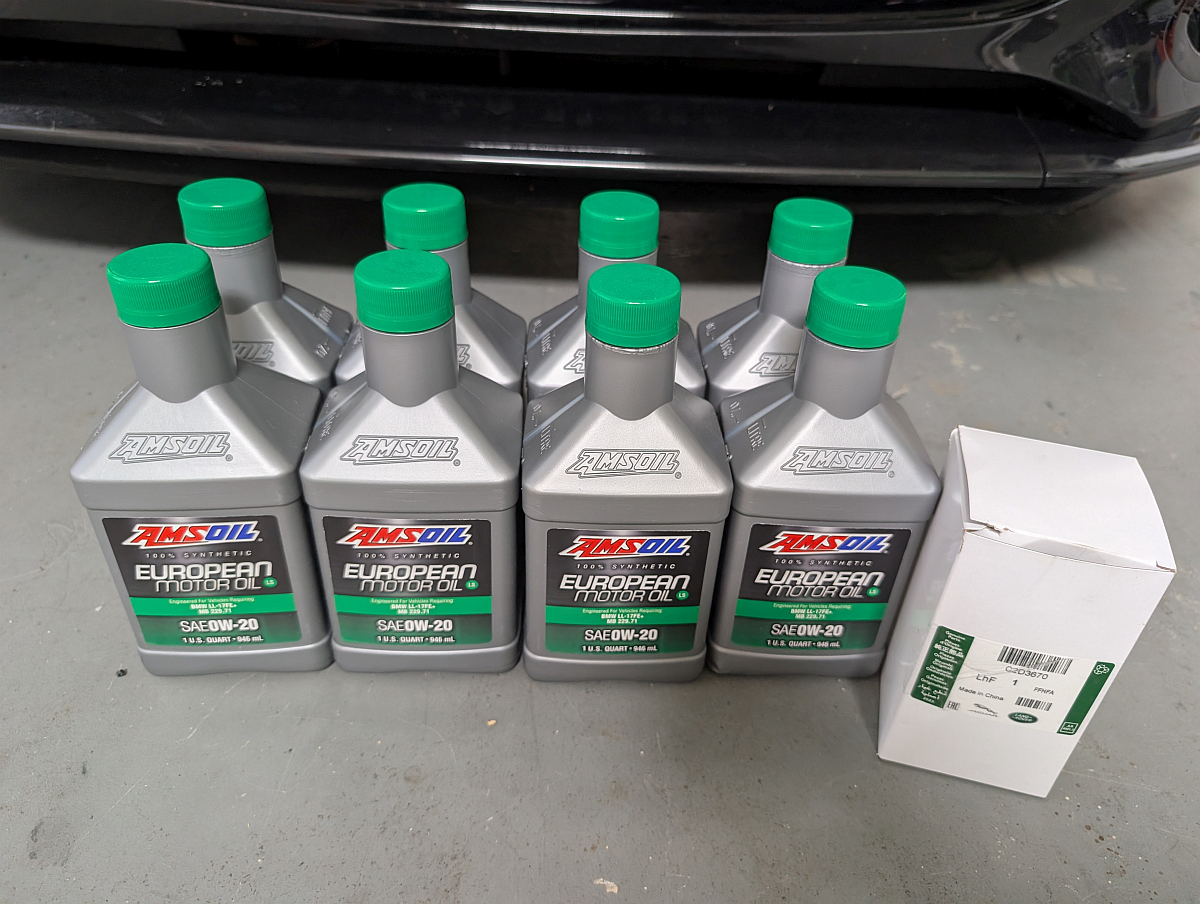

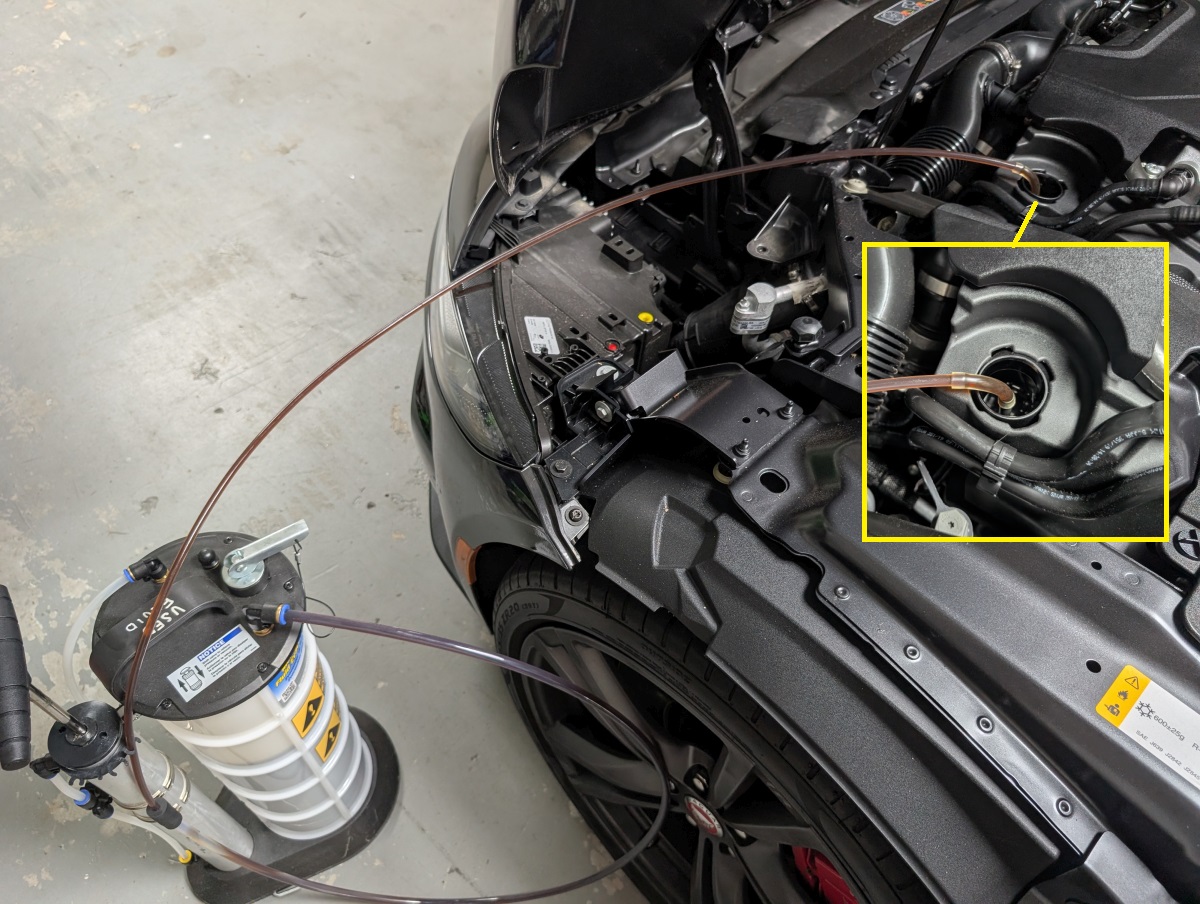

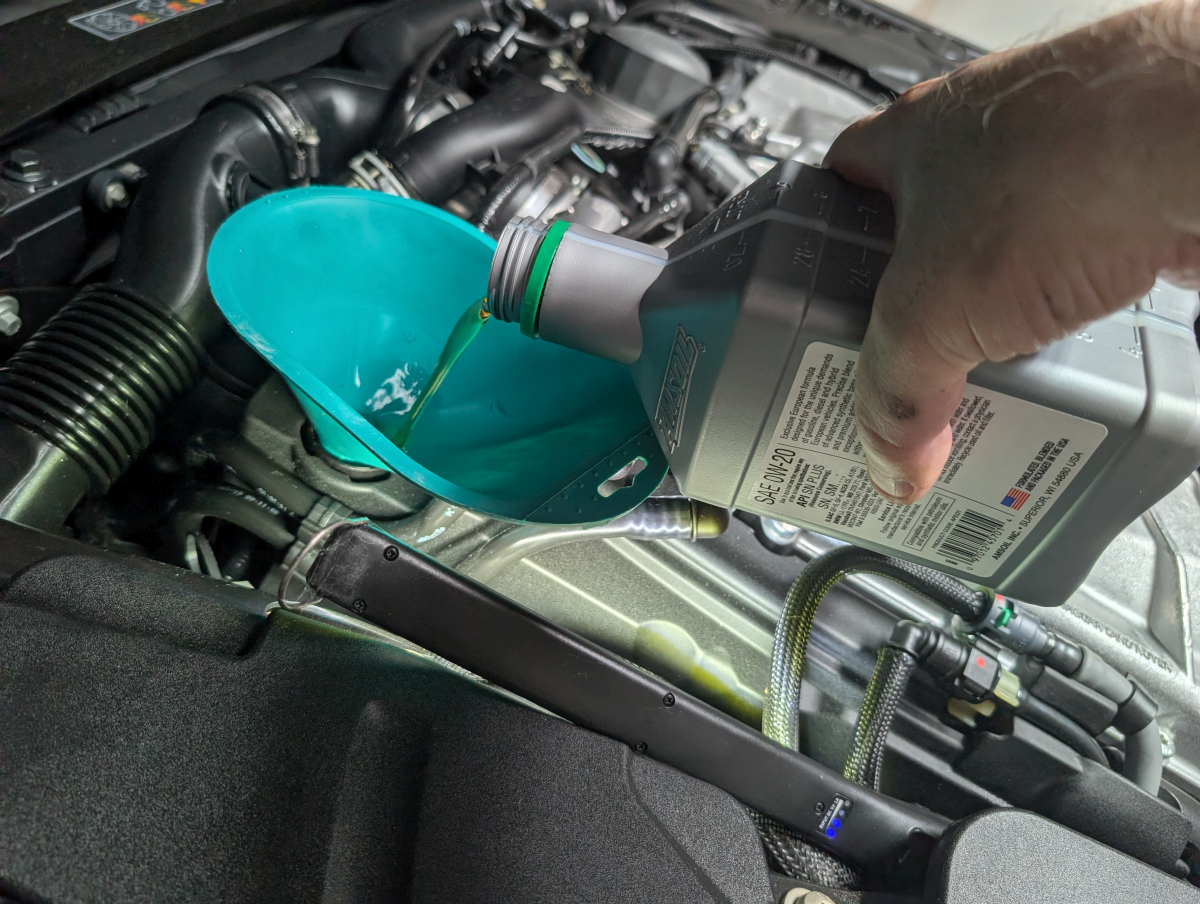

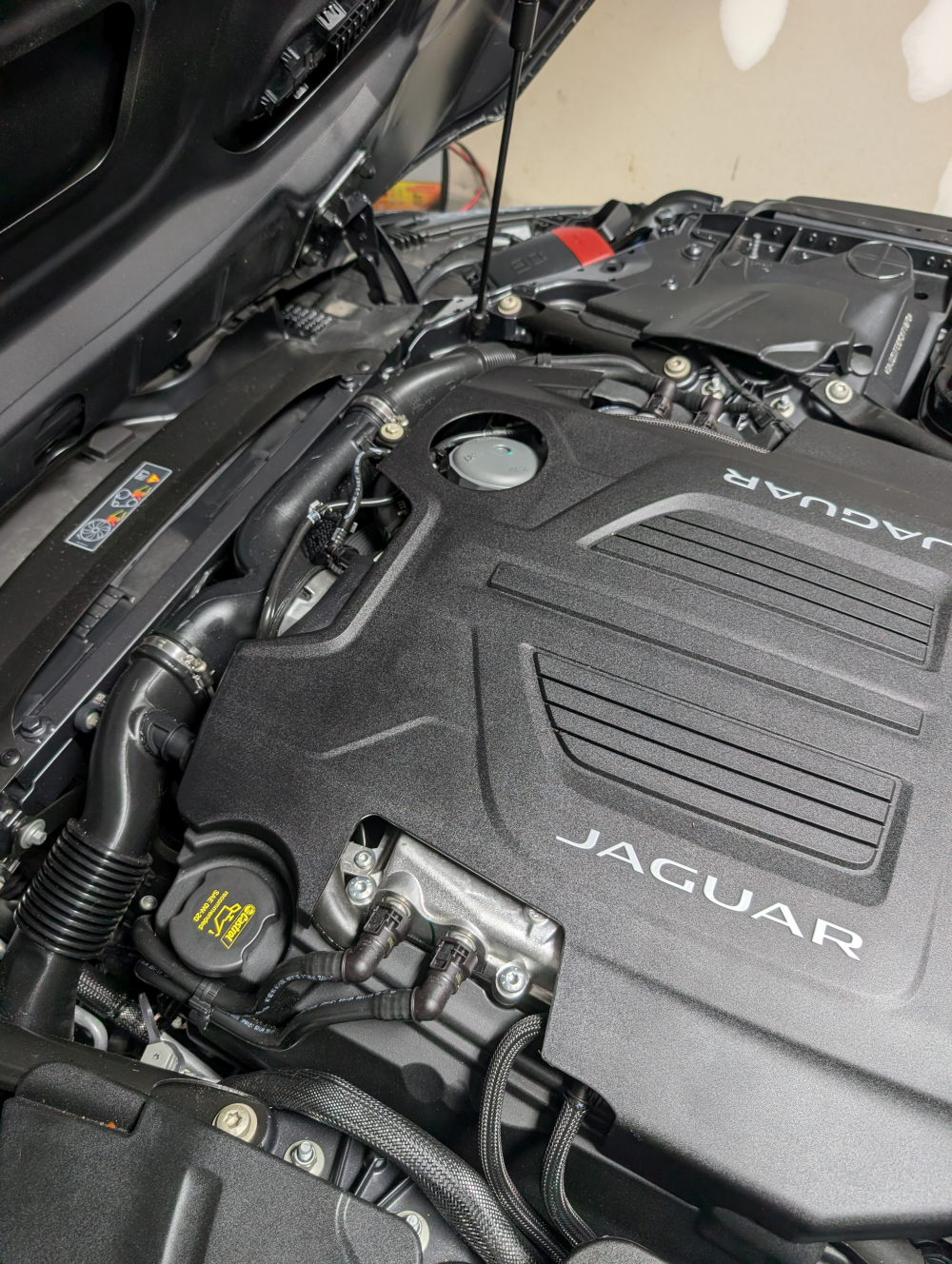

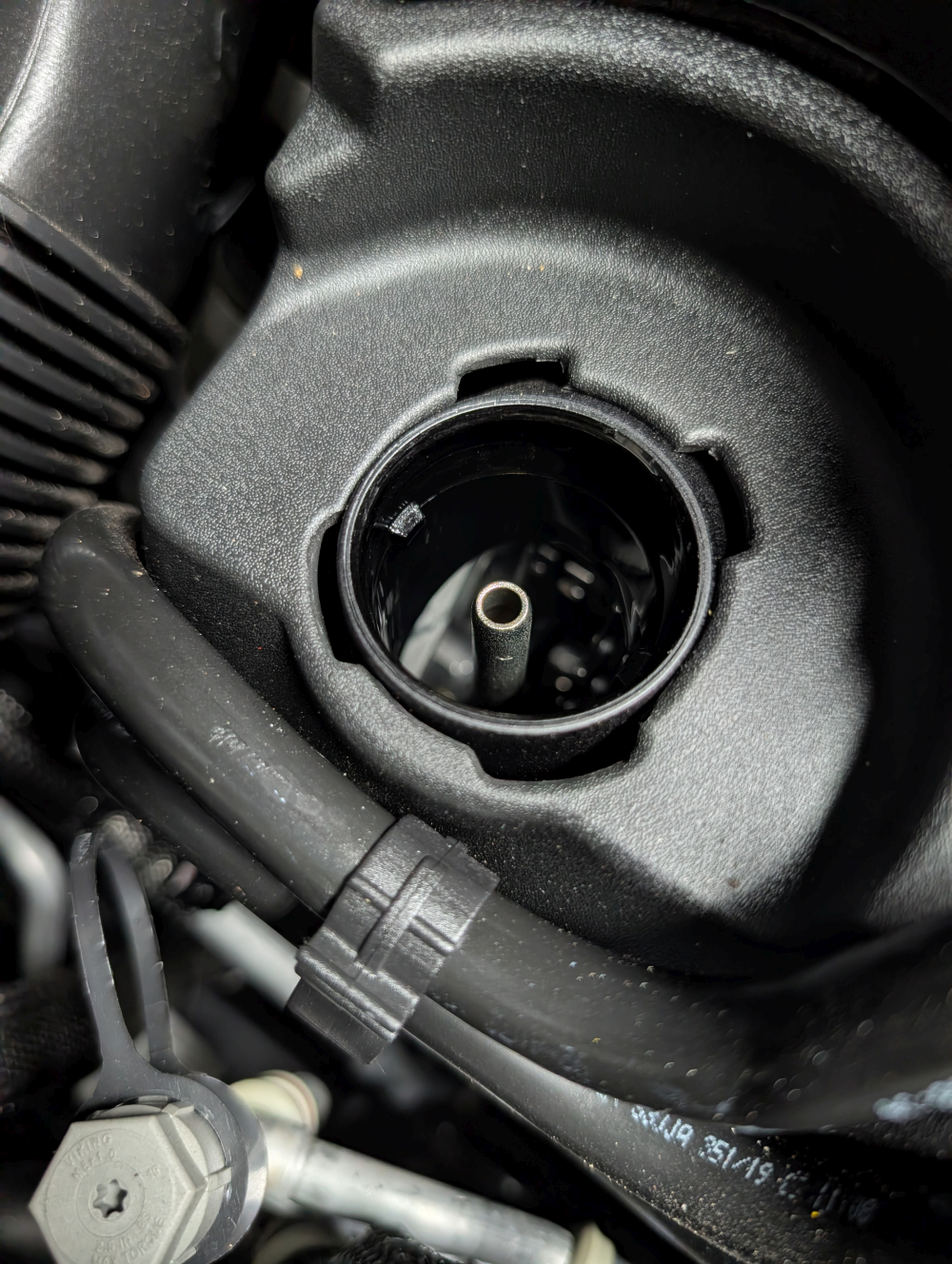

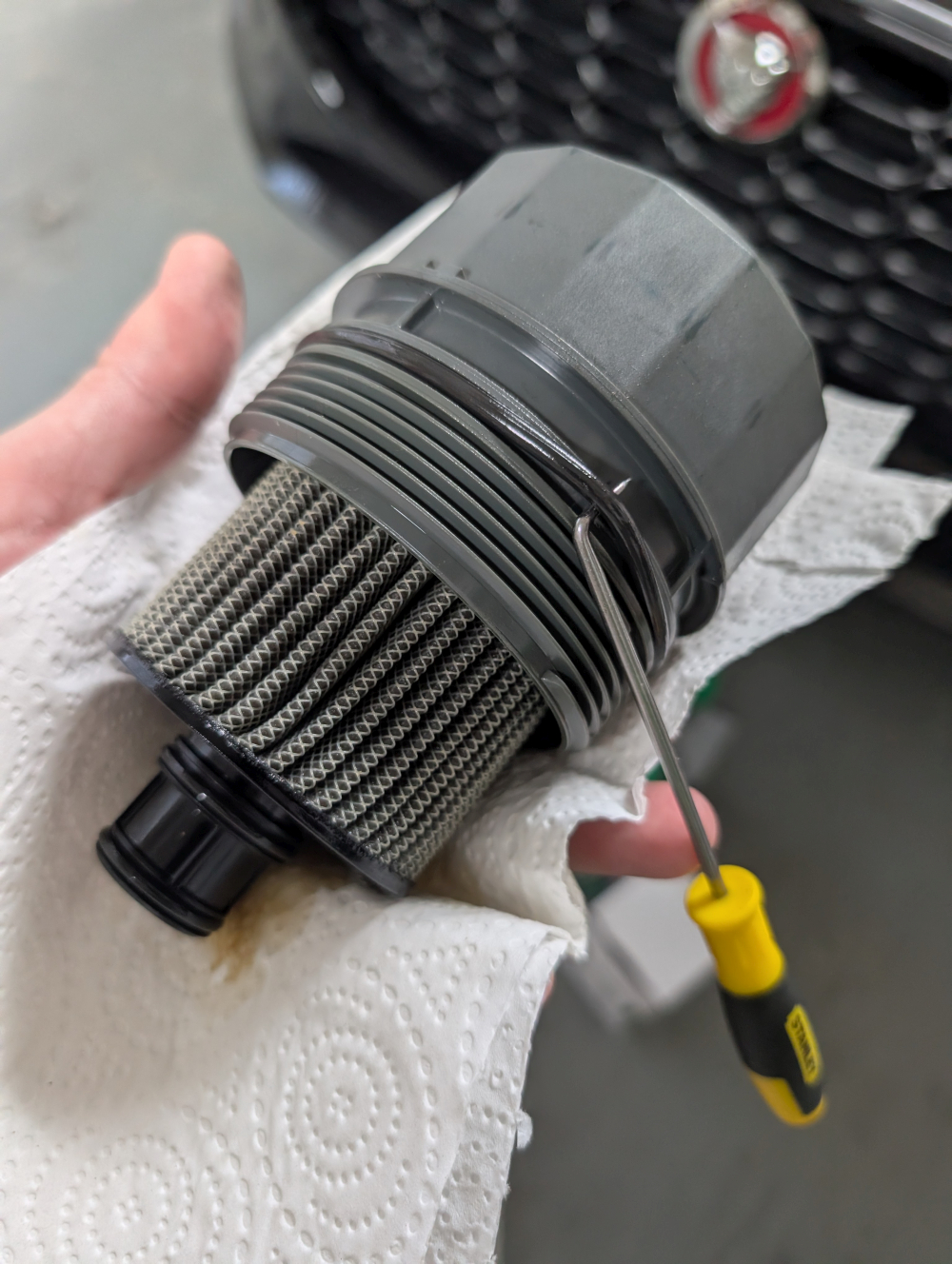

Engine Oil Change at xxxx miles- OE 0w20 - Prior Ownership, NO SAMPLE TAKEN
Jaguar F-Type Documents/Files:
2021 Jaguar F-Type R Owners Manual ONLINE
2021 Jaguar F-Type Press Package
2024 Jaguar F-Type Checklist/Maintenance Schedule (Thanks JaguarForums crowsash for sharing!)
Technical Introduction- NP10-V8JLR: AJ133 5.0 Liter DFI V8 Engine
Jaguar F-Type Reviews/Articles:
Road&Track- Jaguar Knows That Beauty Still Matters
CARandDRIVER- 2021 Jaguar F-Type
CARandDRIVER- 2021 Jaguar F-Type R Puts on a Brave New Face
MotorTrend- 2021 Jaguar F-Type R AWD Review: Look at Me!
evo- Jaguar F-Type (2020 - 2024) facelift review - flying the flag for the great British sports car
evo- Used Jaguar F-Type (2013 - 2024) review and buyer's guide
AutoWeek- The Jaguar F-Type Flaunts a New Face but Still Burbles and Coughs
WindingRoad- Review: 2021 Jaguar F-Type R - Jag's Wildest Creation Yet?
Robb Report- First Drive: The Nimble 2021 Jaguar F-Type Is an Inspired Bid Against Conformity
Hagerty- Review: 2021 Jaguar F-Type R
MotorAuthority- 2021 Jaguar F-Type First Drive Review: All the Feels
PistonHeads- 2020 Jaguar F-Type R Review
car- Jaguar F-Type long-term test: the half-year verdict
car- Jaguar F-Type R 75 review: farewell to Jaguar's V8 icon
TopGear- Jaguar F-Type R review: 100k sports car tested
TopGear- Jaguar F-Type R - long-term review [REPORT 1]
TopGear- Jaguar F-Type R - long-term review [REPORT 2]
TopGear- Jaguar F-Type R - long-term review [REPORT 3]
TopGear- Jaguar F-Type R - long-term review [REPORT 4]
TopGear- Jaguar F-Type R - long-term review [REPORT 5]
TopGear- Jaguar F-Type R - long-term review [REPORT 6]
TopGear- Jaguar F-Type R - long-term review [REPORT 7]
TopGear- Thrills without the Bills: the Jaguar F-Type V8
OppositeLock- Eight months of Jaguar F Type ownership how is it going?
Driving- Millennial Mom's Review: Are kids allowed in the Jaguar F-Type? | Reviews
CNET- The 2023 Jaguar F-Type and the Perils of Growing Up
The London Economic- Jaguar F-Type 575 review: standing the test of time
MotorTrend- The 2024 Jaguar F-Type Is the Burn-Off For Jag's Gasoline Sports Cars
CARandDRIVER- Jaguar F-Type Bids Farewell with 75 Special Edition for 2024
Scott Galloway- Killing the Cat
CARBUZZ- The Death Of The Jaguar F-Type Is The End Of An Era In More Ways Than One
GQ- The iconic Jaguar F-Type gets the final send off it deserves
AutoGuide- 2024 Jaguar F-Type R 75 Review: Do Not Go Gentle
Jaguar- IT WON'T GO QUIETLY: UNMISTAKEABLE JAGUAR F-TYPE V8 SOUND PRESERVED IN BRITISH LIBRARY
Jaguar F-Type Video: *High Speed Connection Recommended*
VIEZU Technologies- The Ultimate Guide To Buying A Jaguar F-type!
Wraptor- These Cheap Plastic Parts Can Cost Jaguar Owners 10,000+
How they made the Jaguar F-Type, from the people that made it happen | The evo podcast | Episode 22
Machina- How The Jaguar F-TYPE Is Made | How To Build A Motorcar | Episode 2/6
Machina- The Racing History Of Jaguar | Racing Through Time | Full Documentary
Nick Sanders/Jaguar- Good to be Bad
Dan Stuart- 2020 Jaguar F-Type Feature Tutorial (applies to facelift models as well)
TheSmokingTire- The 575HP 2021 Jaguar F-Type R is Much More Than a Facelift - One Take
Speeed- Jaguar - The FULL Story of What Happened
Extra Throttle House- 2022 Jaguar F-Type R Review // Don't Buy That 911 Just Yet
Easy Car Buying- The END Of Jaguar Cars
Evolution of Jaguar "Its Good to be Bad"
Josh Jones - I finally understand why my dad chose this car over a 911
AutoTrader- Jaguar F-Type R 75: "The LAST Real Jag"?
I Do Cars - 500HP Jaguar Land Rover 5.0L Supercharged AJ V8 Teardown
Jaguar F-Type DIY Guides/Installation Instructions:
Jaguar F-Type R Maintenance Schedule (Jaguar Owners Website)
GAP DIAGNOSTIC WEBSITE (IIDTool and Adapter required for F-Type)
JLR TOPIX (Register as Independent Operator)
BillsWebSpace: V1 Installation and Wiring for 2021 Jaguar F-Type X152
JaguarForums- Lift and Jack Points Thread
JaguarForums- DIY Oil Change with MityVac
Hazy - Jaguar F-type R Oil Change - Extraction vs. Drain Plug
SuperSportMTL - Jaguar F-Type Oil Change DIY
JaguarForums- Checking Oil Level
JaguarForums- What's the approximate window for checking oil level (also way for real time check)
JaguarForums- Fuse 15 and Exhaust Valves (PSA on fuse 15 removal HERE and Fake noise through speakers thread HERE, fix HERE)
JaguarForums SteveGZ- NGPTSQ engine sounds from speakers
JaguarForums Thunder Dump- 2021-2024 Electronic Exhaust Valves
JaguarForums DMeister- ASR Exhaust Valve controller install guide
JaguarForums- Coolant Hose Replacement Supercharger Removal
JaguarForums- DIY Supercharger Oil Change (XKR forum thread on V8 SC Oil Change HERE)
VIEZU Technologies- Supercharger Knocking? Here's What a Failed Coupler REALLY Sounds Like!
JaguarForums- 2016 F-Type R - Supercharger Isolator
JaguarForums- Noisy supercharger after solid coupler installed
JaguarForums Therock88- F-Type R AWD Transfer Case Fluid Change DIY (Forum thread HERE)
JaguarForums Therock88- F-Type R AWD Rear Differential Fluid Change (Forum thread HERE)
JaguarForums Therock88- F-Type R AWD Front Differential Fluid Change (Forum thread HERE)
JaguarForums Therock88- Supercharger Oil Change & Extra Project - Symposer Removal!
JaguarForums Therock88- F-Type R Spark Plug / Coil Change DIY(Forum thread HERE)
JaguarForums - Get that Y-Pipe Done! (part numbers list in post#18)
JaguarForums adent - Lower Coolant Outlet Pipe Replacement Guide
JaguarForums Trainingdragon - 2016 F-Type R Coolant Pipe replacement
JaguarForums adent - Failure Rate of "New Style" Coolant Y Pipe
JaguarForums Itismejoshy- HOW TO: Fuel Injector Removal Step-by-Step
JaguarForums Itismejoshy- HOW TO: Motor Mounts
Hazy- Lowering Springs DIY - Jaguar F-Type R - VAP vs. Mina vs. Stock (Forum Thread)
