This 2014 Scion FRS was purchased from Rick Bythewood at Athens BMW. My son had wanted a FRS/BRZ for a while so with his graduation from high school, we figured it was time for a newer car with some warranty....and his first car payment.
Dealer Ad is HERE, CarFax is HERE.

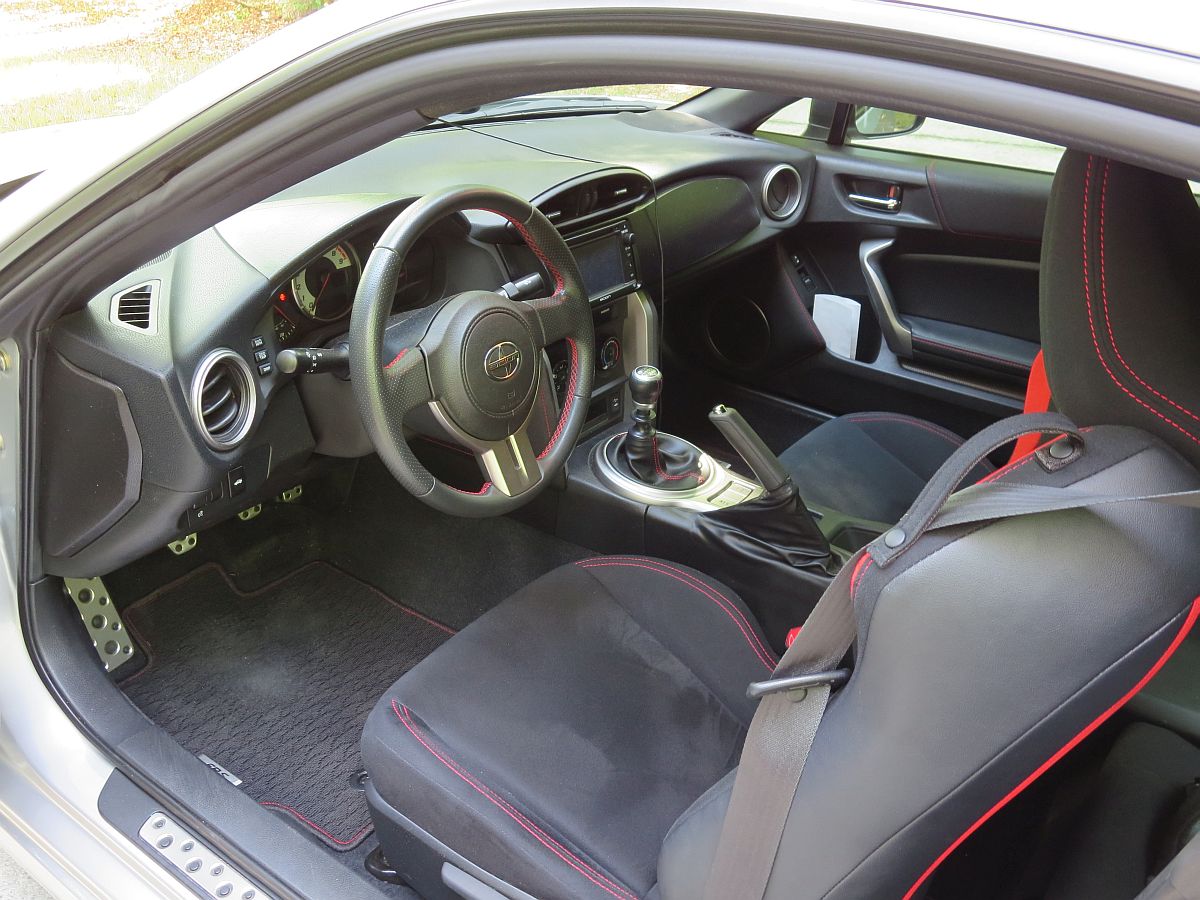

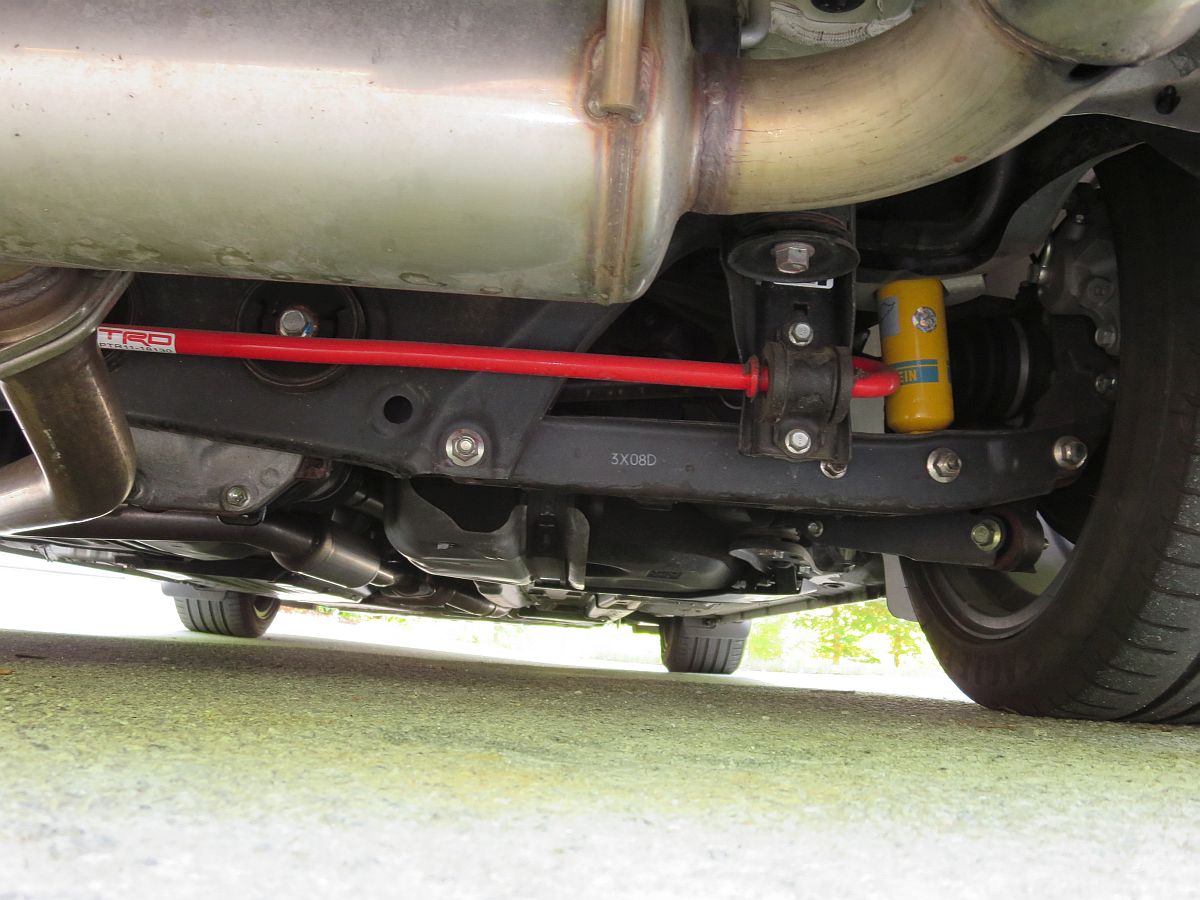

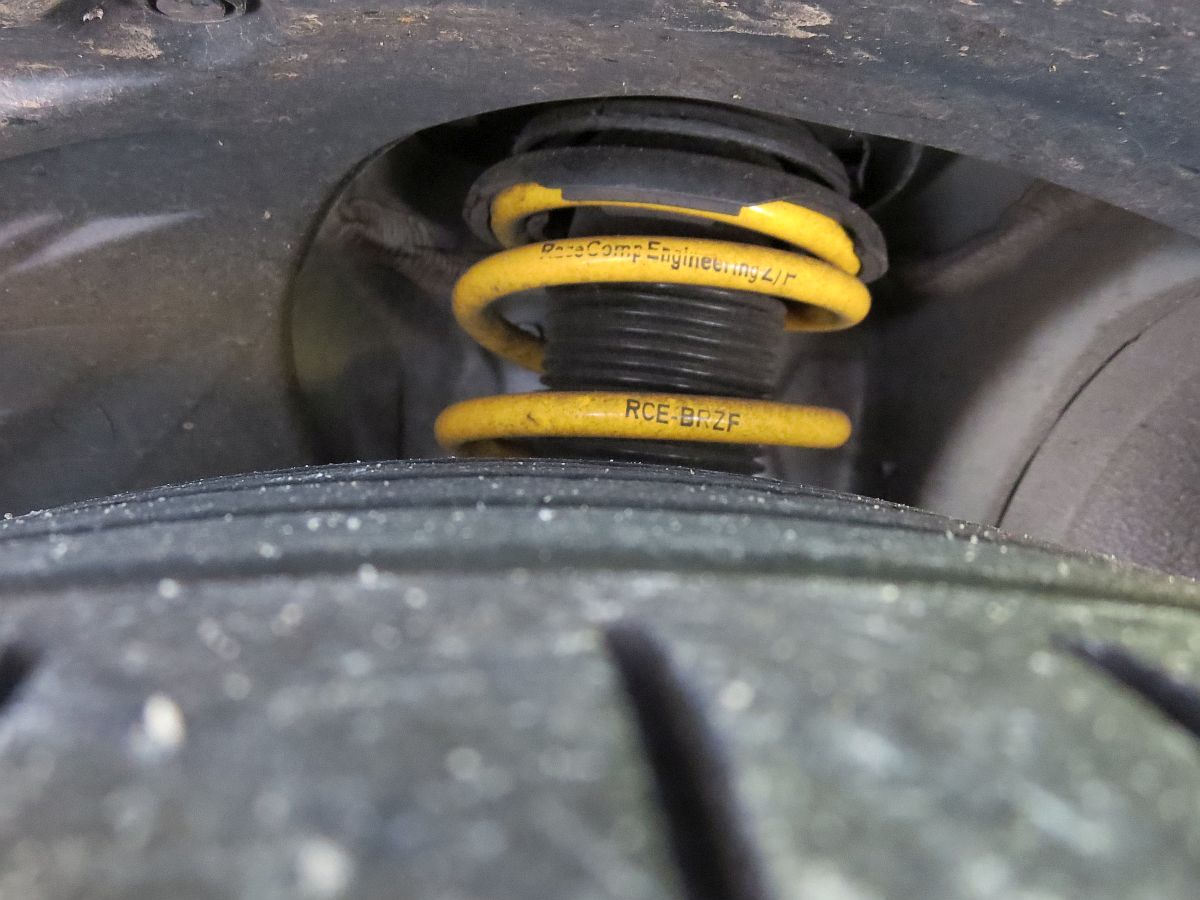

The car had less than 7500 miles on it and the interior was in mint condition.....a few dings we'll take care of later but the best part was the performance items the original owner had installed: Race Comp Yellow Springs/Bilstein B6 Struts and Shocks, TRD Intake/Short Shifter/Exhaust, Enkei RPF1 wheels, and wider 225/45/17 Goodyear F1 Asymmetric 2 tires....

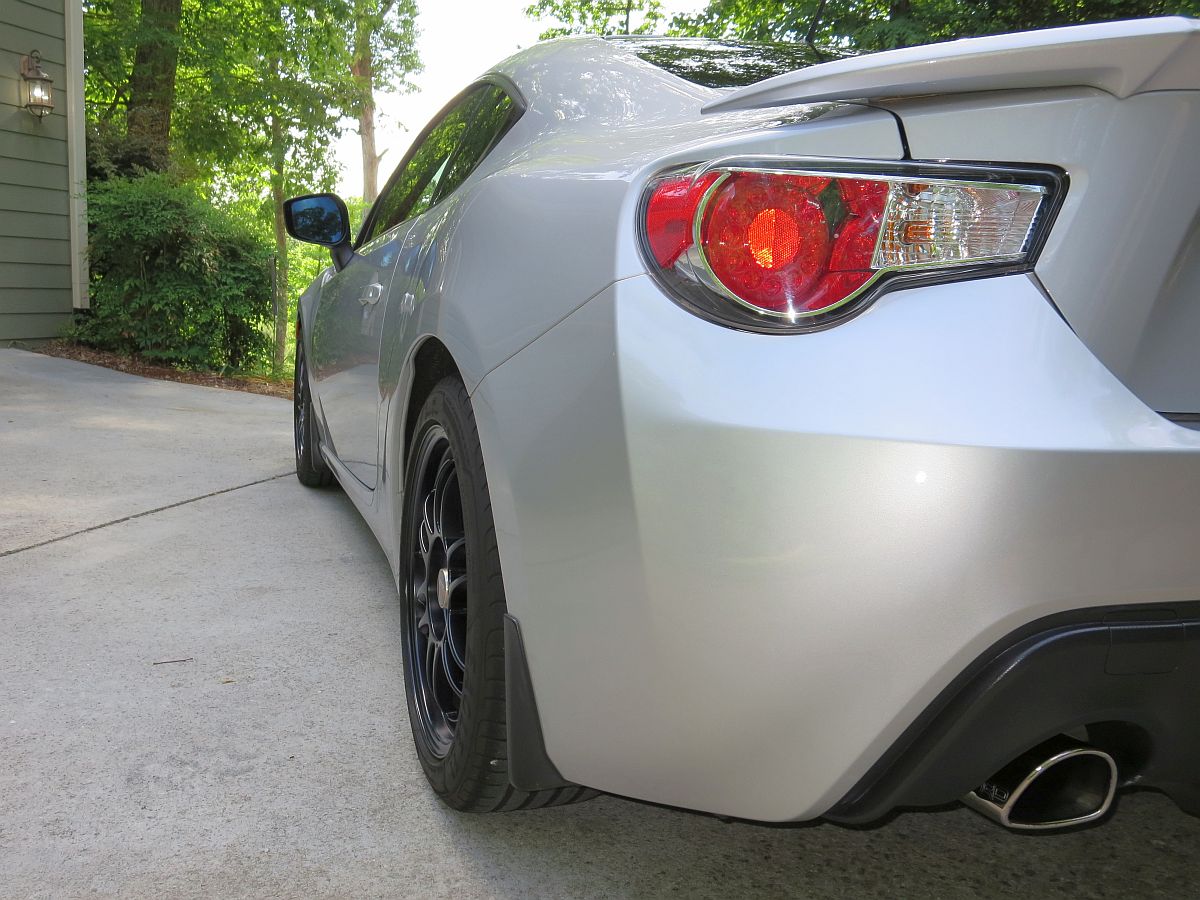

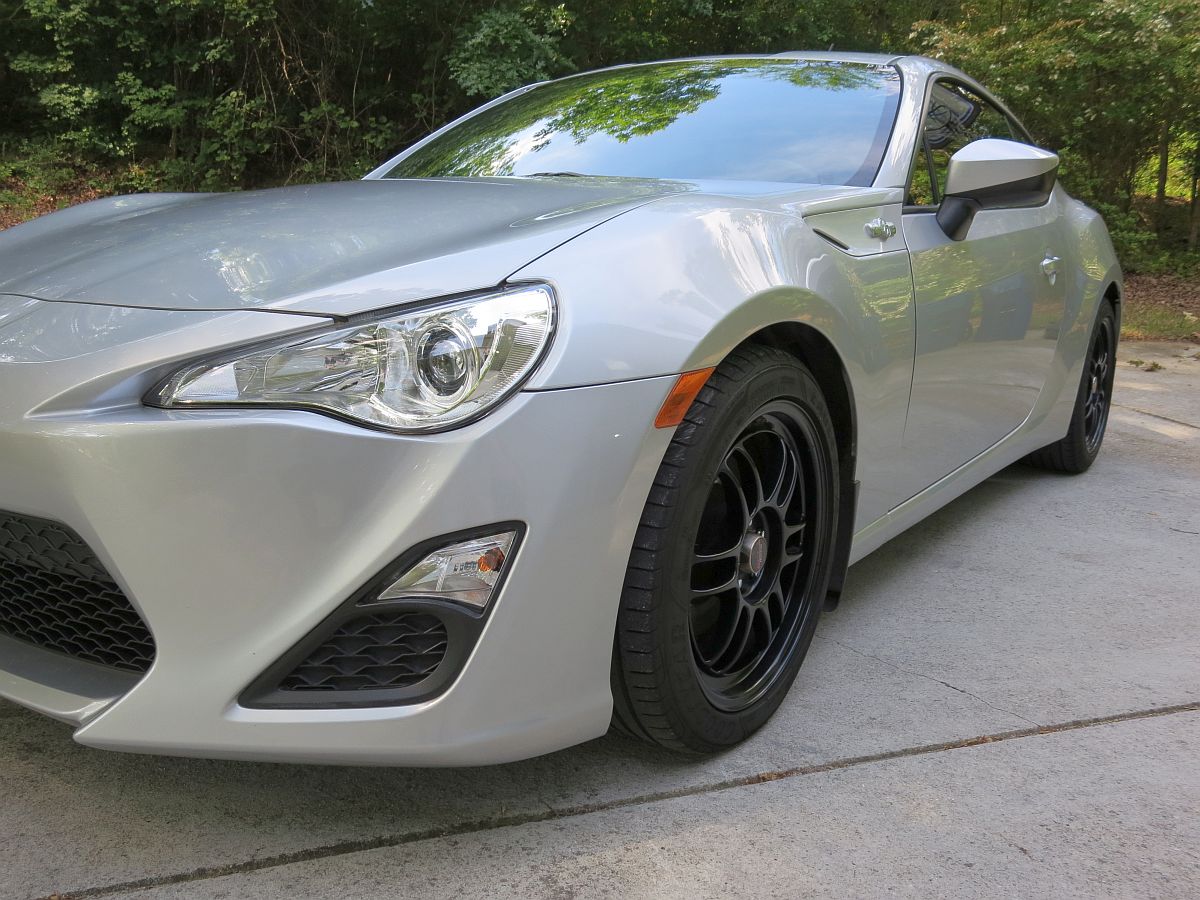

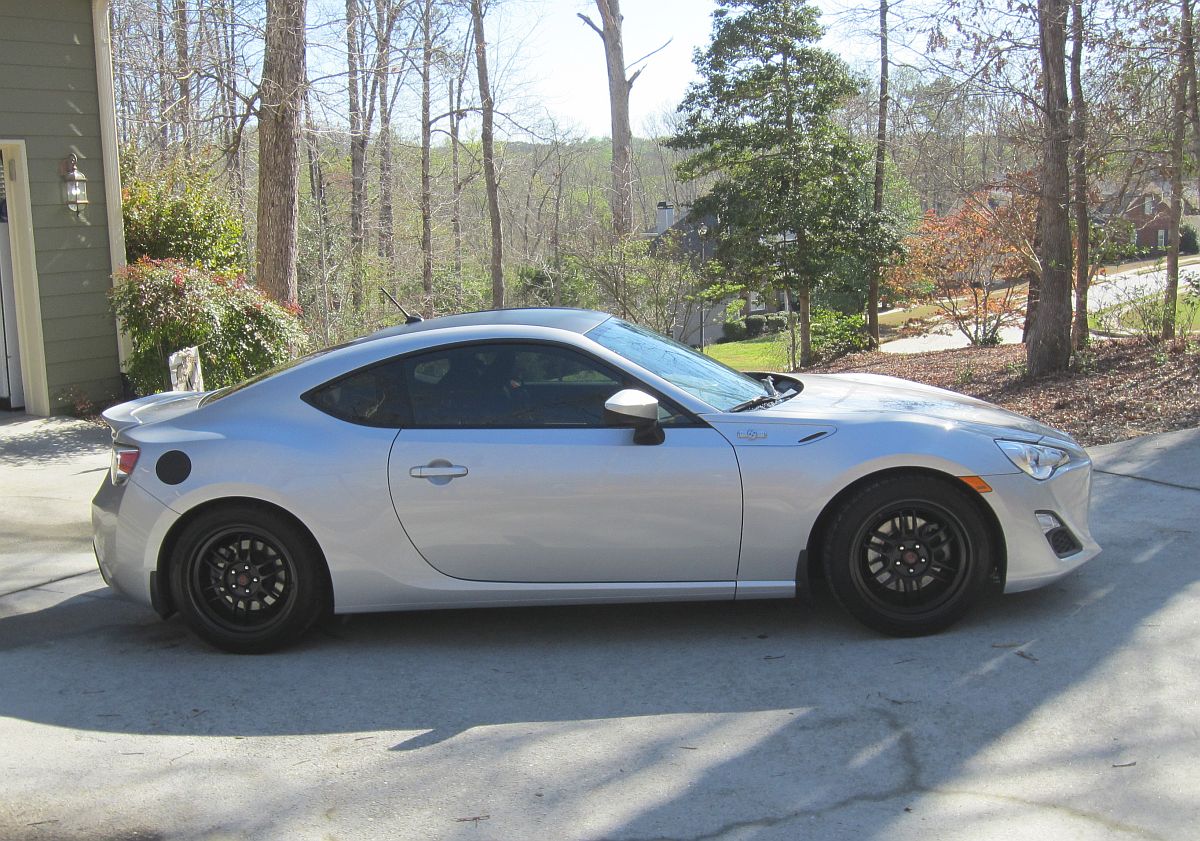

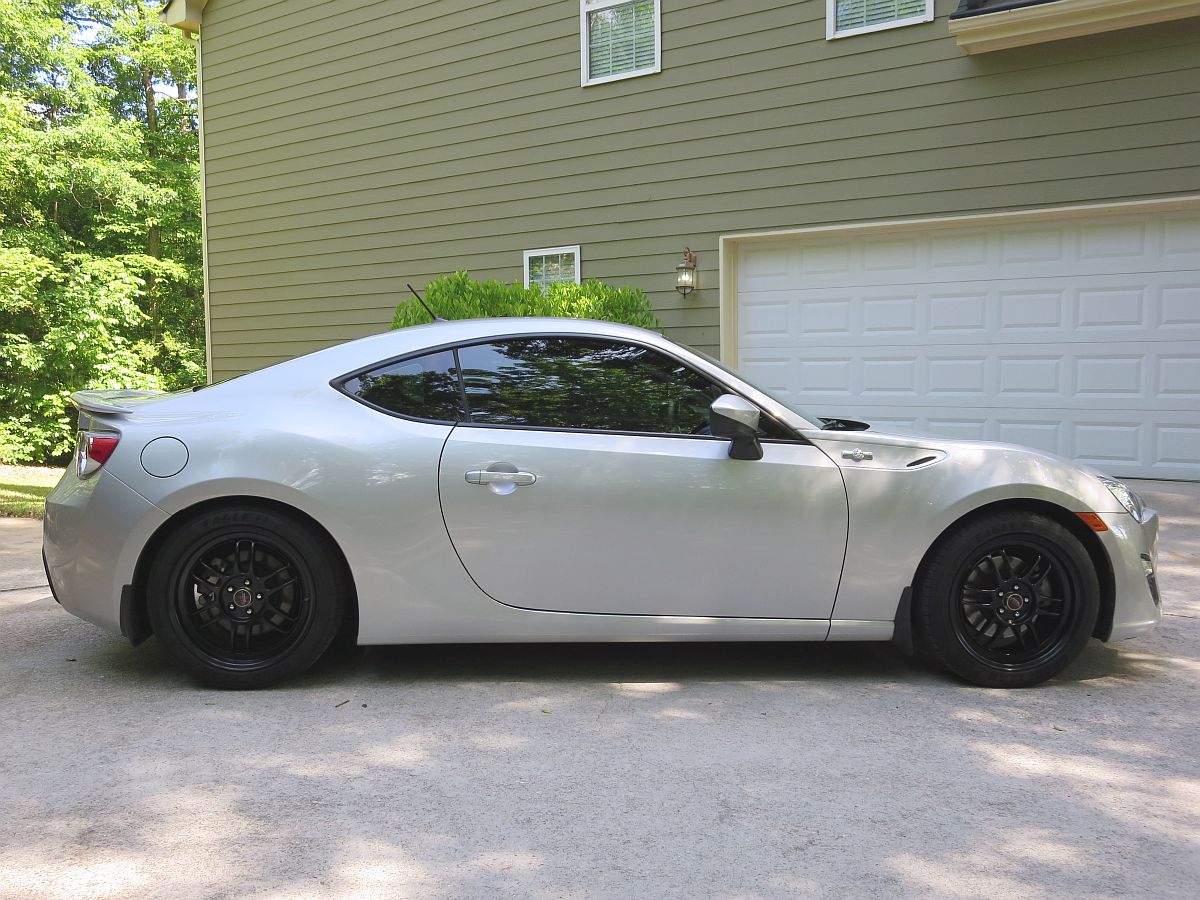

My son and his friend took a few pics the week we brought it home, I took some pics, other pics are in the dealer ad:

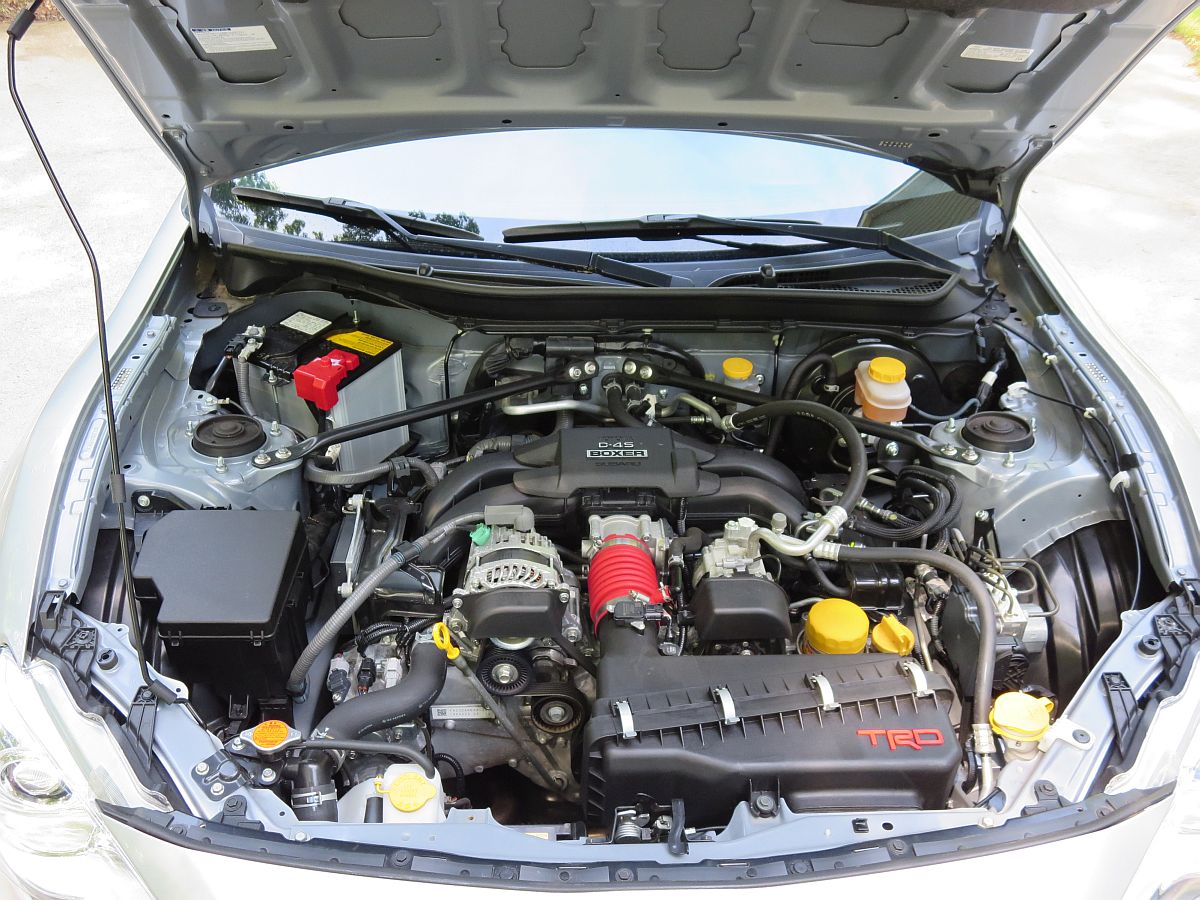

Since it is always a good idea to dump all fluids on a pre-owned vehicle, we decided to change the engine oil/filter, transmission fluid, and differential fluid.....and also installed a Fumoto Oil Drain Valve, P/N F108- follow the installation directions and don't over torque. For the engine: Amsoil Signature Series 0w20 Synthetic Motor Oil

For the transmission: Amsoil Manual Transmission Fluid 75w90 (GL4)

For the Differential: Amsoil Severe Gear 75w90 (GL5) but will use Amsoil Severe Gear 75w110 (GL5) next time- There is a thread HERE (archived HERE) that discusses why 75w110 is the better fluid for the differential


Next up- Audio. We decided on a Rockford Fosgate P1S2-10 (manual HERE, displacement Installation Advisory HERE) powered by a Rockford Fosgate R500x1D digital amplifier (manual HERE, speaker level input Product Advisory HERE) for lows. For highs we wanted speakers that could be run with the factory amplification and chose Rockford Fosgate R14x2 for the front and Rockford Fosgate R1675x2 for the doors (manual HERE, cutout templates HERE). We chose to leave the factory speakers in the rear- this is a budget upgrade.

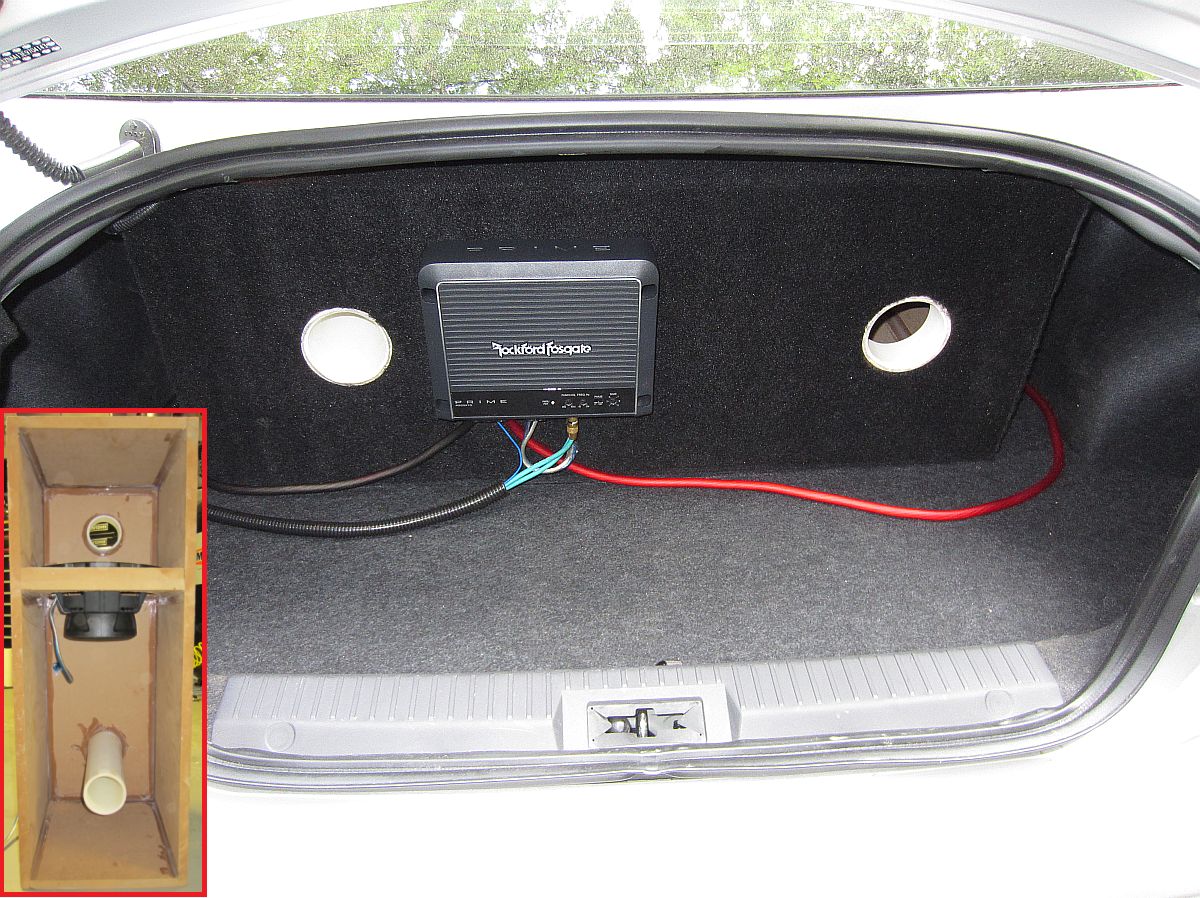

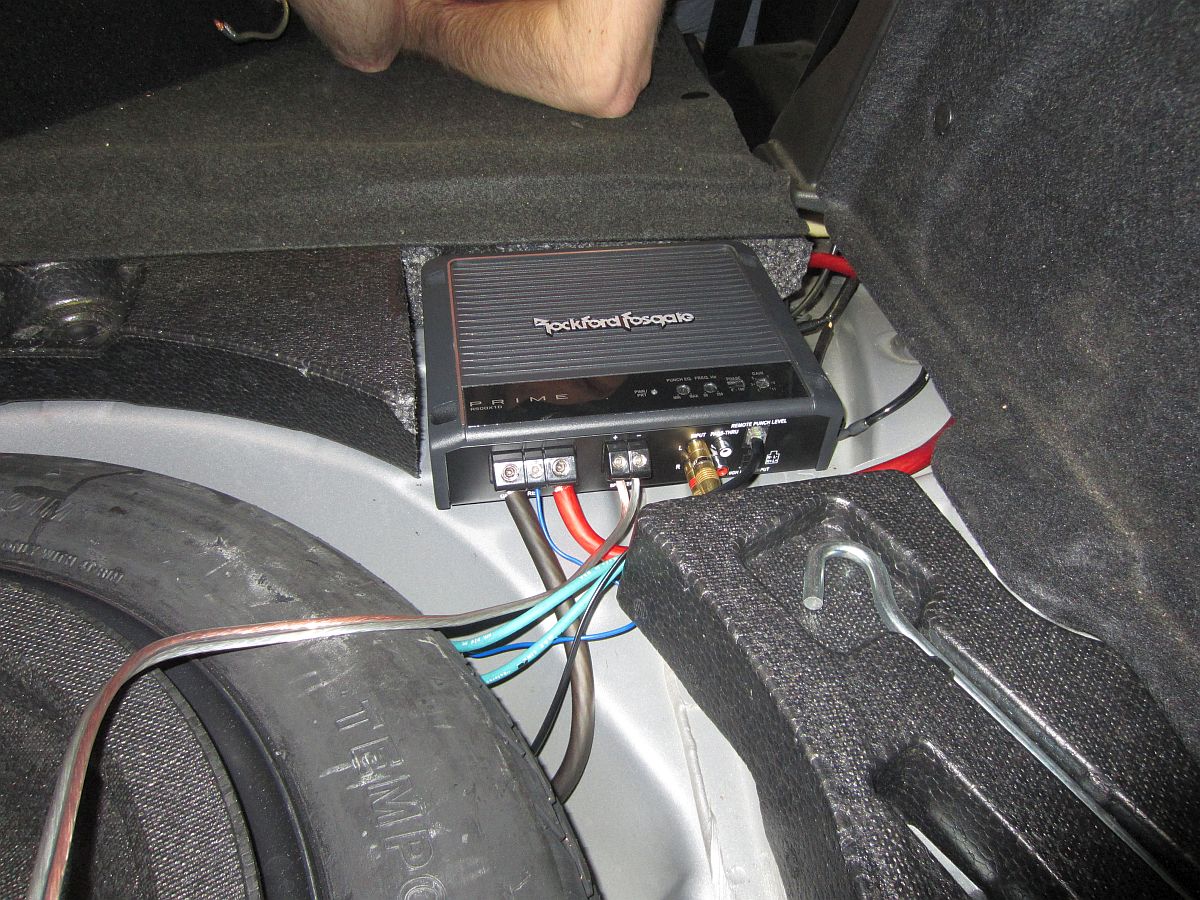

For bass, we decided to build a dual reflex bandpass box (30/80 Hz) for the single RF 10". Not as accurate as a sealed box but LOUD low end....customer was advised on options and chose this path RF 4 gauge wiring kit was used since they still use 100% OFC (Oxygen Free Copper) and not the cheaper and less effective CCA (Copper Clad Aluminum). Power wire was fused and run through grommet next to battery and down the wiring channel to the trunk, ground wire was run to OE amplifier mounting screw in trunk. I decided not to use the high level harness that came with the amp and used a line level converter I had, tapping into the amplifier wiring harness at the plug with ScotchLocks. Still need to hide wiring but wanted to hear the box ASAP. Some information with wiring diagram for factory amplifier can be found HERE. If replacing the factory amplifier, some good information can be found HERE to avoid hacking the factory amplifier wiring harness or having to run new wires.

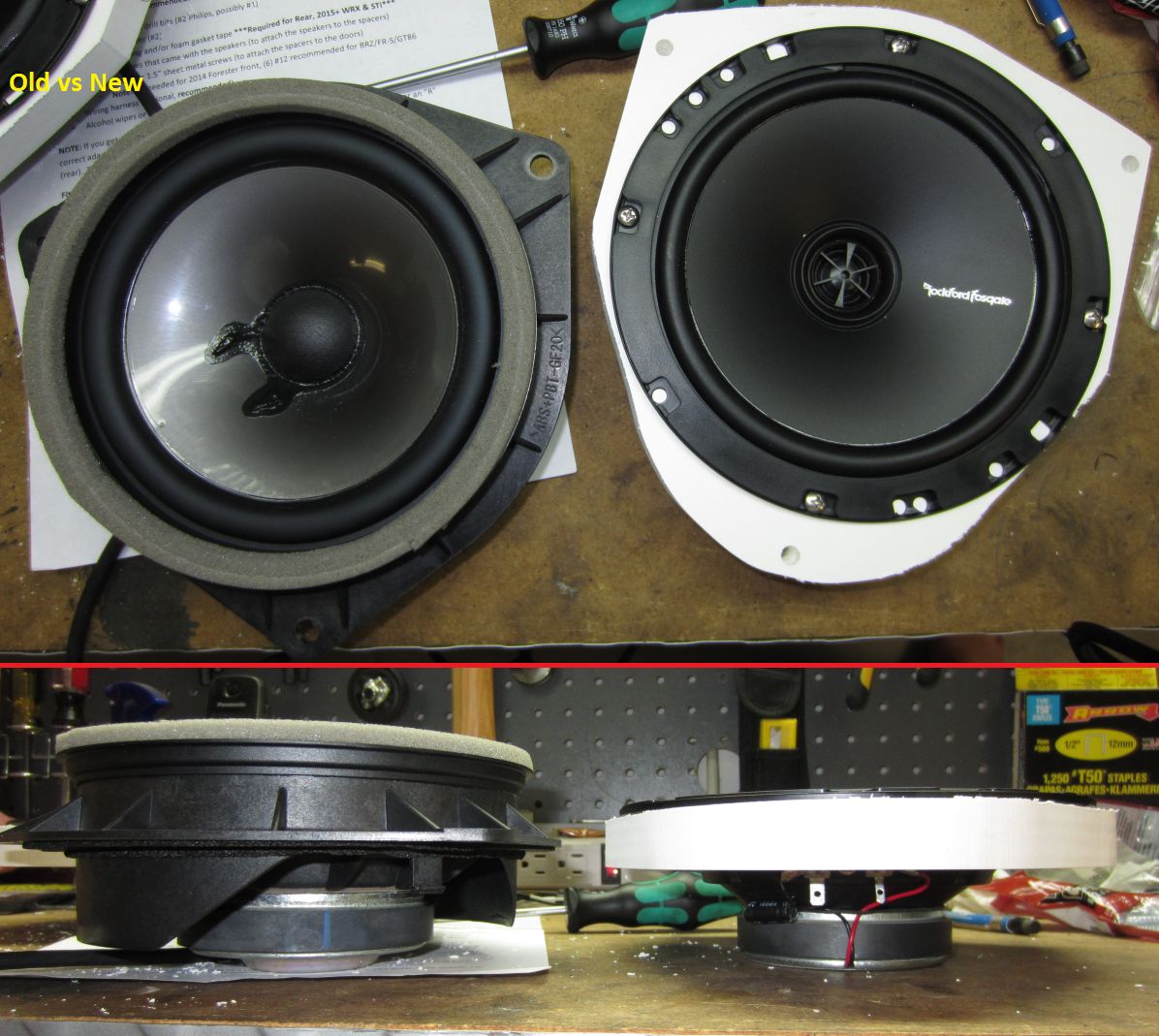

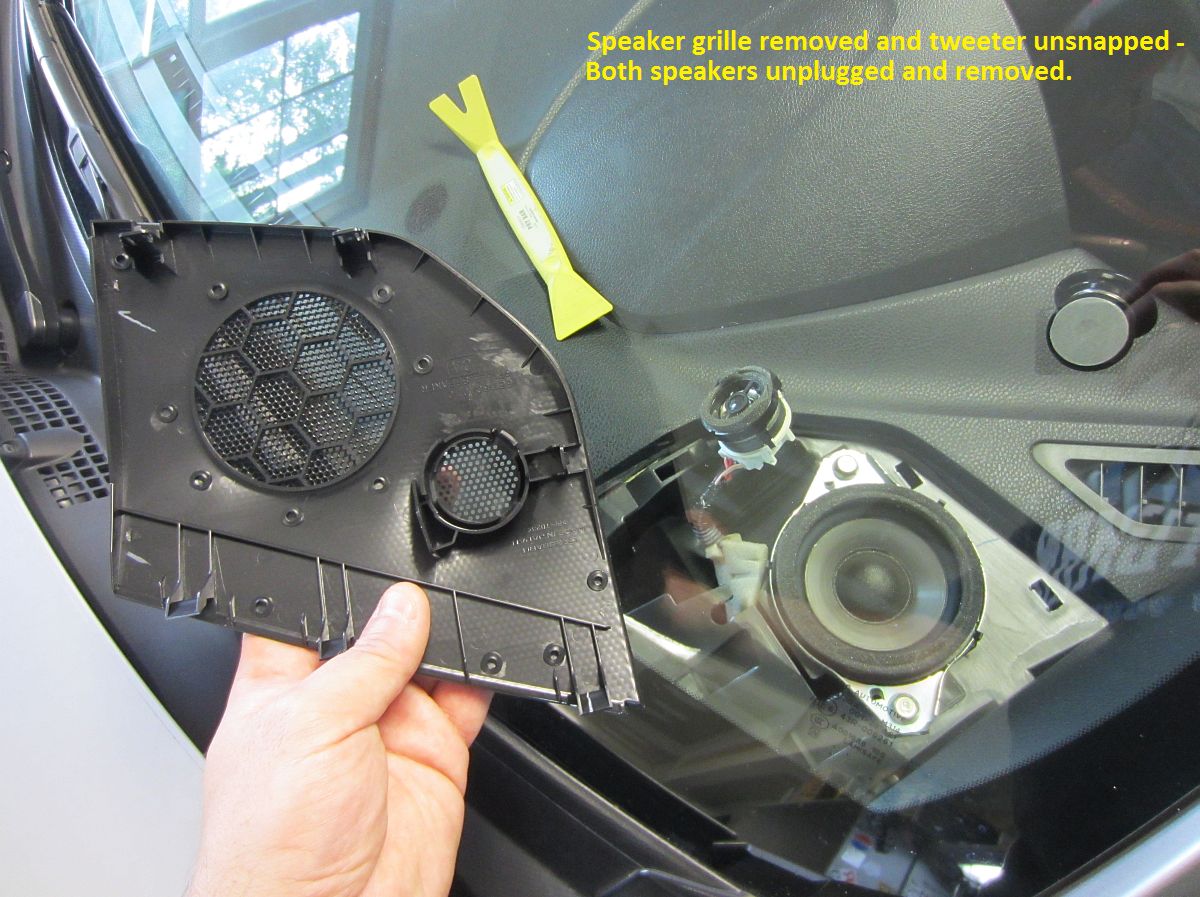

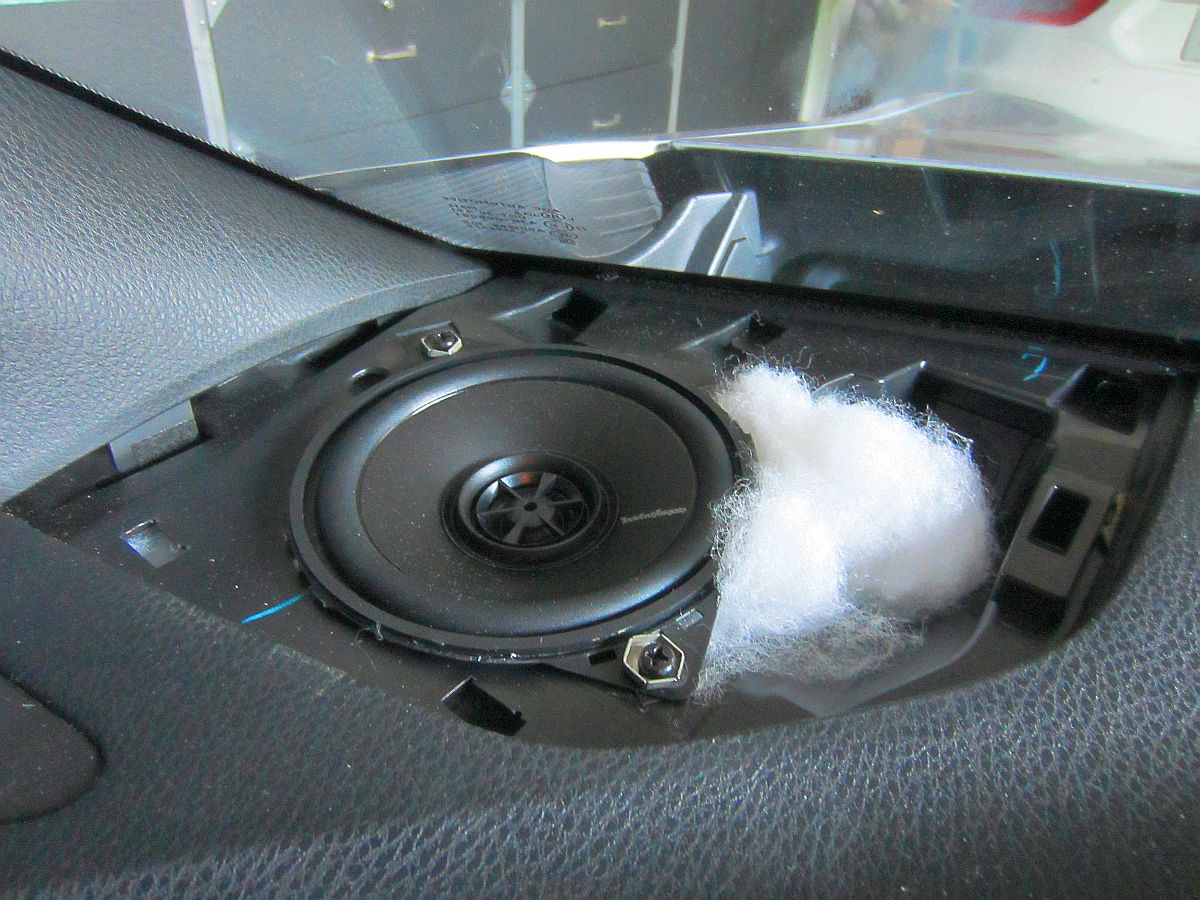

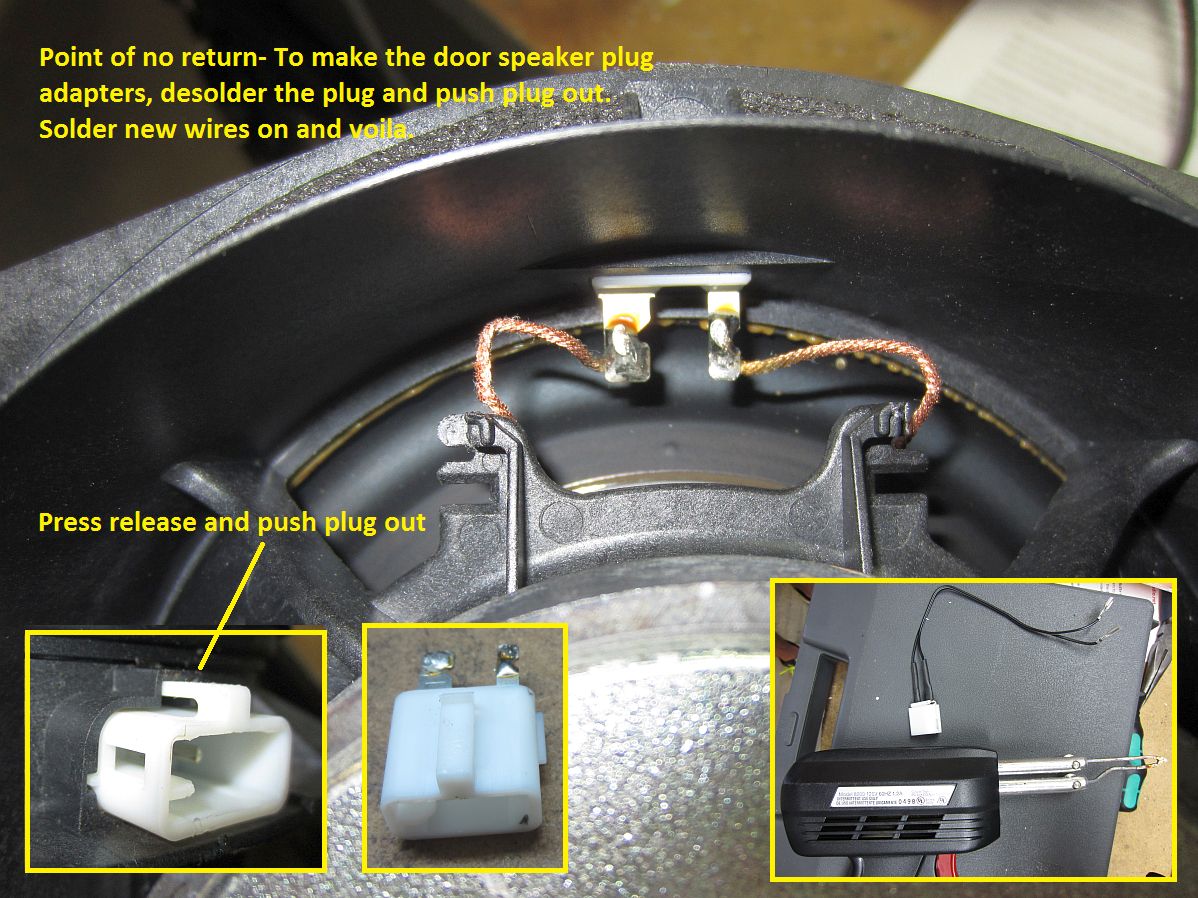

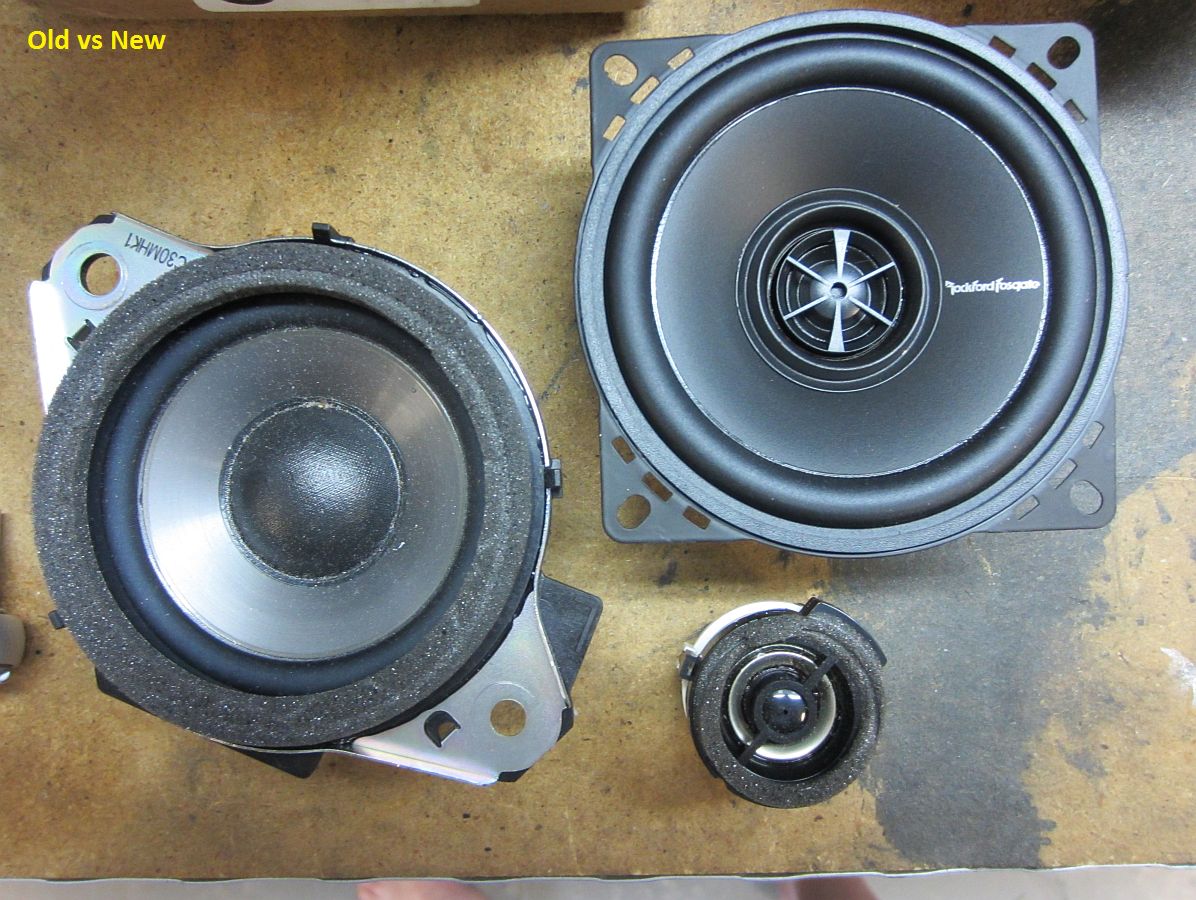

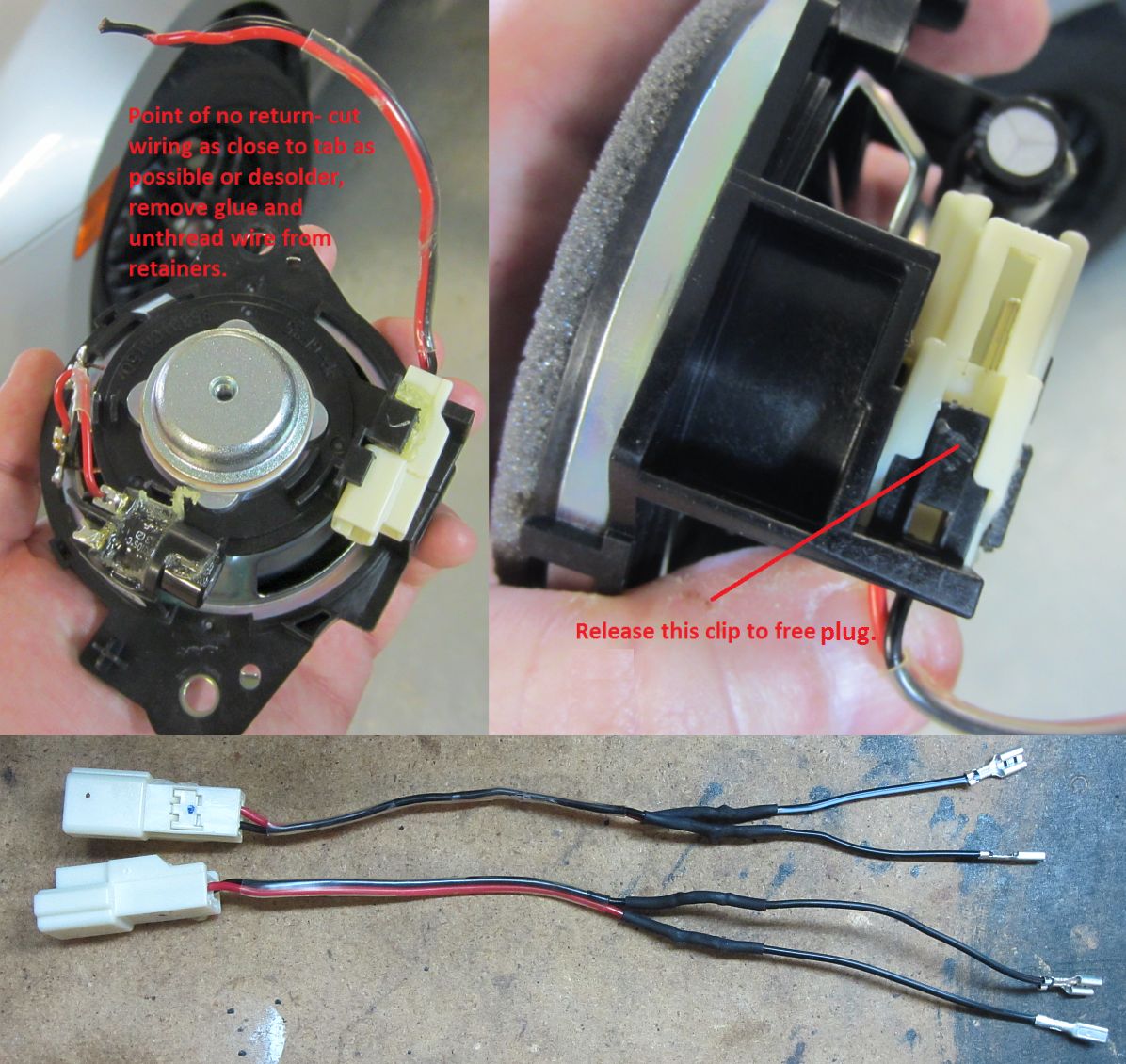

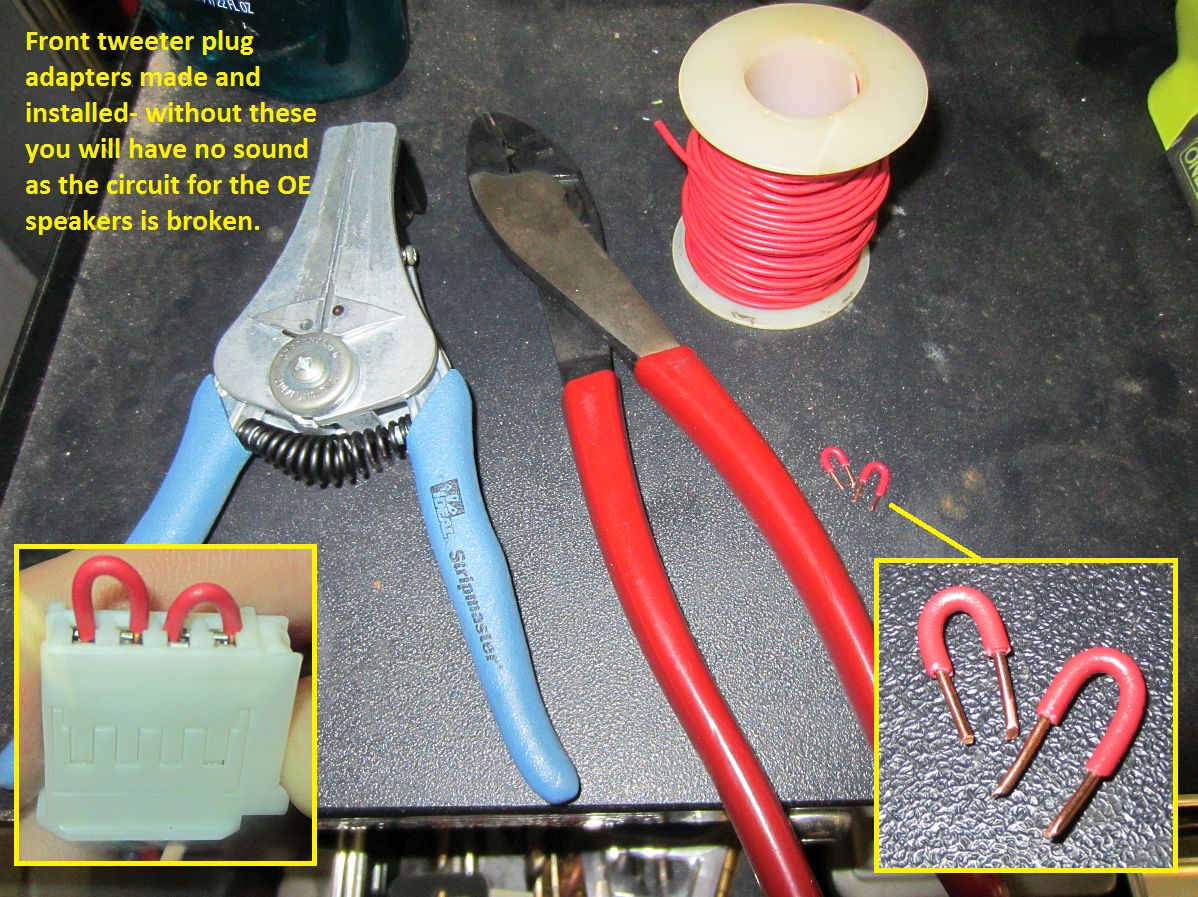

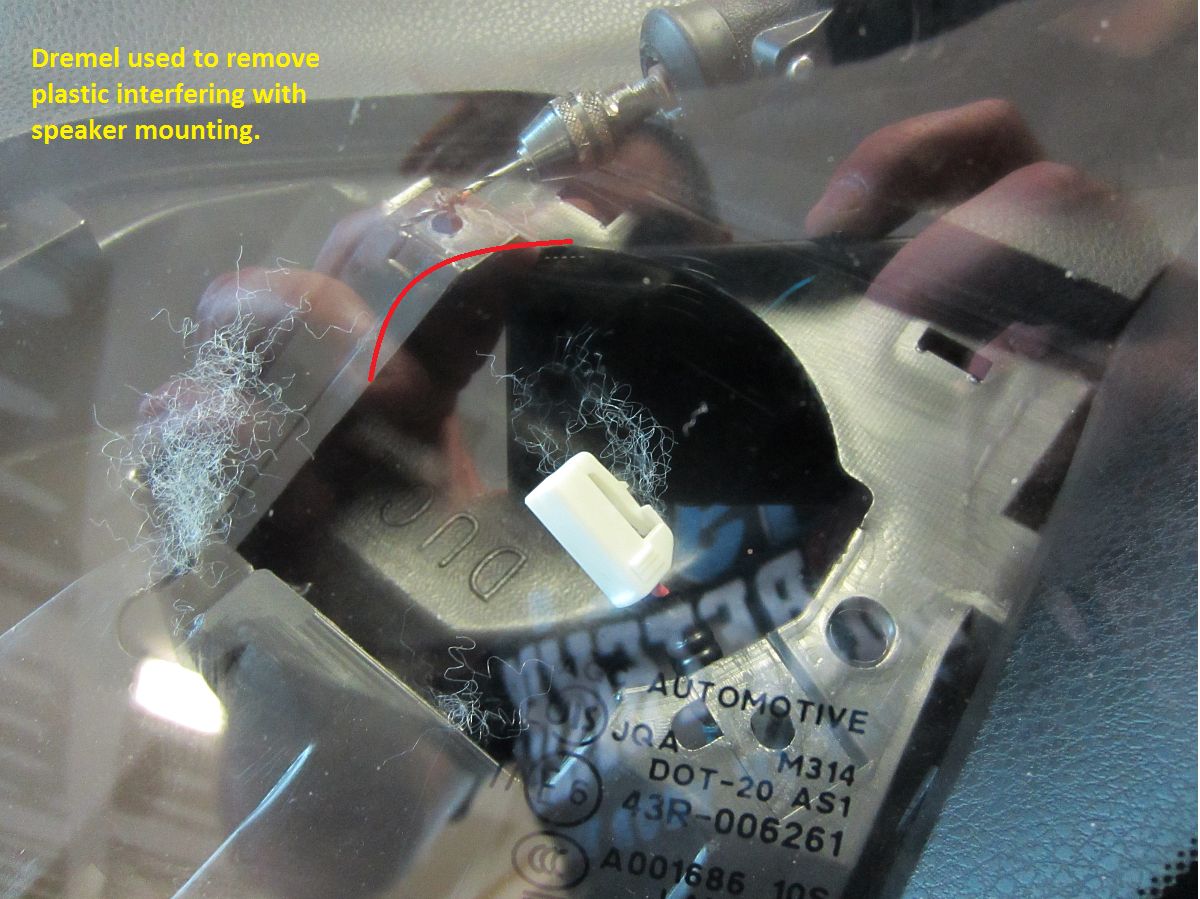

The front speakers chosen were co-axial 4" so the OE separate midrange and tweeter were removed and replaced with the single speaker. Plastic around the perimeter needed to be trimmed a bit with a Dremel for clearance and the speaker plug for the tweeter has to have some adapters made to complete the circuit- easy with some primary wire. The speaker plug for the OE midrange was removed and turned into an adapter for the new speakers. The door speakers chosen were coaxial 6.75" and we went with Patrick's PVC speaker adapters- installation instructions HERE. In addition to the #12 x 1 1/4" screws to mount the adapter to the door, we sourced some shorter screws to mount the speakers to the adapters. We also used the OE plug from the OE speaker to make adapters for these, see pics below for more detail.
Dash speaker upgrade offers the most bang for the buck, door speakers I might leave as is if we had it to do over since the OE speakers are 2-ohm and we did not replace the OE amplifier. Overall, nice upgrade for under $300.

[UPDATE] The RF P1 just couldn't take the abuse that this amplifier/box provided, so it was replaced with a Rockford Fosgate P3D4-10 (manual HERE).

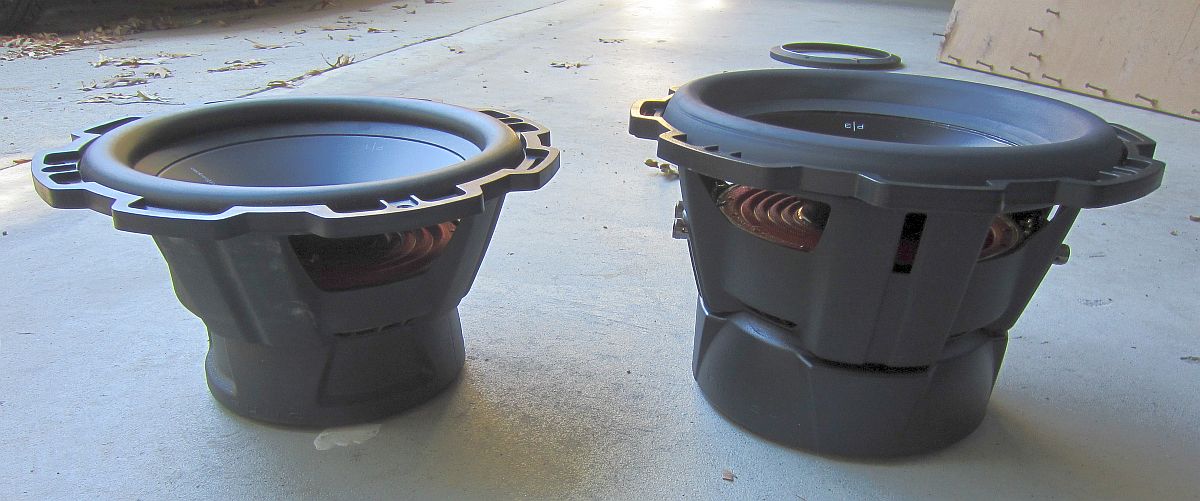

Subwoofer Update: the RF P3 in the band pass enclosure was reliable and generated high SPLs but at the expense of sound quality and trunk space.

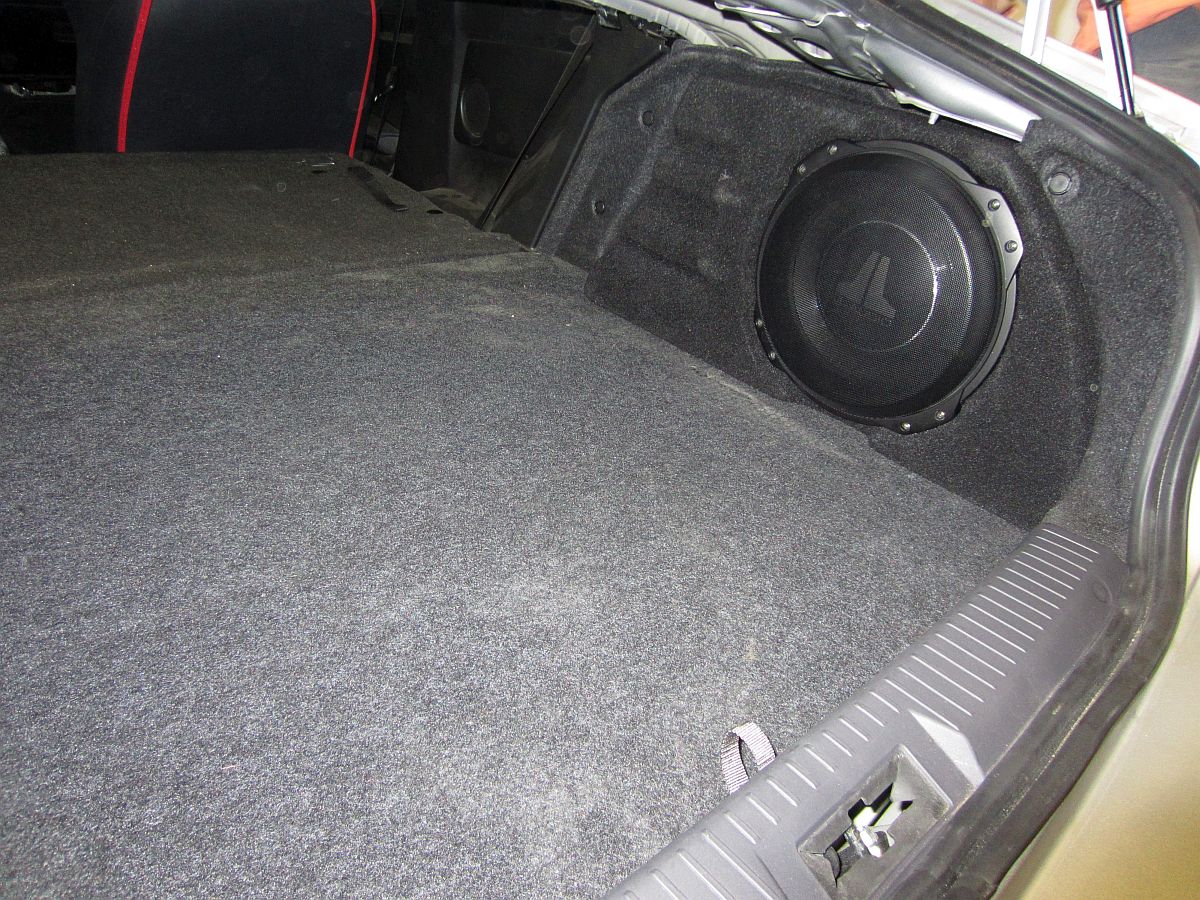

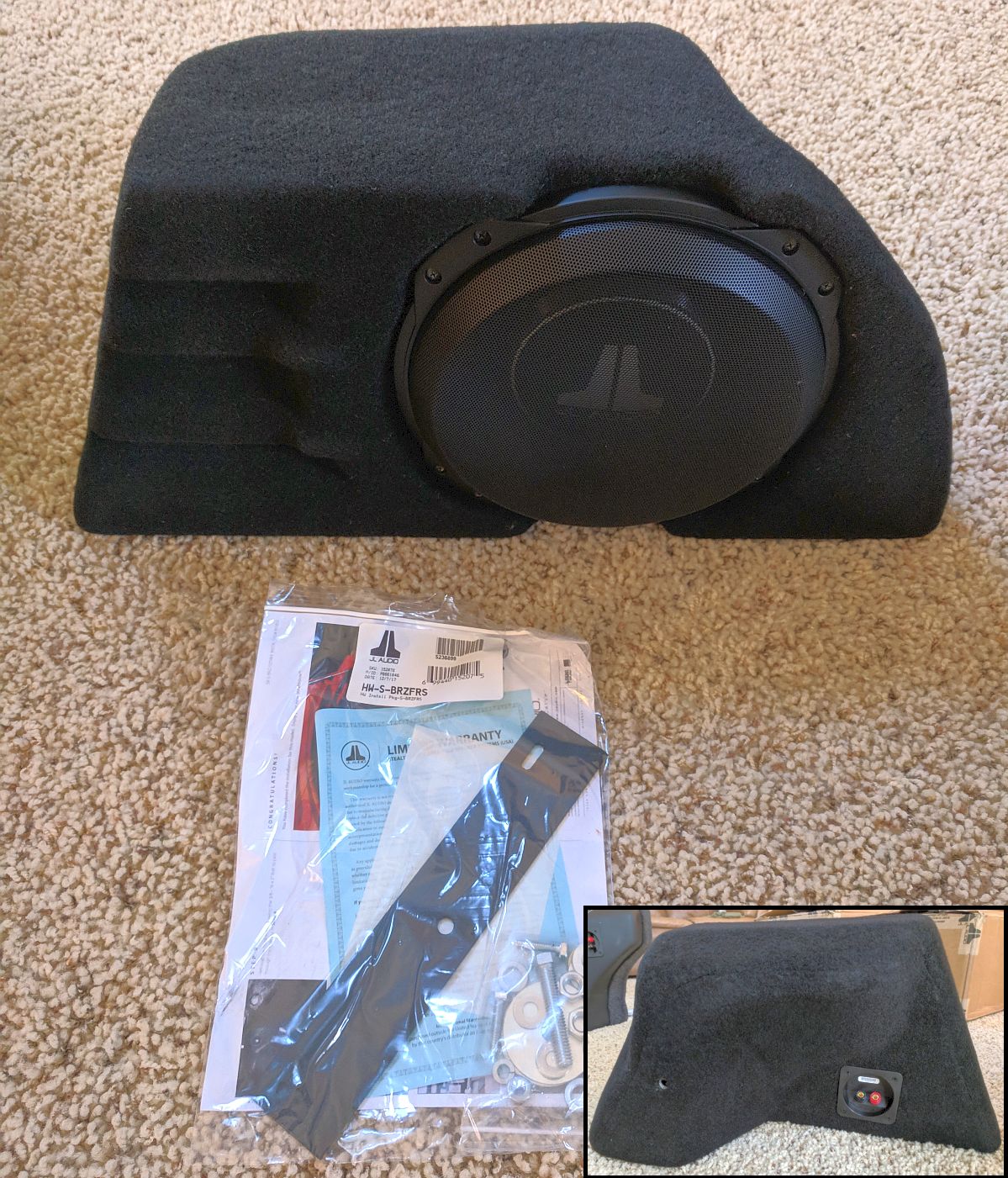

Deciding the trunk might be useful if not occupied by a huge sub enclosure, a JL Audio Stealthbox (installation instructions) was chosen as the replacement while retaining the Rockford Fosgate R500x1D. Some foam was cutout and the amp moved under the trunk floor, gains were tuned by voltmeter to approximate the 400 watt limit of the new JL Audio 10TW3-D4 (Manual)- MTX Video (MTX Test Tones Download), Sonic Electronix Video, Instructions from Sonic Electronix.

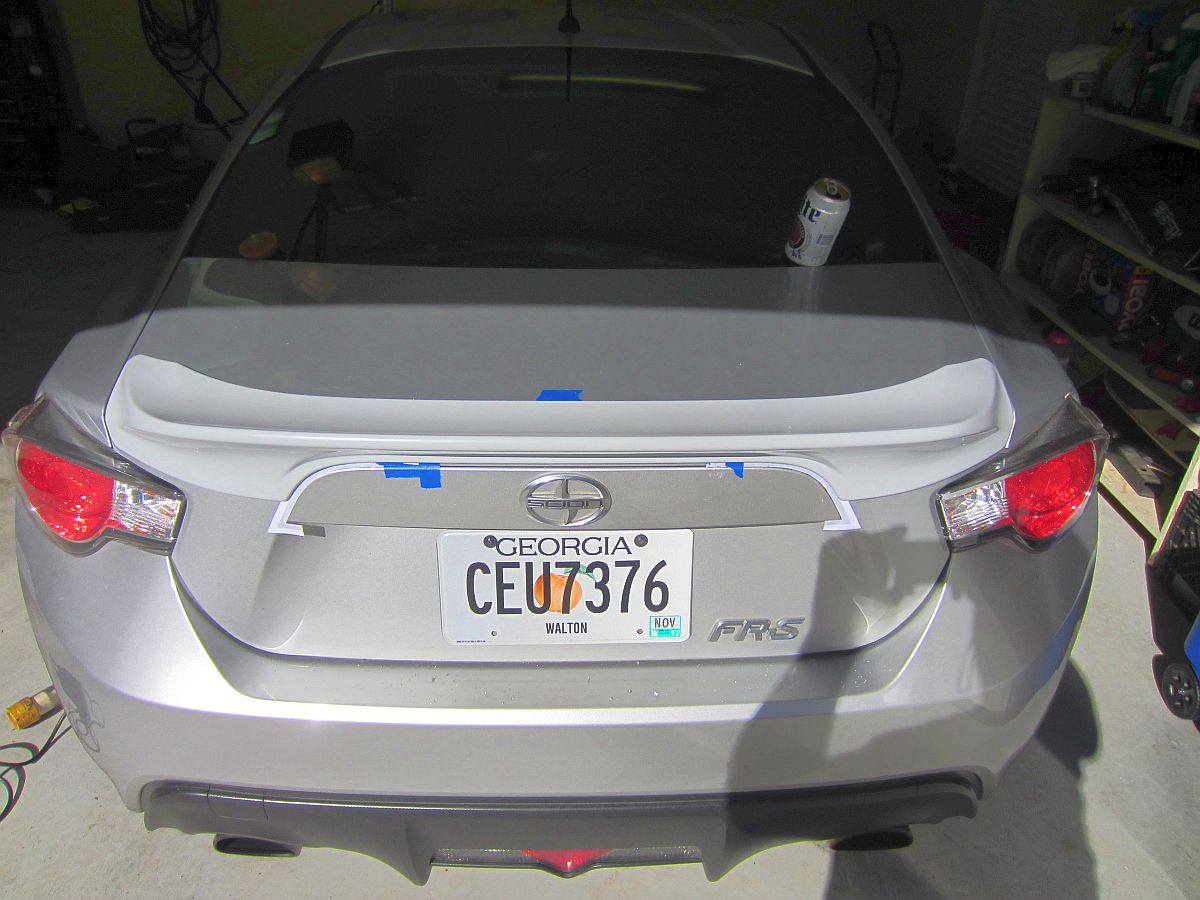

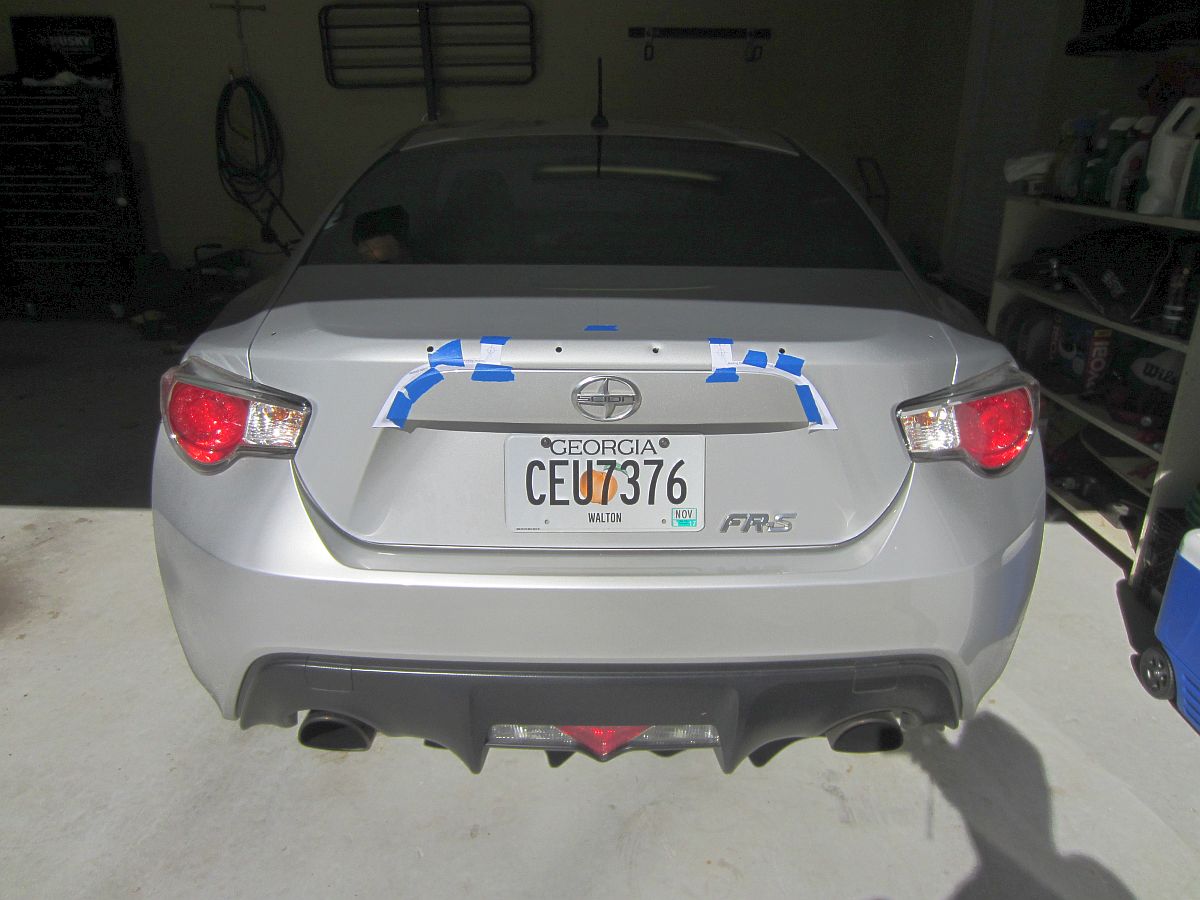

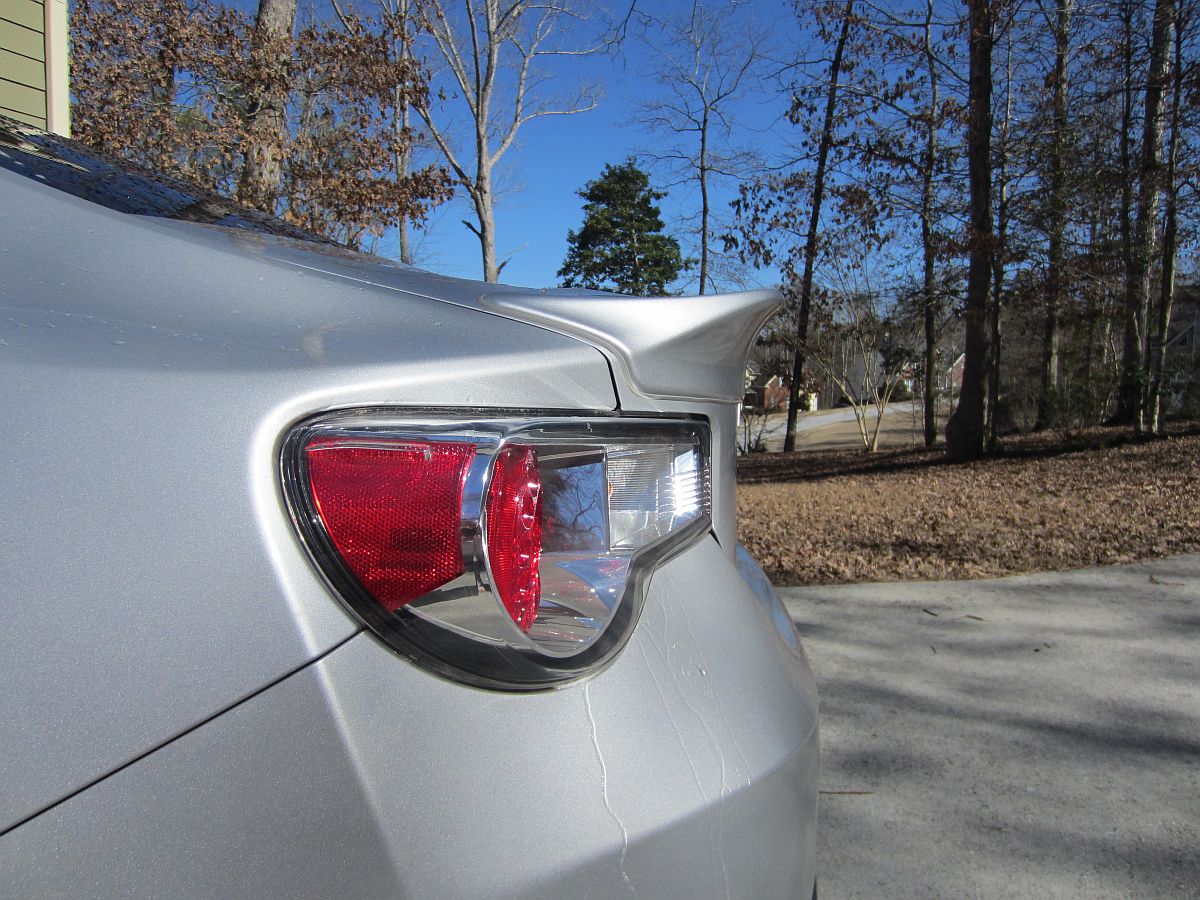

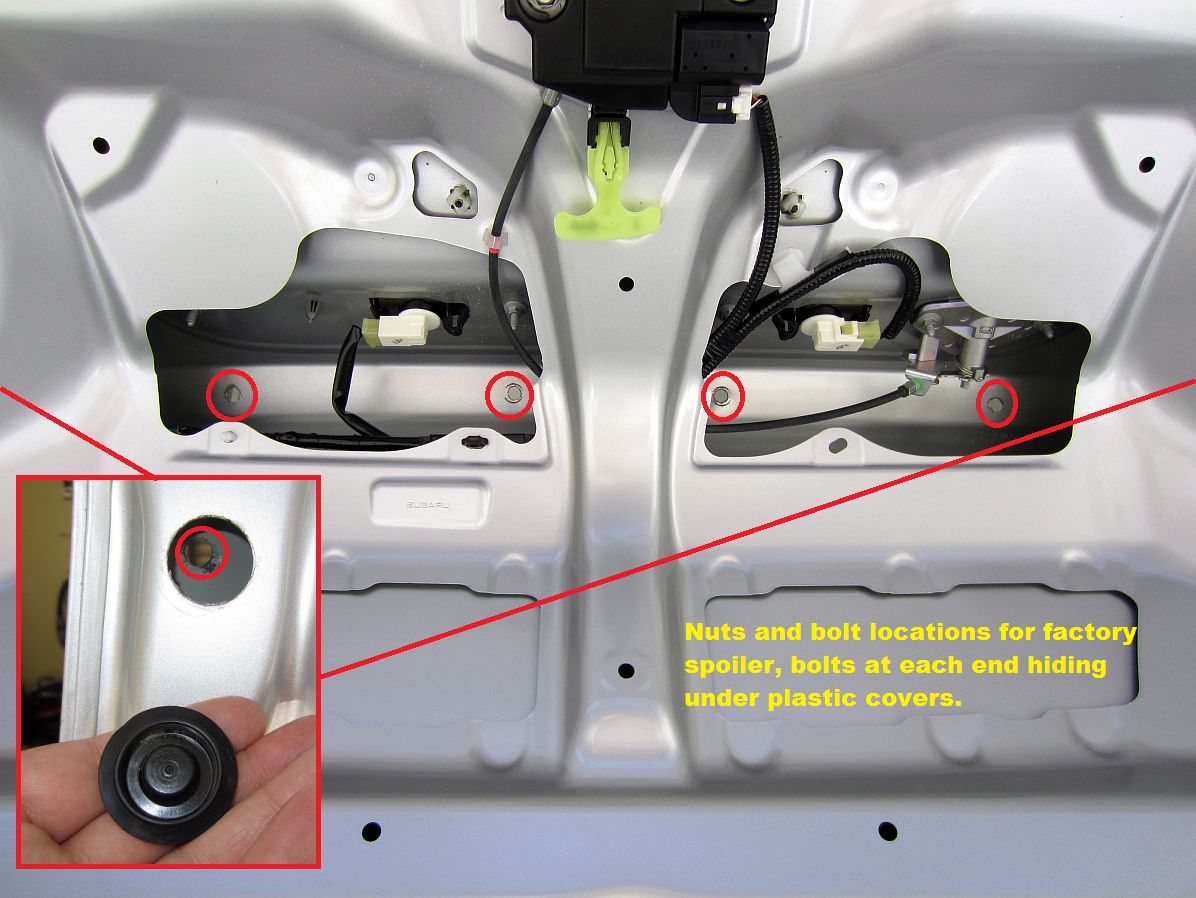

TRD Trunk Spoiler (P/N MS342-18002-00) from Black Hawk Japan replaces the OE trunk spoiler: Toyota GT86 Instructions, English Translation from Japanese version with Templates courtesy of My Hachi Roku GREAT DIY Guide.

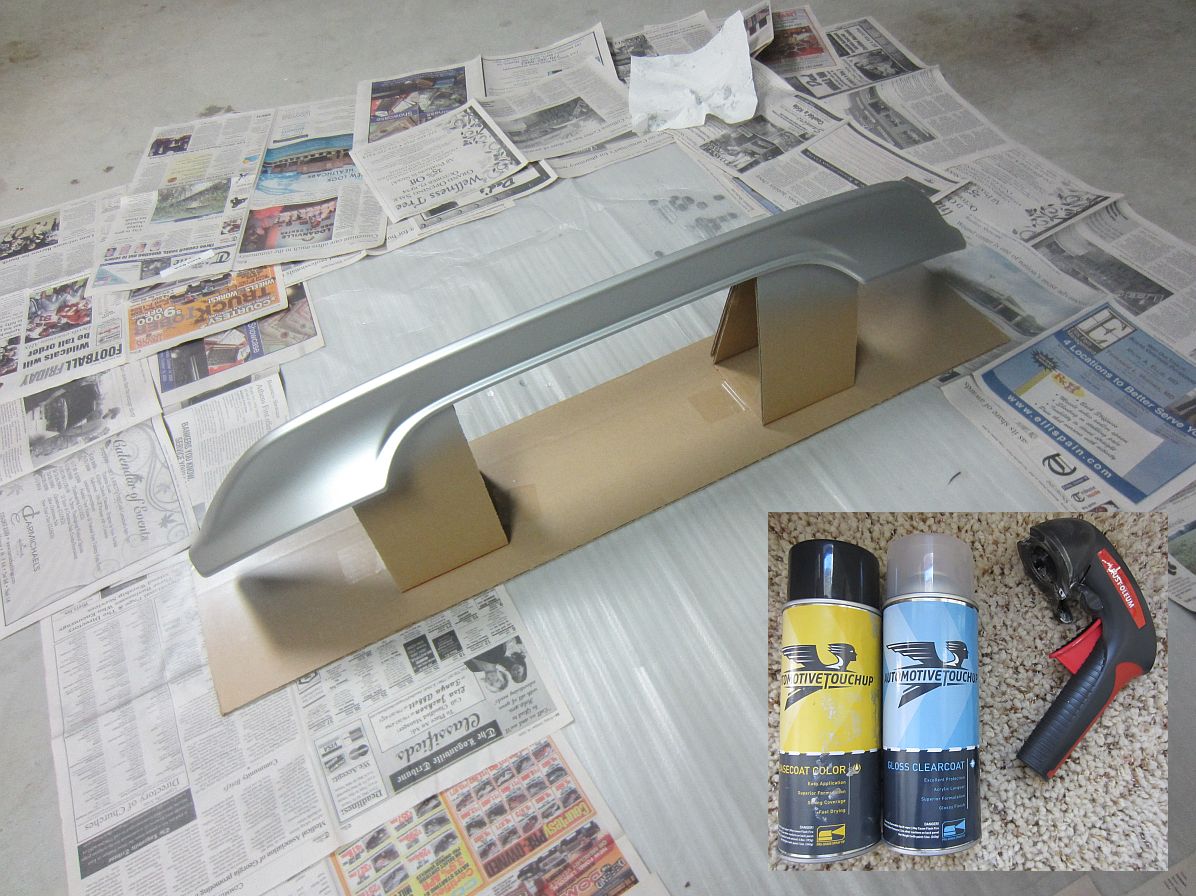

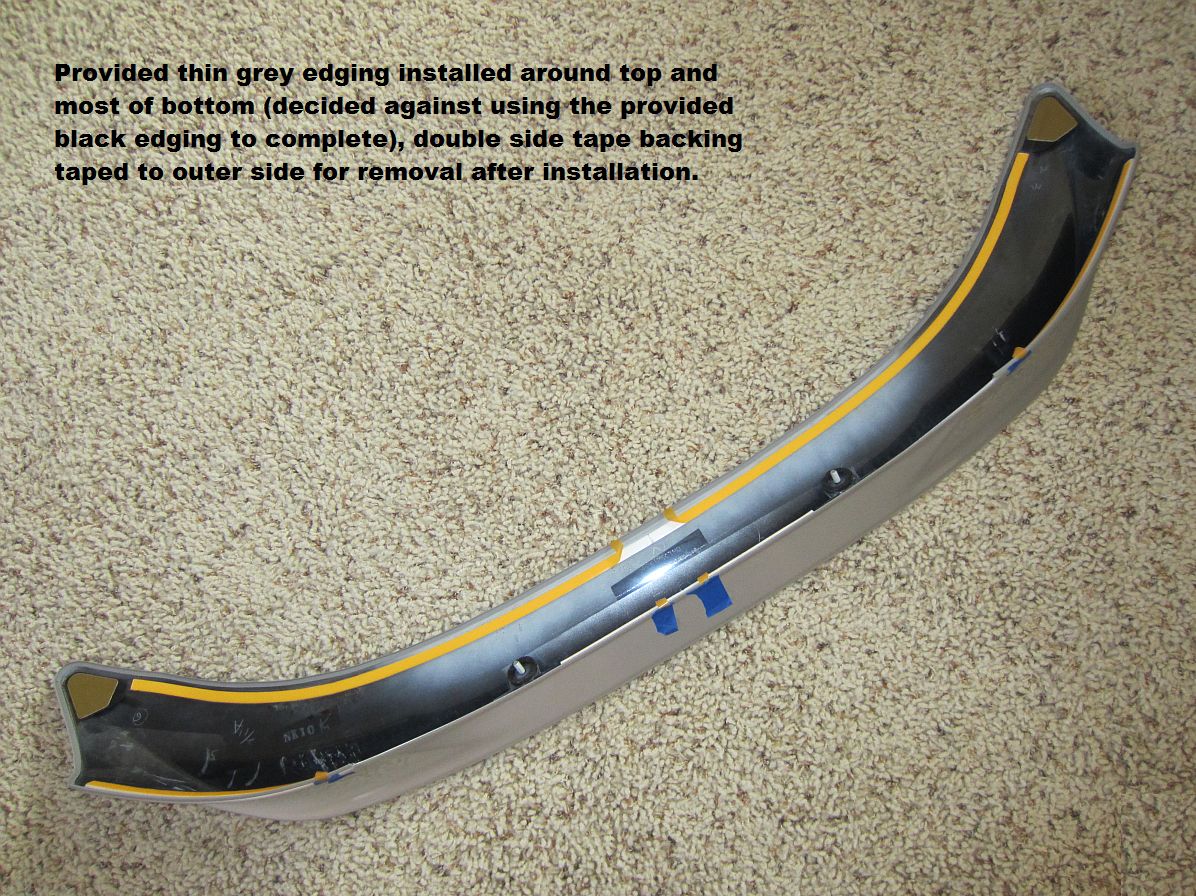

Since this spoiler came unpainted, matching paint was ordered from Automotive Touchup and used with a handle.....painted on the stand the spoiler ships on in the garage.

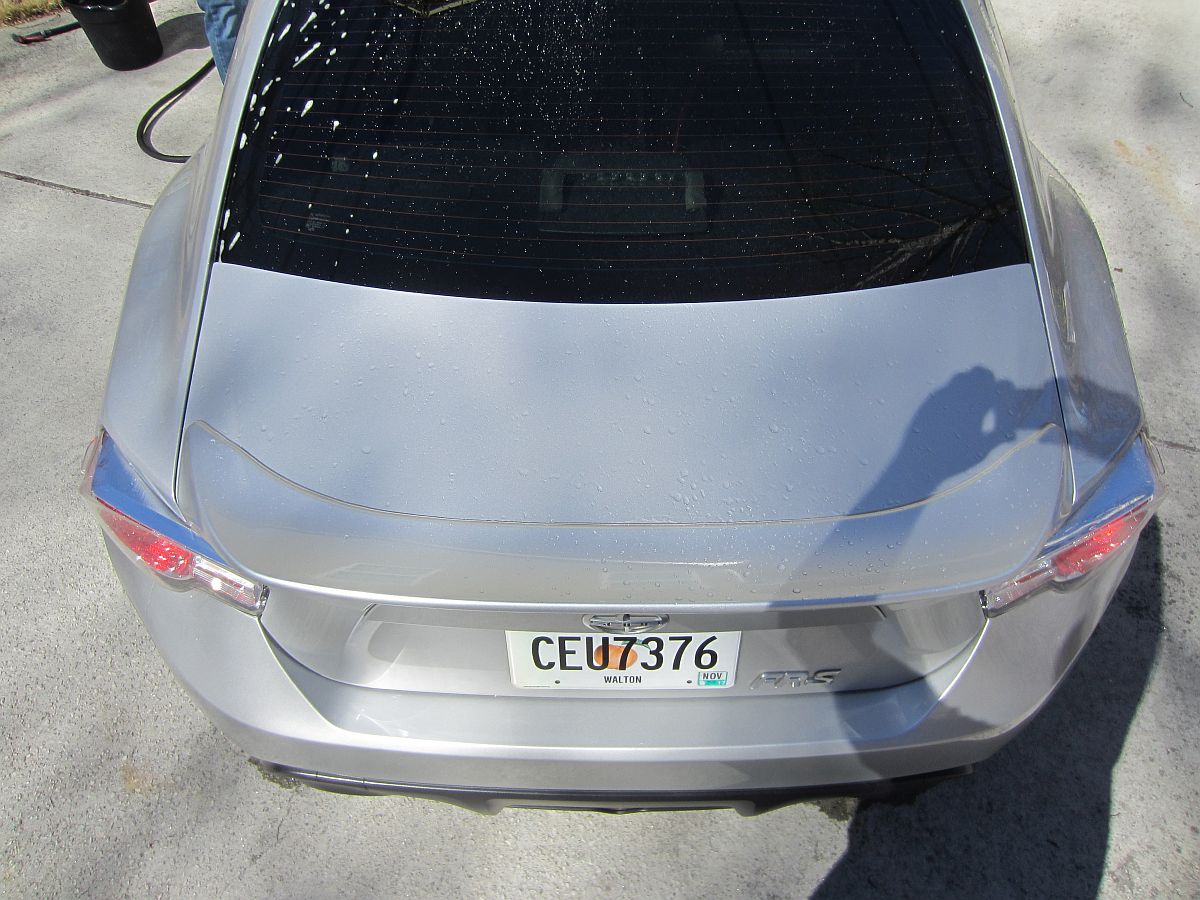

Turned out pretty good for a garage rattle can job, required some wetsanding and buffing.

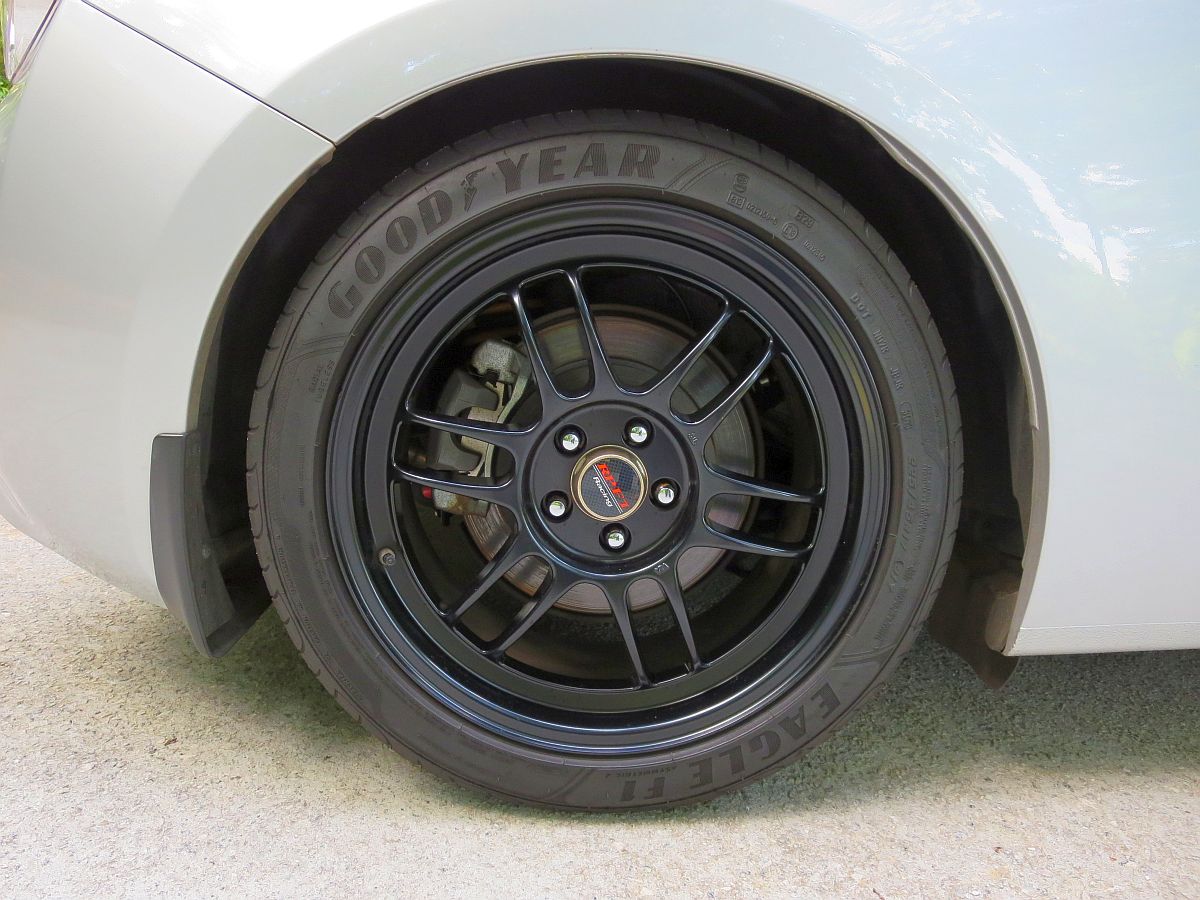

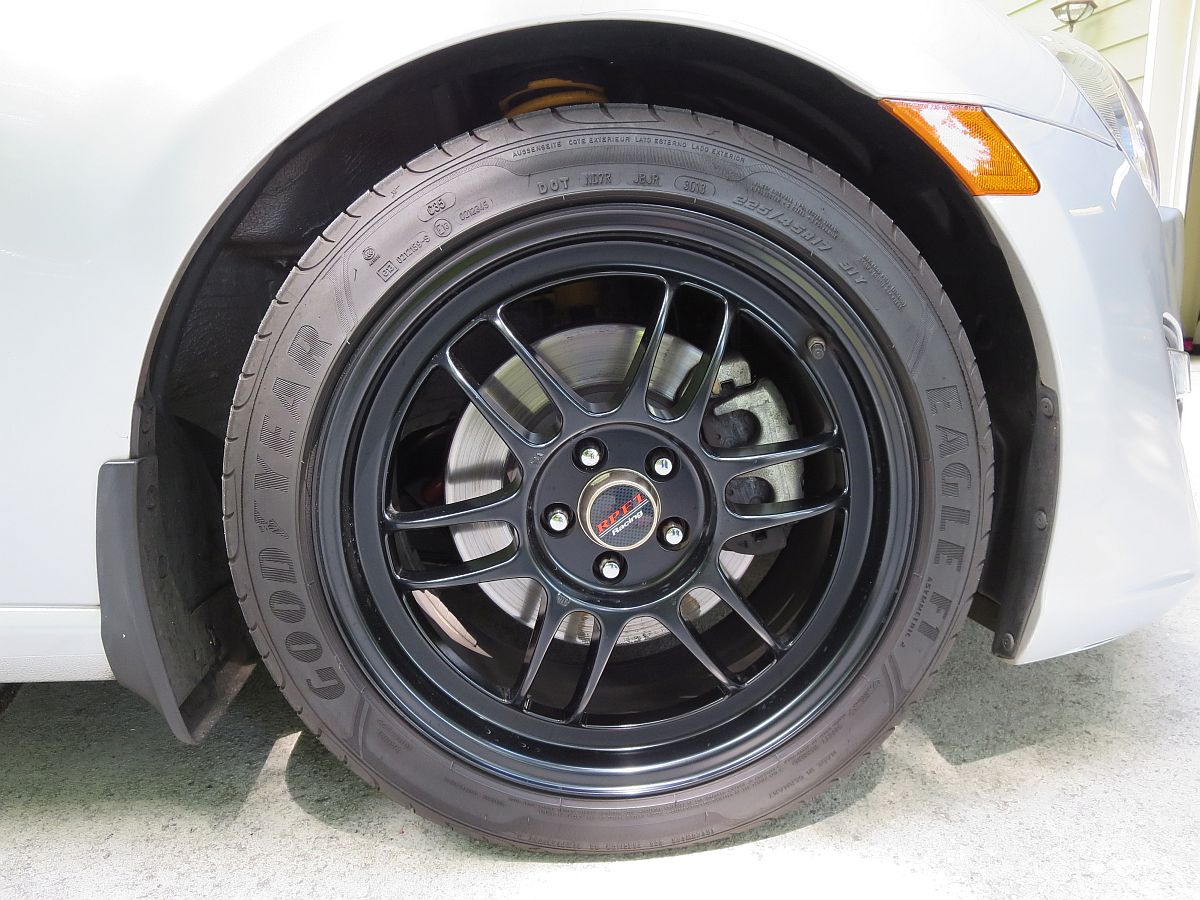

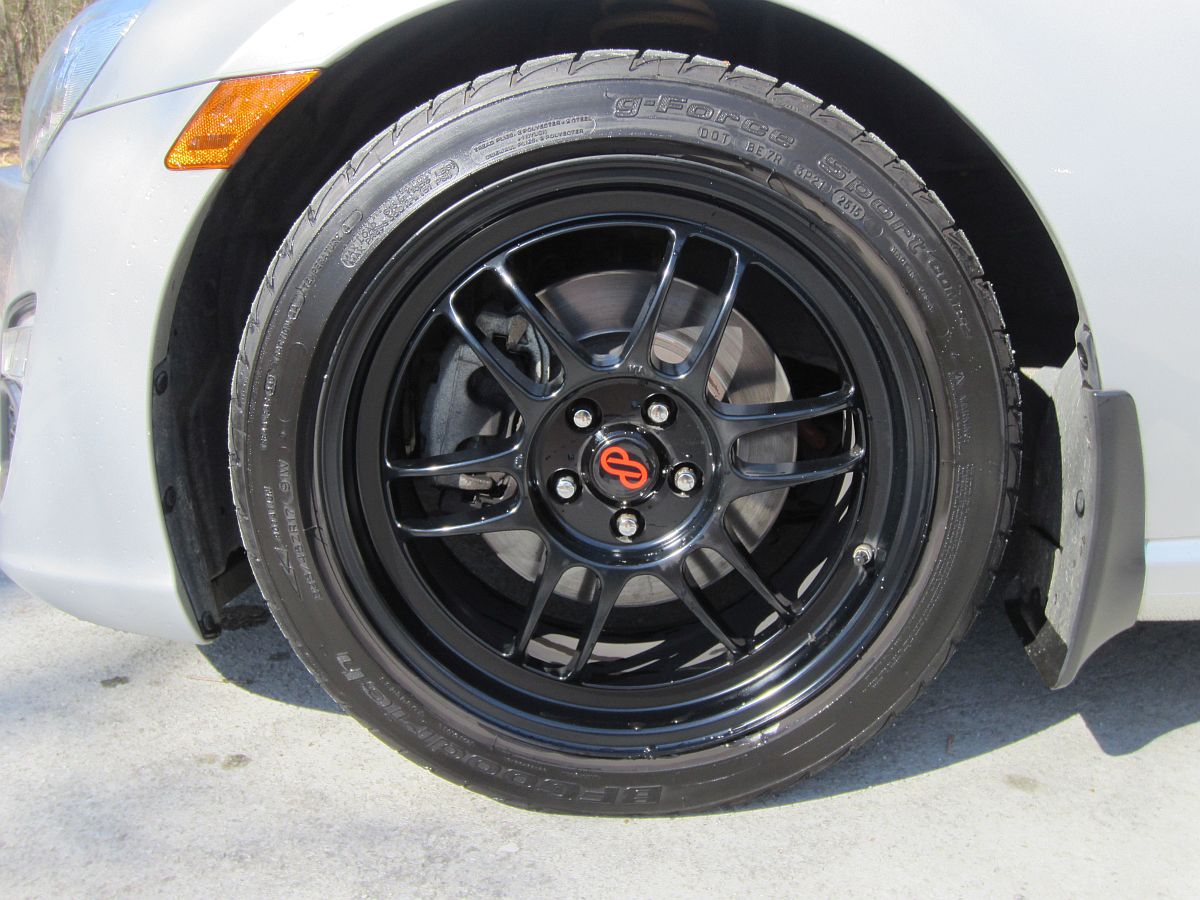

Replacement center caps for the RPF1s from FlatOut Graphics to replace the rusted Enkei center caps (PO might have used some agressive wheel cleaner to cause this, they were in bad shape when we bought the car). We opted for the black plastic caps with red emblem. They don't snap in completely flush but snap in far enough to look flush and don't come out when driving.

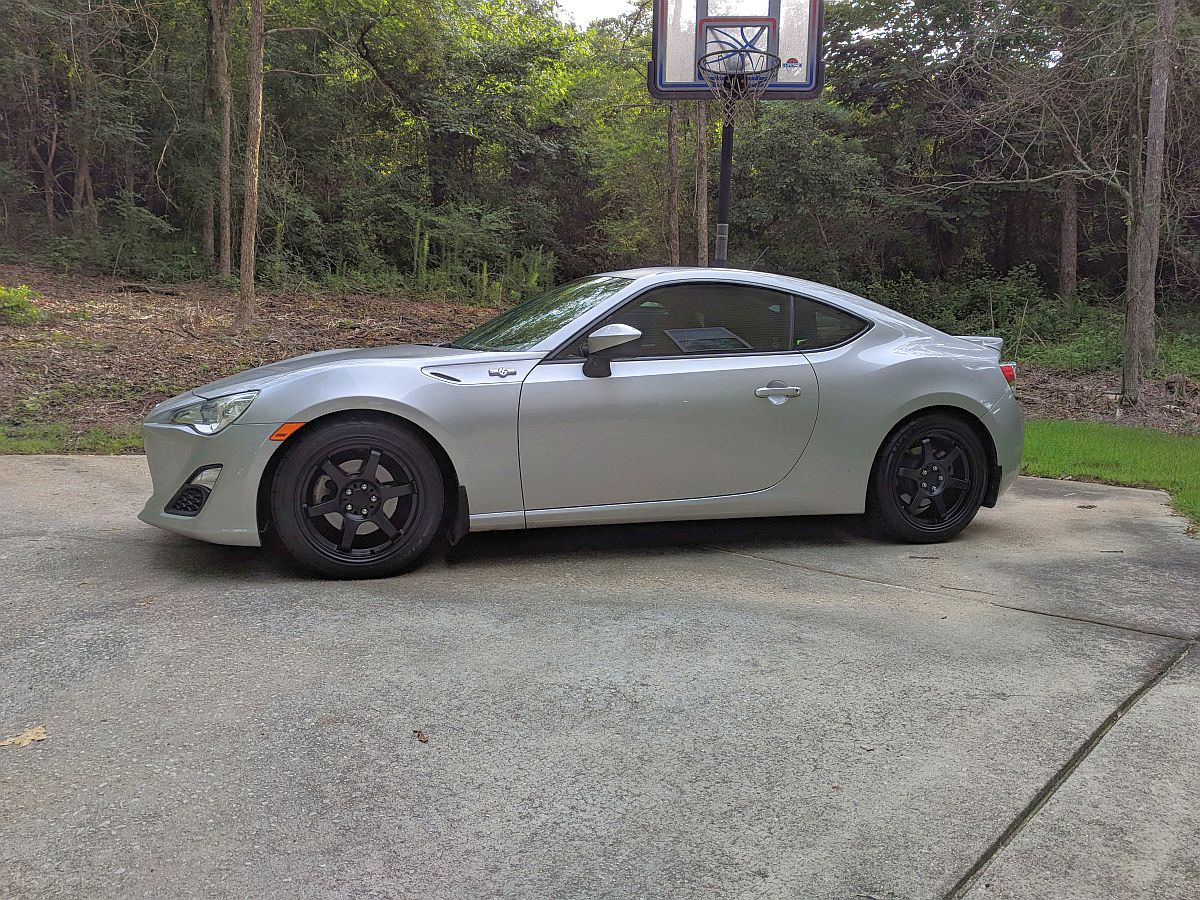

Decided on new wheels and tires from TireRack, TR Motorsports C4 (17x8, 45 offset) and Firestone FIREHAWK INDY 500 (225/45R17)- tire test HERE
(NOTE: IF you decide to order new TPMS sensors you have to request the sensor IDs at the time of order, you will need these to reprogram the TPMS in the car's ECU with Techstream.)

[UPDATE] This car was sold after almost reaching 70k miles.....and replaced with my FRS that we decided we no longer needed. Better to keep all of the mod $$$$ and effort in the family.
